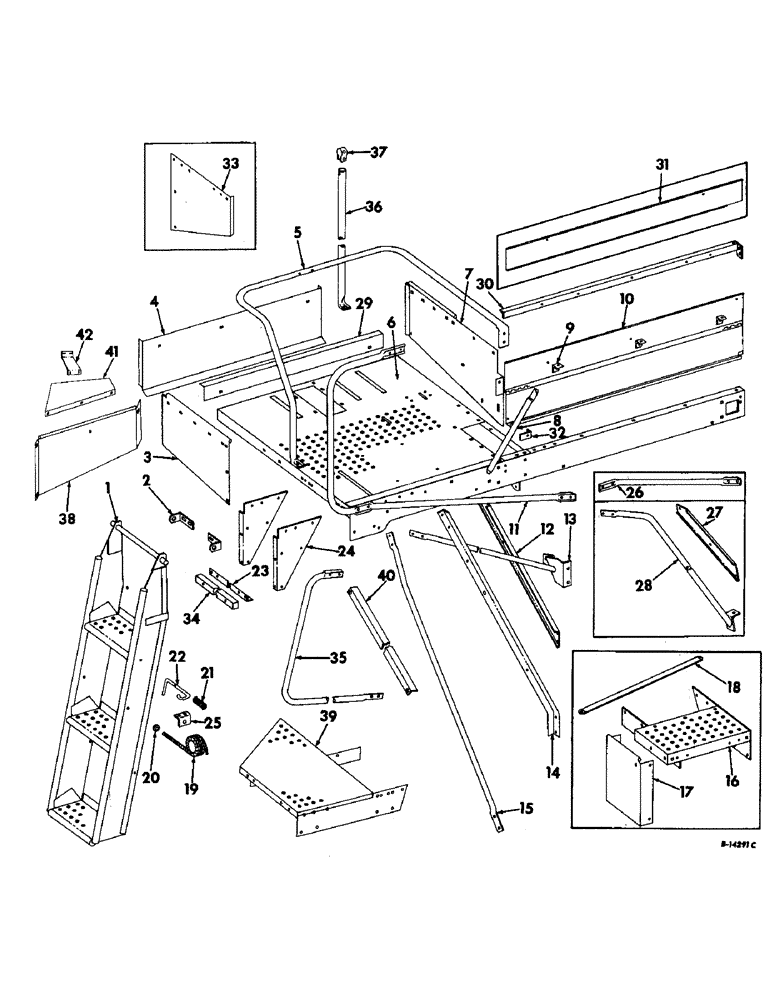

Запчасти Case IH 403 (096) - OPERATORS DECK AND LADDER, SERIAL NO. 7224 AND ABOVE (90) - PLATFORM, CAB, BODYWORK AND DECALS
№
Артикул
Название
Примечание
Количество
1
627726R92
LADDER ASSY, operators deck, Includes ref nos 21, 22, 25
1шт.
2
627730R1
SUPPORT
HANGER, ladder
2шт.
17426R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 X 1 MACH BOLT W/NUT
4шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
4шт.
Q1597
WASHER
13/32 X 3/4 X 16 GA WASHER
4шт.
3
939204R1
SHROUD, operators platform LH
1шт.
3
939639R11
SHROUD, operators platform LH, For machines with 28.1-26 main wheel tires, Not operators cab
1шт.
14986R1
5/16 X 1/2 CRG BOLT W/NUT
7шт.
4
939202R11
SHROUD ASSY, operators platform front
1шт.
1/4 C-Z NUT
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z WHIZ LOCK NUT
3шт.
433507
CHECK CONTROL
1/4 X 1/2 C-Z SLT PAN-HD SCREW
2шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 X 3/4 C-Z TRUSS-HD SCREW
3шт.
1/4 C-Z LOCK WASHER
2шт.
5
938887R1
RAIL, operators platform front, Not operators cab
1шт.
5
939640R1
RAIL, operators platform front, For machines with 28.1-26 main wheel tires, Not operators cab
1шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
3/8 X 1 C-Z CRG BOLT W/NUT
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 X 1 C-Z MACH BOLT W/NUT
2шт.
18779R1
BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2
3/8 X 1-1/2 C-Z MACH BOLT W/NUT
2шт.
120382R1
3/8 C-Z LOCK WASHER
5шт.
6
936532R91
PLATFORM ASSY, operators
1шт.
5/16 X 3/4 CRG BOLT W/NUT
6шт.
3/8 X 3/4 CRG BOLT W/NUT
1шт.
3/8 X 1 CRG BOLT W/NUT
2шт.
5/16 LOCK WASHER
6шт.
3/8 LOCK WASHER
3шт.
7
939203R1
SHROUD, operators platform RH, Not windrow special
1шт.
7
939244R1
SHROUD, operators platform RH, For windrow special
1шт.
5/16 X 3/4 CRG BOLT W/NUT
5шт.
3/8 X 1 CRG BOLT W/NUT
2шт.
5/16 LOCK WASHER
5шт.
3/8 LOCK WASHER
2шт.
Q5028
WASHER
15/32 X 1 X 11 GA WASHER
2шт.
8
629431R1
BRACE, operators deck upper
1шт.
9
631818R1
CLIP, opers PTF rear support cover
3шт.
5/16 X 1/2 MACH BOLT
3шт.
5/16 LOCK WASHER
3шт.
10
938889R91
COVER ASSY, operators platform rear support, Not windrow special
1шт.
10
939854R91
COVER ASSY, operators platform rear support, For windrow special
1шт.
11
939243R1
RAIL, operators platform rear, grain tank, Not operators cab or 23.1/18-26 tires, Serial no. 9956 and below, grain tank, Not operators cab, Serial, Serial Range: 9957-16129
1шт.
11
159279C1
RAIL, operators platform rear, grain tank, Not operators cab, Serial no. 16130 and above
1шт.
11
939662R1
RAIL, operators platform rear, grain tank, Not operators cab for 23.1/18-26 tires, Serial no. 9956 and below
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
5/16 X 3/4 C-Z CRG BOLT W/NUT
2шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
3/8 X 3/4 C-Z CRG BOLT W/NUT
2шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 X 1 C-Z MACH BOLT W/NUT
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
12
627825R1
SUPPORT, operators deck RH, Not windrow special, Not for grain machines w/grain tank serial no. 19528 and above
1шт.
12
170701C1
SUPPORT, deck right, For grain machines w/grain tank serial no. 19528 and above
1шт.
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
3/8 X 1 CRG BOLT W/NUT
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
13
627821R91
BRACE ASSY, operators to separator LH front post, Not for windrow special
1шт.
3/8 X 3/4 MACH BOLT W/NUT
3шт.
7/16 X 1-1/4 MACH BOLT W/NUT
2шт.
3/8 LOCK WASHER
3шт.
Q1597
WASHER
13/32 X 3/4 X 16 GA WASHER
1шт.
14
631775R1
SUPPORT, operators deck rear
1шт.
17428R1
BOLT,Hex, 1/2"-13 x 1", G2, Full Thd
1/2 X 1 MACH BOLT W/NUT
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
15
938886R1
SUPPORT, operators platform center
1шт.
88707
CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd
BOLT, CARRIAGE, , w/nut Short NK, 1/2"-13 x 1 1/4", G5, Full Thd
2шт.
17427R1
7/16 X 1 MACH BOLT W/NUT
2шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
16
569628R91
EXTENSION ASSY, operators deck, For 23.1/18-26 main wheel tires, Serial no. 9956 and below
1шт.
15007R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2
BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 1", G2
2шт.
17412R1
BOLT,Hex, 3/8" - 16 x 3/4", Gr 2
3/8 X 3/4 MACH BOLT W/NUT
7шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
7шт.
17
633742R11
SHROUD ASSY, operators deck extension, For 23.1/18-26 main wheel tires, Serial no. 9956 and below
1шт.
18
939670R1
BRACE, operators platform extension front rail, Not operators cab with 23.1/18-26 main wheel tires, Serial no. 9956 and below
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 X 1 C-Z MACH BOLT W/NUT
1шт.
18780R1
BOLT,Hex, 3/8"-16 x 1 3/4", G2
3/8 X 1-3/4 C-Z MACH BOLT W/NUT
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
2шт.
19
ROPE, lift, 3/8 dia x 8-ft long, procure locally
1шт.
20
552219R1
GROMMET
1шт.
21
140DS
SPRING
1шт.
22
936271R91
HOOK ASSY, operators deck ladder
1шт.
23
574488R1
BAR, bumper, Not operators cab
1шт.
23
156907C1
BAR, bumper, operators cab
1шт.
17411R1
BOLT,Hex, 5/16"-18 X 3/4", G2
5/16 X 3/4 MACH BOLT W/NUT
2шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 NUT
1шт.
NLS
NO LONGER SERVICED
5/16 X 1 SLT-FL-HD MACH SCREW
1шт.
24
574489R1
BRACKET, ladder
2шт.
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
3/8 X 1 CRG BOLT W/NUT
1шт.
17412R1
BOLT,Hex, 3/8" - 16 x 3/4", Gr 2
3/8 X 3/4 MACH BOLT W/NUT
4шт.
17426R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 X 1 MACH BOLT W/NUT
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
7шт.
25
654671R1
BRACKET, operators deck ladder latch
1шт.
14986R1
5/16 X 1/2 CRG BOLT W/NUT
2шт.
Q1597
WASHER
13/32 X 3/4 X 16 GA WASHER
3шт.
26
627826R1
BRACE, operators deck to separator cab, operators cab, Not for 23.1/18-26 tires, Serial no. 9956 and below, operators cab, Serial no., Serial Range: 9957-13062
1шт.
26
159278C1
BRACE, operators deck to separator cab, operators cab, Serial no. 13063 and above
1шт.
26
654004R1
BRACE, operators deck to separator cab, operators cab for 23.1/18-26 tires, Serial no. 9956 and below
1шт.
18508R1
CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd
3/8 X 3/4 C-Z CRG BOLT
2шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 X 1 C-Z MACH BOLT W/NUT
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, 3/8"
4шт.
27
634149R1
SUPPORT, operators deck RH, For windrow special
1шт.
80280503
CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd
3/8 X 1 CRG BOLT W/NUT
2шт.
103321
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
28
634655R91
BRACE ASSY, operators deck to axle support, windrow special
1шт.
17447R1
BOLT
7/16 X 1-1/4 MACH BOLT W/NUT
2шт.
17448R1
BOLT (SPREADER)
1/2 X 1-1/4 MACH BOLT W/NUT
1шт.
103322
LOCK WASHER,7/16"
WASHER, LOCK, 7/16"
2шт.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
1шт.
29
939205R1
ANGLE, operators platform front shroud top
1шт.
30
938763R91
ANGLE ASSY, operators platform rear support, Serial no. 13062 and below
1шт.
30
155164C1
ANGLE, operator platform rear support cover, Serial no. 13063 and above
1шт.
133094
BRACKET
5/16 X 3/4 C-Z SLTD-RD-HD MACH SCREW
5шт.
120376
NUT,5/16"-18, G5
5шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
5шт.
31
NOT USED
1шт.
32
584831R1
ANGLE, operators platform cover strip latch
1шт.
5/16 C-Z HEX NUT
2шт.
133094
BRACKET
5/16 X 3/4 C-Z SLT-RD-HD MACH SCREW
1шт.
33
150197C1
SHEET, deck shroud filler, For machines w/23.1-26 main wheel tires
1шт.
34
152226C1
BOARD, operators platform ladder spacer, Serial no. 9957 and above
1шт.
5/16 X 1-1/2 CRG BOLT W/NUT
2шт.
5/16 LOCK WASHER
2шт.
35
939641R11
RAIL ASSY, operator platform rear, For machines with 28.1-26 main wheel tires, Not operators cab
1шт.
5/16 X 3/4 CRG BOLT
2шт.
3/8 X 2 HEX-HD MACH BOLT
2шт.
5/16 HEX. NUT
2шт.
3/8 HEX. NUT
2шт.
5/16 LOCK WASHER
2шт.
3/8 LOCK WASHER
2шт.
36
631421R1
BRACE, deck front rail, For machines with 28.1-26 main wheel tires, Not operators cab
1шт.
3/8 X 1 CRG BOLT
1шт.
3/8 HEX. NUT
1шт.
3/8 LOCK WASHER
1шт.
37
569740R1
CLIP, operators deck front rail brace, For machines with 28.1-26 main wheel tires, Not operators cab
1шт.
1/4 X 1-1/2 C-Z HEX-HD MACH BOLT
1шт.
1/4 C-Z HEX. NUT
1шт.
1/4 C-Z LOCK WASHER
1шт.
38
631467R11
SHROUD ASSY, operator platform left front, For use w/28.1-26 main wheels
1шт.
14986R1
BOLT, 5/16 x 1/2 sq-nk crg
1шт.
14994R1
CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2
BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2
4шт.
9635082
NUT,5/16" - 18, Gr 5
5/16 hex
5шт.
39
628270R91
EXTENSION ASSY, deck, For use w/28.1-26 main wheels
1шт.
3/8 X 3/4 HEX-HD BOLT
6шт.
3/8 HEX. NUT
6шт.
3/8 LOCK WASHER
6шт.
40
155019C1
ANGLE, operator platform extn support, For use w/28.1-26 main wheels
1шт.
5/16 X 3/4 HEX-HD MACH BOLT
1шт.
3/8 X 1 HEX-HD MACH BOLT
1шт.
5/16 HEX. NUT
1шт.
3/8 HEX. NUT
1шт.
5/16 LOCK WASHER
1шт.
3/8 LOCK WASHER
1шт.
41
161422C91
PLATE ASSY, operators platform extension, For use w/operator cab serial no. 16130 and above
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg
5шт.
120376
NUT,5/16"-18, G5
5шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
5шт.
42
161425C1
BRACKET, door stop support, For use w/operators cab serial no. 16130 and above
1шт.
Выбрано товаров: 158
