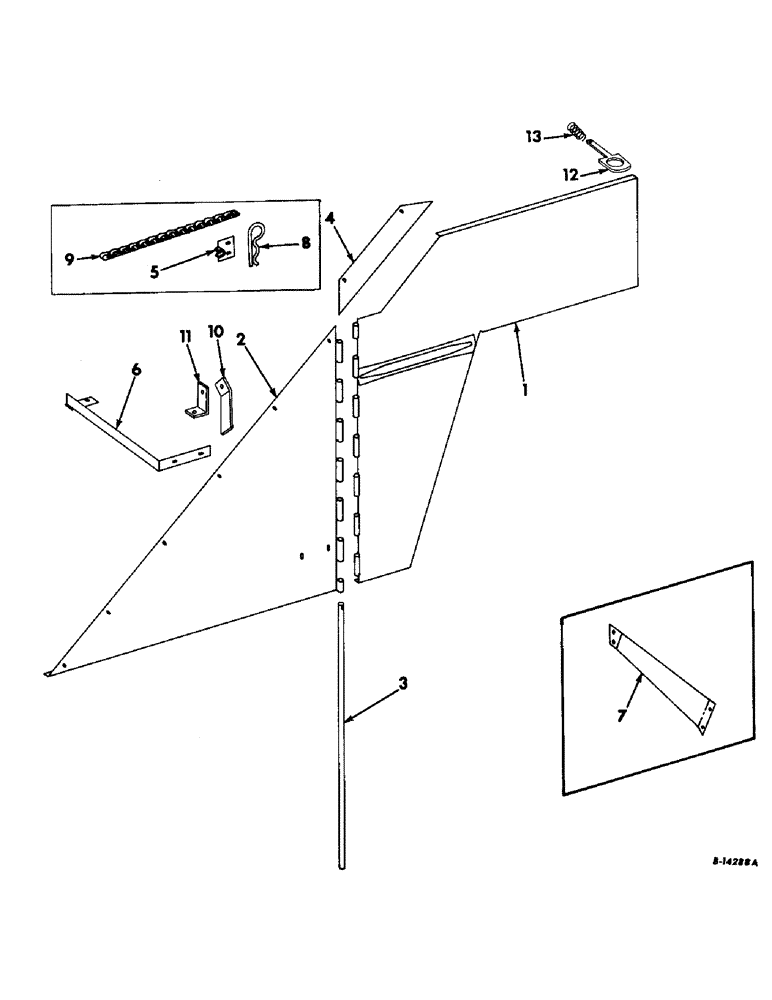

Запчасти Case IH 403 (056) - SEPARATOR SHIELDS, RH, SERIAL NO. 7224 AND ABOVE (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

155187C91

SHIELD ASSY, separator RH front, Not for machines w/tracks

1шт.

1

155186C91

SHIELD ASSY, separator RH front, For machines w/tracks

1шт.

2

938798R91

SHIELD ASSY, separator RH rear, Not for machines w/tracks

1шт.

2

153674C91

SHIELD ASSY, separator RH rear, For machines w/tracks

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz-lock

8шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z truss-hd whix-lock

6шт.

135270

SERRATED SCREW,5/16" - 18 x 3/4"

5/16 x 3/4 C-Z truss-hd whiz-lock

2шт.

3

938792R1

ROD, separator RH shield hinge, Not for machines w/tracks

1шт.

3

153670C1

ROD, separator RH shield hinge, For machines w/tracks

1шт.

PIN, 1/8 x 3/4 cotter

1шт.

4

938773R1

SHIELD, separator RH upper

1шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz-lock

1шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z truss-hd whiz-lock

1шт.

5

938800R91

LATCH ASSY, separator RH shield, gasoline or diesel w/bagger, gasoline or diesel w/bagger and w/tracks

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

6

938803R91

ANGLE ASSY, separator RH shield, gasoline or diesel w/grain hopper, LP gas, gasoline or diesel w/bagger, gasoline or diesel w/grain hopper and w/hydrostatic ground drive, LP gas w/hydrostatic ground drive

1шт.

6

153673C1

ANGLE ASSY, separator RH shield, gasoline or diesel w/grain hopper and w/tracks, gasoline or diesel w/bagger and w/tracks, gasoline or diesel w/grain hopper w/tracks and w/hydrostatic ground drive

1шт.

18794R1

BOLT,Hex, 7/16" - 14 x 1", Gr 2

7/16 x 1 C-Z mach

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

7

NOT USED

1шт.

8

153528C1

COTTER PIN

shield retainer quick attachable, gasoline or diesel w/bagger, gasoline or diesel w/bagger and w/tracks

1шт.

9

CHAIN ASSY, shield retainer pin, no. 45 SASH, 14 links

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

10

150558C1

BRACE, separator RH shield

1шт.

11

150559C1

ANGLE, separator RH shield

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

1шт.

7500032

BUSHING

NUT, 5/16 C-Z wing

1шт.

12

454502R1

LATCH

separator shield

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

615034R1

WASHER, 3/8 x 1 x 16 ga

1шт.

13

M296

SPRING

separator shield latch

1шт.
