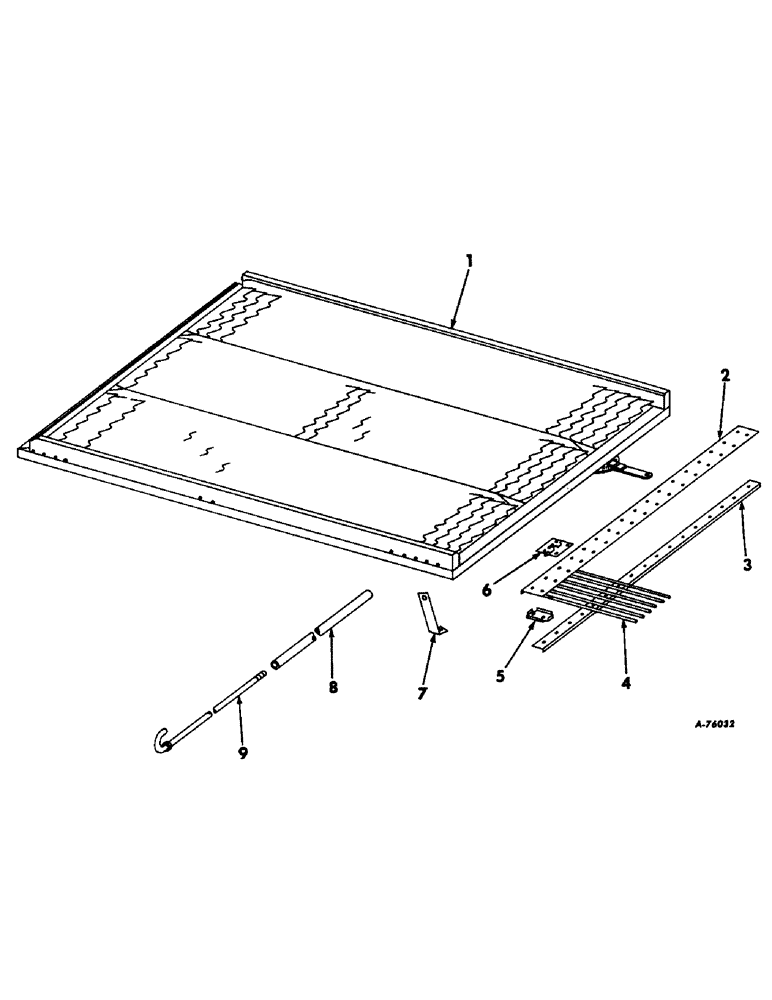

Запчасти Case IH 403 (318) - GROUND EAR CORN FEED, CHAFFER SIEVE AND EXTENSION (88) - ACCESSORIES

1

936257R91

SPARE PART

SIEVE ASSY, corn slat, 1-5/8, Serial no. 9956 and below

1шт.

1

155606C91

SIEVE ASSY, chaffer 3/4 perforated, Serial no. 9957 and above

1шт.

2

936382R1

REINFORCEMENT, finger support upper

1шт.

1/4 X 3/4 C-Z CRG BOLT W/NUT

1шт.

1/4 C-Z NUT

1шт.

453059

1/4 X 3/4 C-Z SLT-PAN-HD MACH SCREW

1шт.

1/4 C-Z LOCK WASHER

1шт.

3

936385R1

REINFORCEMENT, finger support lower

1шт.

4

936387R1

FINGER, chaffer extension

23шт.

5

632690R1

CLAMP, finger

23шт.

6

936390R91

HINGE, chaffer extension

3шт.

1/4 C-Z NUT

1шт.

453059

1/4 X 1 C-Z SLT-PAN-HD MACH SCREW

3шт.

1/4 C-Z LOCK WASHER

1шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

1шт.

7

936388R1

BRACKET, chaffer extension hanger LH

1шт.

7

936389R1

BRACKET, chaffer extension hanger RH

1шт.

8

NOT USED

1шт.

9

NOT USED

1шт.
