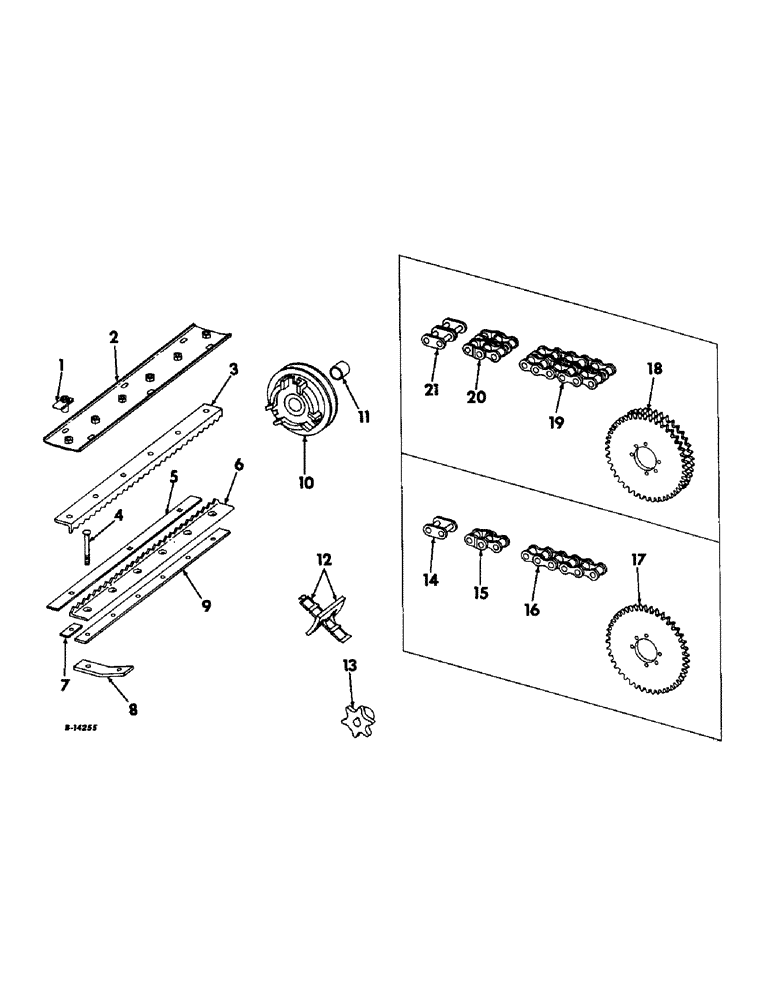

Запчасти Case IH 403 (316) - GROUND EAR CORN FEED, SERIAL NO. 2196 TO 9956 (88) - ACCESSORIES

1

936379R91

ANCHOR W/SPACER, cylinder filler bar, 64 used

64шт.

2

936377R21

BAR W/NUT, cyinder filler

8шт.

1/2-20NF X 2-1/4 HEX-HD CAP SCREW

1шт.

1/2 LOCK WASHER

1шт.

11002VA

WASHER

17/32 X 7/8 X 16 GA WASHER

1шт.

3

936374R1

ANGLE, saw tooth cylinder

8шт.

871570R1

BOLT

7/16 X 1 HEX-HD CAP SCREW W/NYLON PELLET INSERT

64шт.

7/16 LOCK WASHER

1шт.

4

936018R1

BOLT, saw tooth concave angle

16шт.

18526R1

LOCK NUT,7/16"-14, GB

7/16 ESNA STOP NUT

1шт.

5

654923R1

STRAP, concave filler

3шт.

3/8 X 1 CRG BOLT W/NUT

9шт.

3/8 LOCK WASHER

1шт.

3587H

13/32 X 9/16 X 16 GA WASHER

1шт.

6

936367R1

ANGLE SAW TOOTH

2шт.

7

585209R1

WASHER, concave filler strap

9шт.

8

936372R1

BRACE, saw tooth concave angle

8шт.

9

936370R1

STRAP, saw tooth concave angle tie

2шт.

10

936394R1

PULLEY, elevator drive slip clutch

1шт.

11

627736R1

BUSHING

elevator drive slip clutch pulley

1шт.

12

936301R91

CHAIN W/FLIGHTS, tailings elevator, Consists of

1шт.

936303R91

FLIGHT W/ATTACHING LINK

1шт.

62

LINK ASSY.

LINK, plain, steel

1шт.

62SD1

LINK ASSY.

LINK, attaching, steel

1шт.

13

629193R1

SPROCKET ASSY.

SPROCKET, tailings elevator 6-T

1шт.

1/8 X 3/4 COTTER

1шт.

1/4 X 1-3/4 DLD PIN

1шт.

14

NOT USED

1шт.

15

NOT USED

1шт.

16

NOT USED

1шт.

17

NOT USED

1шт.

18

569582R2

SPROCKET, cylinder drive, 48-T

1шт.

19

CHAIN, cylinder drive extension, Use 5 links of 3/4 standard double pitch roller chain from a 10-ft roll marked 1355D, two roller links 1316D, three connecting links 569206R91 and one two pitch combination offset connecting link 570988R91

1шт.

20

570988R91

DRAG LINK

LINK, 3/4 standard double pitch combination offset

1шт.

21

569206R91

CHAIN LINK

LINK, 3/4 standard double pitch connecting

1шт.
