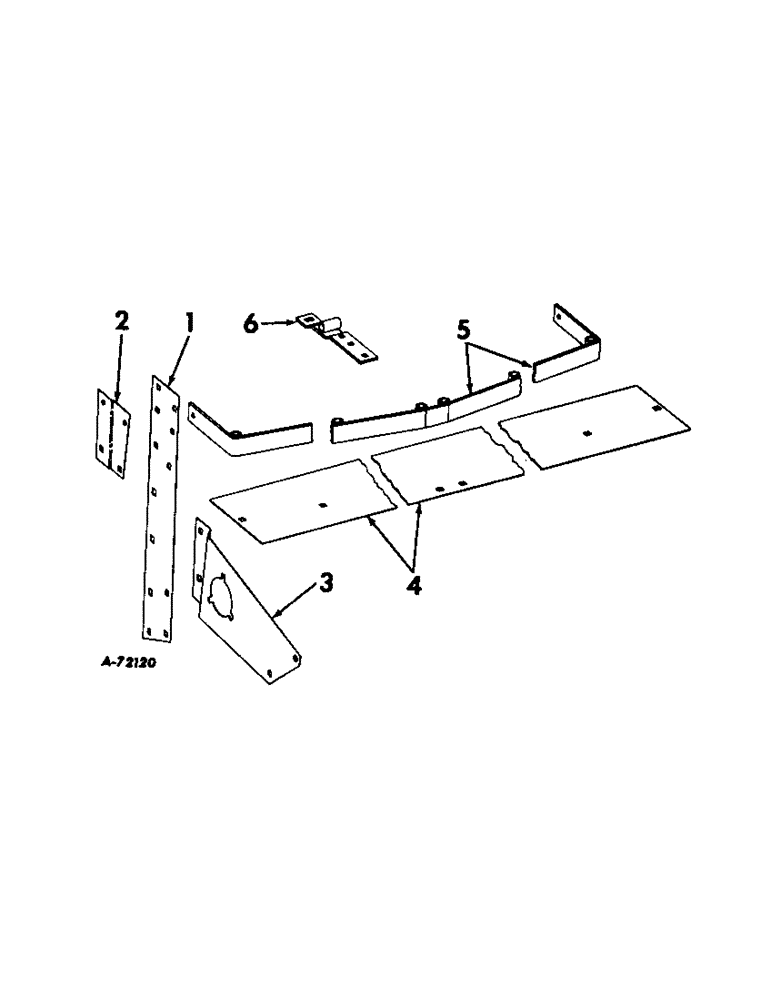

Запчасти Case IH 403 (313) - PLATFORM WEDGE (88) - ACCESSORIES

1

633679R1

FILLER, platform feeder side

2шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

BOLT, 5/16 x 3/4 C-Z sq-nk crg

10шт.

120376

NUT,5/16"-18, G5

10шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

2

633681R1

PLATE, feeder tie LH

1шт.

2

633682R1

PLATE, feeder tie RH

1шт.

18696R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/2", Gr 2

BOLT, 7/16 x 1-1/2 C-Z sq-nk crg

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

3

633683R1

SUPPORT, platform jackshaft inner bearing

1шт.

4

159691C1

FILLER, platform feeder top

1шт.

5

653972R91

STRAP W/SPACER, feeder top spacer

1шт.

16873R1

BOLT,Short NK, 7/16"-14 x 2 1/4", G2

7/16 x 2-1/4 C-Z sq-nk crg

4шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z sq-nk crg

2шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

6

653970R91

STRAP W/SPACER, feeder top spacer front

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 308 x 1 C-Z sq-nk crg

2шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 x 2-1/2 C-Z hex-hd mach

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.
