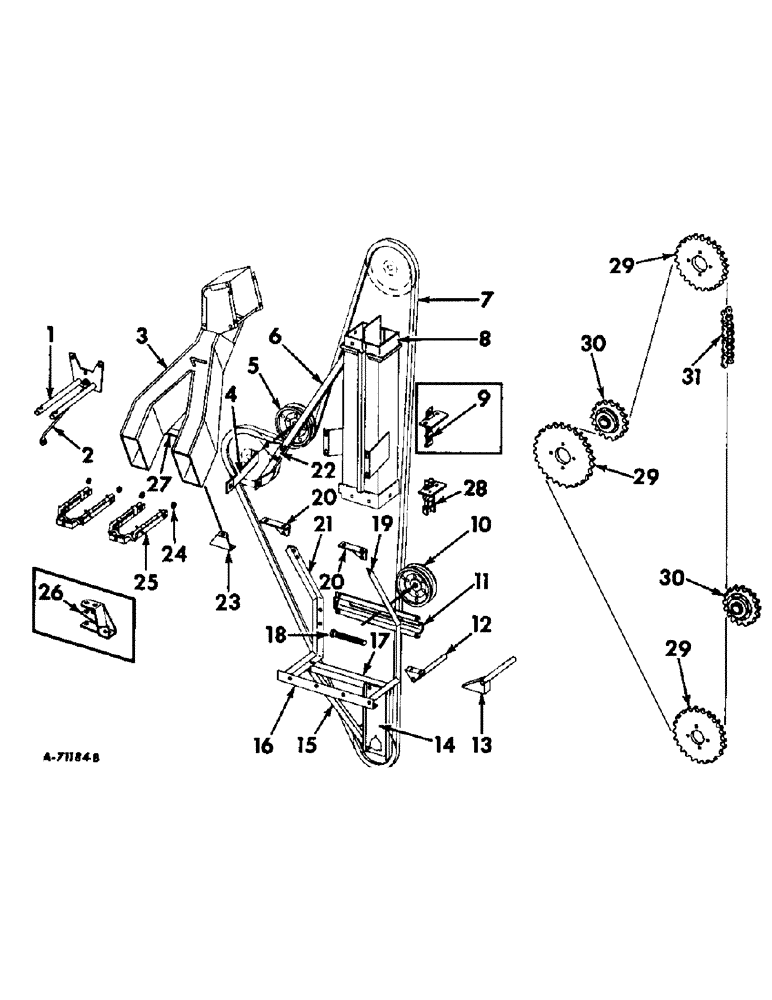

Запчасти Case IH 403 (306) - BAG DELIVERY SPOUT AND DRIVE (88) - ACCESSORIES

1

629151R91

SUPPORT W/PIPE, tailings elevator upper

1шт.

2

629154R1

BRACE, tailings elevator support

1шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

2шт.

3/8 C-Z LOCK WASHER

2шт.

3

629045R91

SPOUT W/TIE STRAP TOP, bag delivery, Includes ref no. 27

1шт.

4

633730R1

BRACE, idler

1шт.

3/8 X 1 C-Z MACH BOLT W/NUT

1шт.

3/8 C-Z LOCK WASHER

1шт.

5

565441R91

BEARING

SHEAVE ASSY, elevator drive idler

1шт.

5/8 X 2-1/4 C-Z MACH BOLT W/NUT

1шт.

5/8 C-Z LOCK WASHER

1шт.

10620P

WASHER

21/32 X 1-1/2 X 16 GA WASHER

6шт.

6

629159R91

BRACE W/GUSSET, elevator head

1шт.

7

150435C1

BELT

elevator drive, Serial no. 16129 and below

1шт.

8

629115R91

EXTENSION W/BOTTOM AND WRAPPER, grain elevator

1шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

6шт.

5/16 C-Z LOCK WASHER

6шт.

9

936292R91

CHAIN W/FLIGHT AND ATTACHING LINK, Serial no. 7223 and below, Consists of

1шт.

627987R1

RUBBER FLIGHT

FLIGHT

8шт.

62

LINK ASSY.

LINK, plain steel

32шт.

62SH1

LINK

attaching stl

8шт.

10

565441R91

BEARING

SHEAVE ASSY, elevator drive tightener

1шт.

11

634720R91

BRACKET W/ANCHOR, elevator drive belt tightener

1шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

4шт.

3/8 C-Z LOCK WASHER

4шт.

12

629111R91

BRACE W/PLATE, elevator front

1шт.

13

629113R91

BRACE W/PLATE, elevator rear

1шт.

14

633729R1

SUPPORT, elevator jackshaft bearing outer

1шт.

3/8 X 3/4 C-Z CRG BOLT W/NUT

3шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

2шт.

3/8 C-Z LOCK WASHER

5шт.

15

634722R1

STIFFENER, bearing bracket

1шт.

5/16 X 3/4 C-Z MACH BOLT W/NUT

2шт.

5/16 C-Z LOCK WASHER

2шт.

16

629158R1

SUPPORT, tightener bracket lower

1шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

2шт.

3/8 C-Z LOCK WASHER

2шт.

17

633731R1

SUPPORT, jackshaft bearing

1шт.

3/8 X 3/4 C-Z CRG BOLT W/NUT

2шт.

3/8 C-Z LOCK WASHER

2шт.

18

553863R1

BOLT, elevator drive belt tightener sheave adjusting, 1/2 x 20

1шт.

19

629156R1

SUPPORT, tightener rear

1шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

6шт.

3/8 C-Z LOCK WASHER

6шт.

20

629157R1

BRACE, support tightener upper

2шт.

3/8 X 1 C-Z MACH BOLT W/NUT

4шт.

3/8 C-Z LOCK WASHER

4шт.

21

629155R1

SUPPORT, tightener front

1шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

6шт.

3/8 C-Z LOCK WASHER

6шт.

22

629127R1

SUPPORT, inner idler

1шт.

5/8 X 3-1/4 C-Z MACH BOLT W/NUT

1шт.

5/8 C-Z LOCK WASHER

1шт.

10620P

WASHER

21/32 X 1-1/2 X 16 GA WASHER

6шт.

23

629056R1

BRACKET, downspout support

1шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

1шт.

5/16 X 3/4 C-Z MACH BOLT W/NUT

1шт.

5/16 C-Z LOCK WASHER

3шт.

24

86224H

SPACER,1/4" Pipe x 3/8"

Stop, bag holder 1/4" Pipe x 3/8"

4шт.

5/16 X 1 C-Z MACH BOLT W/NUT

4шт.

5/16 C-Z LOCK WASHER

4шт.

25

15951K

HANGER ASSY, bag

2шт.

1/8 X 3/4 COTTER PIN

4шт.

M92150

PIN

5/16 X 3/4 DLD PIN

4шт.

11/32 X 3/4 X 16 GA WASHER

4шт.

26

629750R91

SUPPORT W/ANCHOR, engine RH rear, Serial no. 7223 and below

1шт.

26

150178C91

SUPPORT ASSY, engine RH rear, Serial no. 7224 and above

1шт.

27

556624R1

STRAP, spout tie

1шт.

3/16 X 3/8 WAGON BOX-HD RIVET

4шт.

28

150707C91

CONVEYOR

ASSY, grain elevator, Serial no. 7224 and above, Consists of

1шт.

150713C1

STEEL FLIGHT

FLIGHT

10шт.

631253R91

LINK

plain roller

29шт.

150722C91

LINK

attachment

10шт.

588562R91

CHAIN LINK

LINK, offset roller

1шт.

631254R91

DRAG LINK

LINK, connecting roller

1шт.

29

155811C1

SPROCKET ASSY.

SPROCKET, elevator driven and grain hopper leveling auger driven 50-T

3шт.

30

582415R91

DRIVE SPROCKET,9T

SPROCKET ASSY, elevator drive chain idler 9-T

2шт.

31

CHAIN ASSY, elevator drive extension under 35 links from 10-ft roll marked 569089R91 and one connecting link 587372R91

1шт.
