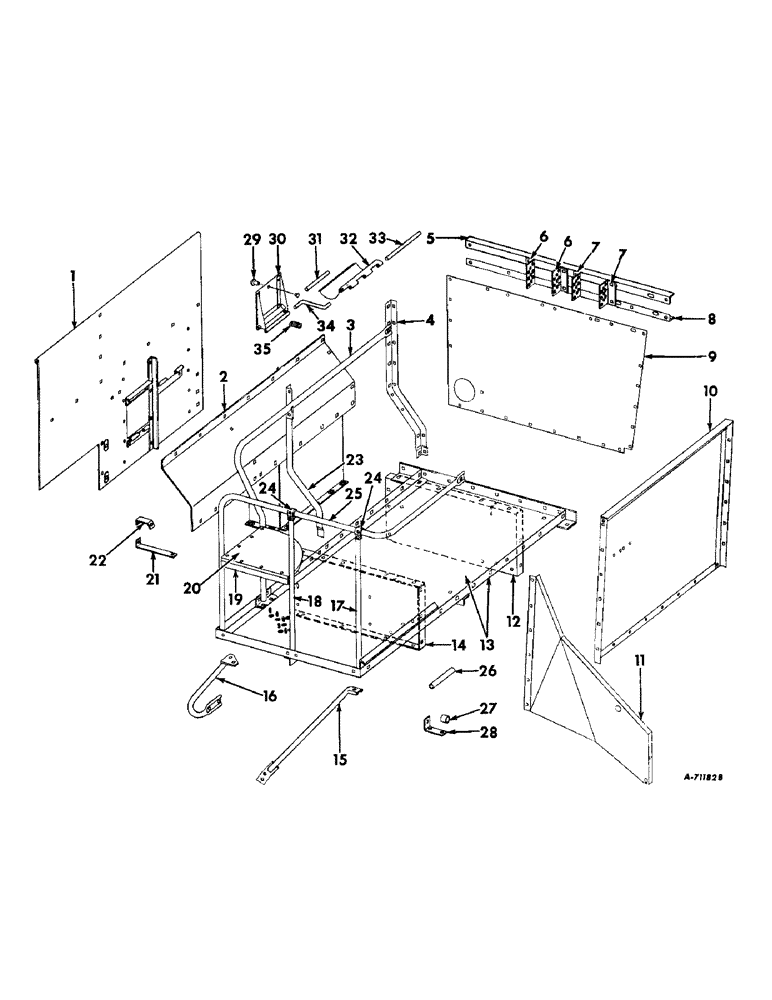

Запчасти Case IH 403 (301) - BAGGER PLATFORM (88) - ACCESSORIES

1

633734R91

SHEET W/HINGE AND ROD, bag platform, front

1шт.

1/4 X 1 C-Z CRG BOLT W/NUT

13шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

4шт.

3/8 X 1 C-Z CRG BOLT W/NUT

3шт.

7/16 X 1 C-Z MACH BOLT W/NUT

2шт.

113963

SCREW,Slotted Rd Hd, 1/4"-20 x 1 1/2"

1/4 X 1-1/2 C-Z SLT-RD-HD SCREW

10шт.

1/4 C-Z LOCK WASHER

23шт.

3/8 C-Z LOCK WASHER

3шт.

7/16 C-Z LOCK WASHER

2шт.

2

633737R91

SPOUT W/BACK AND SIDE, tailings delivery auger trough

1шт.

3

629071R91

RAIL W/SUPPORT, bag platform front

1шт.

7/16 X 3/4 C-Z CRG BOLT W/NUT

1шт.

7/16 C-Z LOCK WASHER

1шт.

4

629081R1

POST, bag platform LH front

1шт.

1/4 X 1/2 C-Z CRG BOLT W/NUT

6шт.

3/8 X 3/4 C-Z CRG BOLT W/NUT

2шт.

3/8 X 1 C-Z CRG BOLT W/NUT

1шт.

1/4 C-Z LOCK WASHER

6шт.

3/8 C-Z LOCK WASHER

3шт.

5

629087R1

SUPPORT, bag holder bracket upper

1шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

2шт.

5/16 C-Z LOCK WASHER

2шт.

11/32 X 3/4 X 16 GA WASHER

2шт.

6

M85941

BRACKET, bag holder support front

2шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

4шт.

5/16 C-Z LOCK WASHER

4шт.

7

M85942

BRACKET, bag holder support rear

2шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

4шт.

5/16 C-Z LOCK WASHER

4шт.

8

629088R1

SUPPORT, bag holder bracket lower

1шт.

9

629070R1

SHIELD, bag platform RH

1шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

5шт.

3/8 X 1 C-Z CRG BOLT W/NUT

2шт.

5/16 C-Z LOCK WASHER

5шт.

3/8 C-Z LOCK WASHER

2шт.

11/32 X 3/4 X 16 GA WASHER

2шт.

10

629089R91

SHIELD W/RAIL, bag platform rear

1шт.

1/4 X 3/4 C-Z CRG BOLT W/NUT

9шт.

5/16 X 1-1/4 C-Z CRG BOLT W/NUT

2шт.

3/8 X 3/4 C-Z CRG BOLT W/NUT

1шт.

7/16 X 1 C-Z CRG BOLT W/NUT

1шт.

1/4 C-Z LOCK WASHER

9шт.

5/16 C-Z LOCK WASHER

2шт.

3/8 C-Z LOCK WASHER

1шт.

7/16 C-Z LOCK WASHER

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

11

570738R91

SHIELD W/SUPPORT, chute

1шт.

5/16 X 1 C-Z MACH BOLT W/NUT

1шт.

1/4 C-Z NUT

8шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 X 1/2 C-Z SLT-RD-HD SCREW

5шт.

133043

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 C-Z SLT-RD-HD SCREW

1шт.

1/4 C-Z LOCK WASHER

6шт.

5/16 C-Z LOCK WASHER

1шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

5шт.

12

633733R1

BRACKET, bagger deck support RH front

1шт.

3/8 X 1 C-Z CRG BOLT W/NUT

6шт.

3/8 C-Z LOCK WASHER

6шт.

13

629058R91

PLATFORM W/ANGLE AND FLOOR, bagger

1шт.

1/4 X 1/2 C-Z CRG BOLT W/NUT

15шт.

3/8 X 1 C-Z CRG BOLT W/NUT

20шт.

7/16 X 1 C-Z CRG BOLT W/NUT

2шт.

1/2 X 1-1/4 C-Z CRG BOLT W/NUT

1шт.

1/4 C-Z LOCK WASHER

15шт.

3/8 C-Z LOCK WASHER

20шт.

7/16 C-Z LOCK WASHER

2шт.

1/2 C-Z LOCK WASHER

1шт.

14

633732R1

BRACKET, bagger deck support, LH front

1шт.

3/8 X 1 C-Z CRG BOLT W/NUT

5шт.

3/8 C-Z LOCK WASHER

5шт.

15

629076R91

BRACE W/BRACKET, bag platform rear

1шт.

16

629074R91

RAIL W/PLATE, operators deck rear, Serial no. 7223 and below

1шт.

16

939768R91

RAIL ASSY, operators deck rear, Serial no. 7224 and above

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

17

569749R91

POST W/CLAMP, bag platform LH rear

1шт.

18

569737R91

POST W/CLAMP AND PIN, bag platform rail

1шт.

19

569733R91

SUPPORT W/PIPE, bag platform seat

1шт.

20

569736R91

SEAT, bag platform

1шт.

5/16 X 1-1/4 C-Z STEP BOLT W/NUT

7шт.

5/16 C-Z LOCK WASHER

7шт.

21

634682R1

BRACE, bagger deck front sheet bottom

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

22

634681R1

BRACE, bagger deck front sheet top

1шт.

1/4 X 3/4 CRG BOLT W/NUT

1шт.

1/4 X 1-1/2 MACH BOLT W/NUT

1шт.

1/4 LOCK WASHER

2шт.

23

629082R1

POST, bag platform RH front

1шт.

1/4 X 1/2 CRG BOLT W/NUT

12шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

1/4 LOCK WASHER

12шт.

5/16 LOCK WASHER

2шт.

3/8 LOCK WASHER

1шт.

24

569740R1

CLIP, bag platform hand rail

2шт.

1/4 X 1-1/2 C-Z MACH BOLT W/NUT

2шт.

1/4 C-Z LOCK WASHER

1шт.

25

629079R91

RAIL W/CLAMP, bagger platform LH

1шт.

7/16 X 1-1/4 C-Z CRG BOLT W/NUT

1шт.

7/16 C-Z LOCK WASHER

1шт.

26

NOT USED

1шт.

27

654682R1

SPACER, propulsion jackshaft RH

1шт.

28

935137R1

STIFFENER, separator drive clutch control pivot

1шт.

3/8 X 1 C-Z MACH BOLT W/NUT

3шт.

3/8 C-Z LOCK WASHER

3шт.

29

587056R1

KNOB, tailings inspection door

1шт.

30

633649R91

DOOR W/SEAL, tailings inspection

1шт.

31

634523R1

ROD, tailings inspection door hinge

1шт.

32

633668R91

VALVE ASSY, tailings delivery

1шт.

33

633233R1

ROD, tailings delivery valve

1шт.

34

633230R1

ROD, tailings delivery valve control

1шт.

35

Z1259

SPRING

tailings inspection door

1шт.
