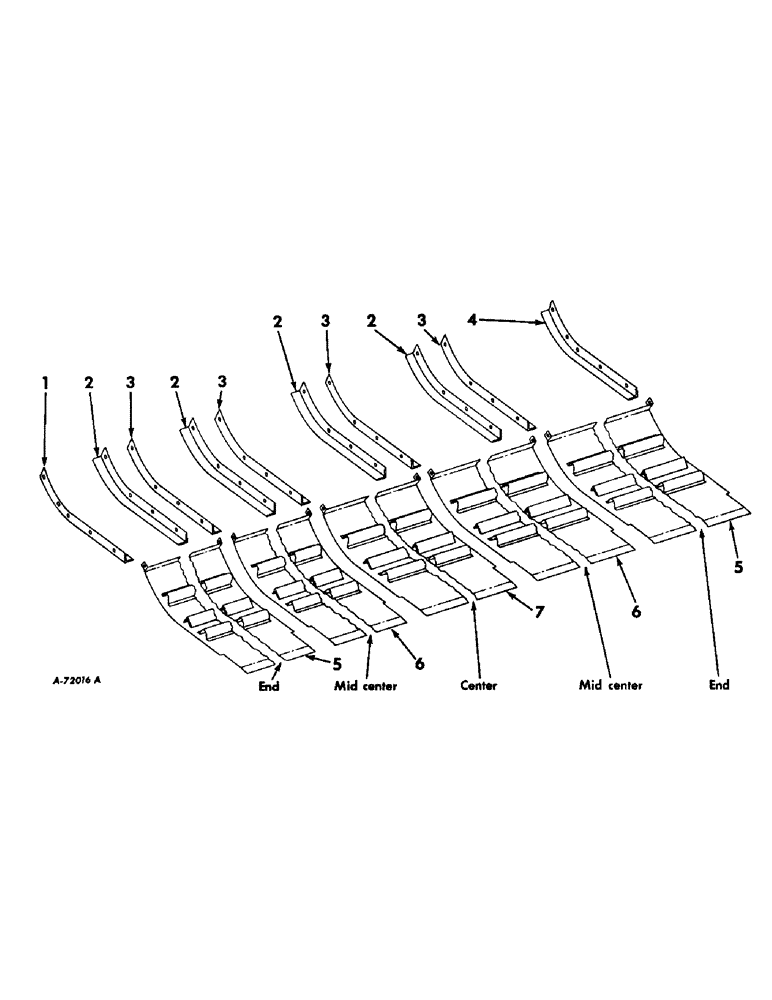

Запчасти Case IH 403 (271) - PLATFORM BOTTOM SHIELD (88) - ACCESSORIES

1

571591R1

SUPPORT, platform bottom end shield RH

1шт.

2

572902R1

SUPPORT, platform bottom shield LH, 2 used 12-ft platforms, 4 used 13-ft, 14-ft, 15-ft and 16-ft platforms, 6 used 18-ft platforms

1шт.

7/16 X 1 MACH BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.

3

572903R1

SUPPORT, platform bottom shield RH, 2 used 12-ft platforms, 4 used 13-ft, 14-ft, 15-ft and 16-ft platforms, 6 used 18-ft platforms

1шт.

7/16 X 1 MACH BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.

4

571590R1

SUPPORT, platform bottom end shield LH

1шт.

5

583501R92

SHIELD W/ANGLE AND CLIP, platform bottom end, 12-ft platform

2шт.

5

583503R92

SHIELD W/ANGLE AND CLIP, platform bottom end, 13-ft, 14-ft and 18-ft platform

2шт.

5

583507R92

SHIELD W/ANGLE AND CLIP, platform bottom end, 16-ft platform

2шт.

5

583505R92

SHIELD W/ANGLE AND CLIP, platform bottom end, 15-ft platform

2шт.

7/16 X 1-1/2 MACH BOLT W/NUT

2шт.

7/16 LOCK WASHER

2шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

4шт.

6

654806R91

SHIELD W/ANGLE AND CLIP, platform bottom mid center LH, 13-ft

2шт.

6

573017R93

SHIELD W/ANGLE AND CLIP, platform bottom mid center LH, 14-ft, 15-ft and 16-ft platforms

2шт.

6

573018R93

SHIELD W/ANGLE AND CLIP, platform bottom mid center RH, 14-ft, 15-ft and 16-ft platforms

1шт.

6

654035R91

SHIELD W/ANGLE AND CLIP, platform bottom mid center RH, 18-ft platforms

4шт.

7/16 X 1-1/2 MACH BOLT W/NUT

2шт.

7/16 LOCK WASHER

2шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

8шт.

7

573005R92

SHIELD W/ANGLE AND CLIP, platform bottom center

1шт.

7/16 X 1-1/2 MACH BOLT W/NUT

2шт.

7/16 LOCK WASHER

2шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

6шт.
