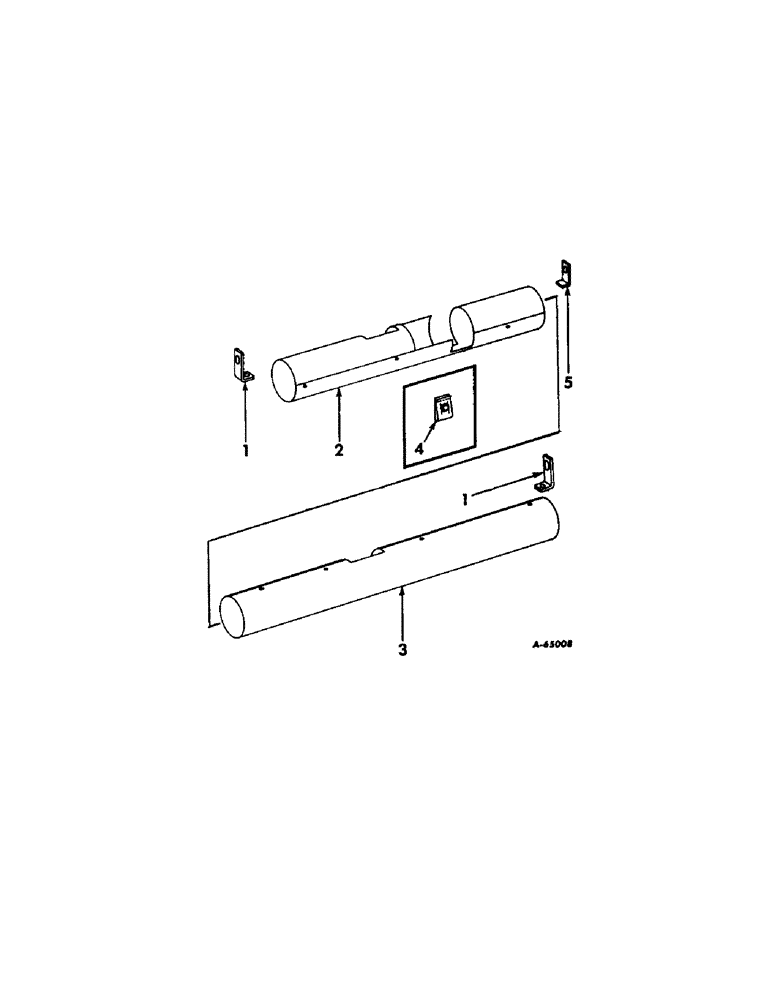

Запчасти Case IH 403 (265[1]) - AXLE FINAL DRIVE SHAFT SHIELDS (88) - ACCESSORIES

1

568810R1

CLIP, final drive shaft shield

6шт.

186331

7/16-20NF X 4-1/4 CAP SCREW

6шт.

Q5028

WASHER

15/32 X 1 X 11 GA WASHER

6шт.

2

588802R1

SHIELD, LH final drive shaft

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD MACH SCREW

3шт.

1/4 LOCK WASHER

3шт.

3

588803R1

SHIELD, final drive shaft RH

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD MACH SCREW

4шт.

1/4 LOCK WASHER

4шт.

4

564791R1

SPRING NUT

final drive shaft shield

7шт.

5

634978R1

CLIP, final drive shaft LH shield

6шт.
