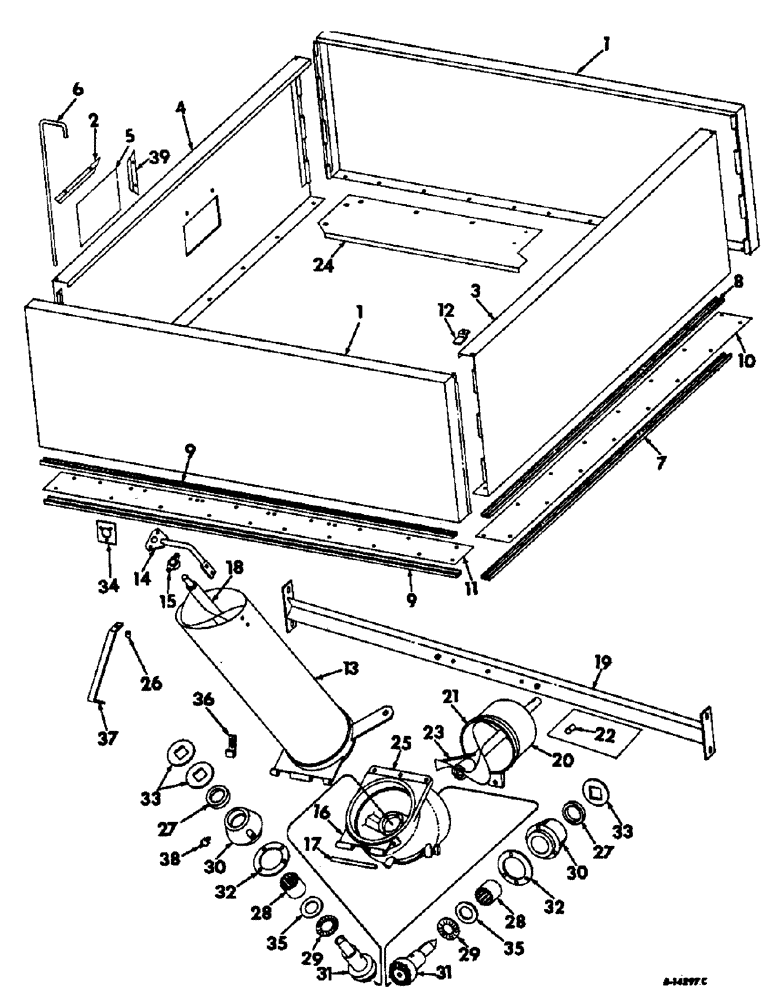

Запчасти Case IH 403 (150) - GRAIN TANK EXTENSION ATT (80) - CROP STORAGE/UNLOADING

1

939652R91

SECTION ASSY, grain hopper extension LH and RH

2шт.

2

150551C1

RETAINER, grain hopper extension window top 10-3/4 inches long, Serial no. 19527 and below

1шт.

120376

NUT,5/16"-18, G5

2шт.

477-73108

SERRATED SCREW,Sl Truss Hd, 5/16" - 18 x 1/2"

5/16 X 1/2 C-Z MACH SCREW

2шт.

102214

WASHER

5/16 C-Z LOCK WASHER

2шт.

3

939684R91

SECTION ASSY, grain hopper ext rear

1шт.

4

939712R92

SECTION ASSY, grain hopper ext frt

1шт.

5

WINDOW, grain tank, Procure from local glass company

1шт.

6

939687R1

ROD, grain hopper extension section hinge

4шт.

7

939701R1

CHANNEL, grain tank frt and rear

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 X 3/4 C-Z MACH BOLT

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

8

939702R1

CHANNEL, grain hopper extension front and rear

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 X 3/4 C-Z MACH BOLT

1шт.

18475R1

BOLT,Hex, 5/16" - 18 x 1 1/4", Gr 2

5/16 X 1-1/4 MACH BOLT

1шт.

120376

NUT,5/16"-18, G5

1шт.

142745

NUT, WING

5/16 C-Z WING NUT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.

9

939697R1

CHANNEL, grain hopper and extension side

4шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 X 3/4 C-Z MACH BOLT W/NUT

37шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

37шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

18шт.

10

939704R1

SEAL, grain hopper extension front and rear

2шт.

11

939696R1

SEAL, grain hopper extension side

1шт.

12

939686R1

BRACKET, grain hopper extension section hold-down

4шт.

13

159856C91

ELEVATOR TUBE

PIPE ASSY, grain upper elevator

1шт.

180173R1

1/2 X 1 C-Z CAP SCREW

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

14

939591R91

SUPPORT

ASSY, grain upper elevator auger

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 X 3/4 C-Z CRG BOLT W/NUT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

15

382508R91

BEARING ASSY,0.752" ID x 0.81"

BEARING ASSY, grain upper elevator auger

1шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

5/16 X 3/4 C-Z MACH BOLT W/NUT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

16

939579R91

HINGE ASSY, grain upper elevator pipe

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 X 1 C-Z CRG BOLT W/NUT

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

939578R1

PIN, grain upper elevator pipe hinge

1шт.

18

939582R91

AUGER

ASSY, grain upper elevator

1шт.

17132

1/4 X 1 SLTD SPRING PIN

1шт.

19

939575R91

ANGLE ASSY, grain upper elevator support

1шт.

231-5146

FLANGE NUT,3/8"-16

3/8 WHIZ LOCK NUT

4шт.

477-73812

SERRATED SCREW,Truss HD, 3/8" - 16 x 3/4"

3/8 X 3/4 C-Z PAN-HD LOCK SCREW

4шт.

20

939568R91

TUBE

PIPE ASSY, grain hopper distributor auger

1шт.

21

939563R1

RING, grain hopper distributor auger

1шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 X 3/4 C-Z SQ-NK CRG BOLT

3шт.

18800R1

7/16 X 2-1/2 C-Z MACH BOLT

1шт.

120376

NUT,5/16"-18, G5

3шт.

NLS

NO LONGER SERVICED

7/16 C-Z HEX. NUT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

3шт.

W6652

WASHER

15/32 X 1 X 16 GA WASHER

1шт.

22

NOT USED

1шт.

23

939564R91

AUGER

ASSY, grain hopper distributor

1шт.

24

939586R1

COVER, grain hopper

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 X 1/2 C-Z CRG BOLT W/NUT

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

25

606707R1

ELBOW, grain upper elevator

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

3/8 X 3/4 C-Z MACH BOLT W/NUT

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 X 1 MACH BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

126032

WING NUT,3/8"-16

3/8 C-Z WING NUT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

26

23323H

SPACER,1/4" Pipe x 1/2"

grain upper elevator support angle brace

1шт.

27

607145R91

OIL SEAL

OIL SEAL, grain upper elevator bevel gear case

2шт.

28

607148R91

ROLLER BEARING,1.375" ID x 1.7505" OD x 1"

grain upper elevator bevel needle

2шт.

29

607146R91

THRUST BEARING,35.04mm ID x 51.99mm OD x 1.98mm W

grain upper elevator bevel needle

2шт.

30

606709R1

HUB

COLLAR, grain upper elevator bevel gear locking

2шт.

139011

SET SCREW,Hex Soc, 1/4"-28 x 3/8"

SCREW, 1/4 x 3/8 hex socket-hd set

1шт.

20483R1

HEX SOC SCREW,5/16"-18 x 3/4"

5/16 X 3/4 C-Z CAP SCREW

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

31

606710R1

GEAR

grain upper elevator bevel

6шт.

32

606711R1

GASKET

SHIM, grain upper elevator bevel gear lock collar

6шт.

32

936654R1

GASKET,0.51mm Thk

SHIM, grain upper elevator bevel gear lock

1шт.

33

606712R1

SQ HOLE WASHER

grain upper elevator auger and distributor auger

3шт.

Q3858

WASHER

1-13/32 X 2-1/4 X 20 GA WASHER

2шт.

34

626582R1

COVER

grain hopper distributor auger bearing open

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 X 1/2 C-Z CRG BOLT W/NUT

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

35

607147R1

WASHER

RACE, grain upper elevator bevel gear thrust

1шт.

36

151061C1

STRIP, grain elevator upper tube hold down

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

3/8 X 3/4 C-Z CRG BOLT

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

37

151252C91

BRACE, grain upper elevator support angle

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 X 1-1/4 C-Z HEX-HD BOLT

1шт.

18765R1

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 2

5/16 X 1-1/2 C-Z HEX-HD BOLT

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

510579R1

WASHER

13/32 X 1-1/4 X 16 GA WASHER

4шт.

38

16982R1

FITTING, 1/4-28 str-lub

1шт.

39

172212C1

RETAINER, grain tank ext window side 6-3/4 inches long, Serial no. 19528 and above

1шт.

20716R1

SCREW,Sl Pan Hd, 5/16" - 18 x 1/2"

5/16 x 1/2 C-Z slt mach

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
