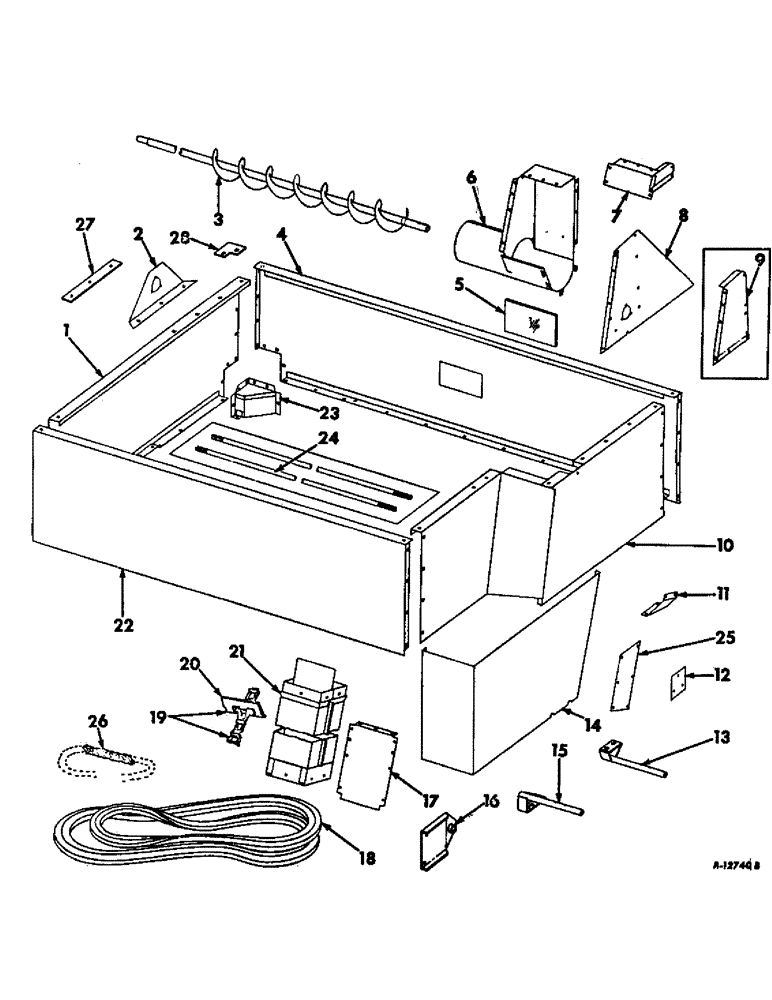

Запчасти Case IH 403 (148) - GRAIN TANK EXTENSION ATTACHMENT, SERIAL NO. 2196 AND ABOVE (80) - CROP STORAGE/UNLOADING

1

935510R91

SIDE W/CLIP, grain tank LH

1шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

10шт.

5/16 C-Z LOCK WASHER

10шт.

2

935505R1

PANEL, grain tank leveling auger LH

1шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

3шт.

3/8 C-Z LOCK WASHER

3шт.

3

654882R91

AUGER

W/SHAFT, grain tank leveling

1шт.

4

628554R91

SIDE W/CLIP, grain tank extension front

1шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

1шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

1шт.

5/16 C-Z LOCK WASHER

1шт.

3/8 C-Z LOCK WASHER

1шт.

5

WINDOW, grain tank, Procure from local glass company

1шт.

6

654871R91

TUBE

W/CLIP, grain tank leveling auger

1шт.

7

632061R91

COVER W/TOP AND SIDES, spout

1шт.

1/4 X 1/2 C-Z CRG BOLT W/NUT

2шт.

1/4 C-Z NUT

6шт.

85700996

SCREW,Phillips Drive, Pan HD, 1/4" - 20 x 1/2"

1/4 X 1/2 C-Z SLT-RD-HD MACH SCREW

6шт.

1/4 C-Z LOCK WASHER

8шт.

8

935506R91

PANEL W/STIFFENER, grain tank leveling auger RH

1шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

4шт.

5/16 C-Z LOCK WASHER

4шт.

9

NOT USED

1шт.

10

935498R91

SIDE W/CLIP, grain tank RH

1шт.

1/4 X 1/2 C-Z CRG BOLT W/NUT

4шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

8шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

3шт.

1/4 C-Z LOCK WASHER

4шт.

5/16 C-Z LOCK WASHER

8шт.

3/8 C-Z LOCK WASHER

3шт.

11

935526R1

BRACE, grain elevator head support

1шт.

5/16 X 1/2 C-Z MACH BOLT W/NUT

2шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

2шт.

5/16 C-Z LOCK WASHER

4шт.

12

626582R1

COVER

grain tank distributing auger bearing

2шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

6шт.

5/16 C-Z LOCK WASHER

6шт.

13

629111R91

BRACE W/PLATE, grain elevator lower front

1шт.

14

NOT USED

1шт.

15

629113R91

BRACE W/PLATE, grain elevator lower rear

1шт.

16

935528R91

CHANNEL W/HUB, grain tank unloader drive tightener sheave

1шт.

17

632051R1

COVER, front filler

1шт.

1/4 X 1/2 C-Z CRG BOLT W/NUT

8шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

1шт.

1/4 C-Z LOCK WASHER

8шт.

5/16 C-Z LOCK WASHER

1шт.

18

150433C1

V-BELT,206.49" L

Elevator Drive, For Elevator Drive Machines 206.49" L

1шт.

18

634893R1

BELT,0.88" W

V-BELT , Elevator drive, For machines equipped with grain tank, grain tank extension and Scourkleen attachment, For belt elevator drive machines, Serial no. 2196 to 7223 0.88" W

1шт.

18

152586C1

BELT

elevator drive, For machines equipped w/grain tank, grain tank extension and Scourkleen att, For belt elevator drive machines serial no. 7224 and above

1шт.

19

936292R91

CHAIN W/FLIGHT, grain elevator

1шт.

19

150707C91

CONVEYOR

CHAIN ASSY, grain elevator conveyor ext

1шт.

20

628141R91

FLIGHT W/ATTACHING LINK

1шт.

20

150713C1

STEEL FLIGHT

FLIGHT W/ATTACHING LINK EXT

1шт.

62SH1

LINK

attaching

1шт.

62

LINK ASSY.

LINK, plain

1шт.

21

155129C91

HOUSING

EXTENSION W/SEAL, grain elevator

1шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

1шт.

5/16 C-Z LOCK WASHER

1шт.

22

935495R91

SIDE W/CLIP, grain tank rear

1шт.

5/16 X 1/2 C-Z CRG BOLT W/NUT

1шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

1шт.

5/16 C-Z LOCK WASHER

1шт.

3/8 C-Z LOCK WASHER

1шт.

23

632057R91

SHIELD W/TOP AND SIDE, unloader tube anchor rod

1шт.

24

NOT USED

1шт.

25

935871R1

BRACKET, elevator support

1шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

2шт.

5/16 C-Z WASHER

2шт.

26

CHAIN ASSY, elevator drive extension, Use 35 links from 10-ft roll marked 569089R91 and one connecting link 587372R91, For chain elevator drive machines

1шт.

27

151299C1

STRAP, grain tank left side filler

1шт.

28

627110R1

BAR, grain tank left front corner filler

1шт.
