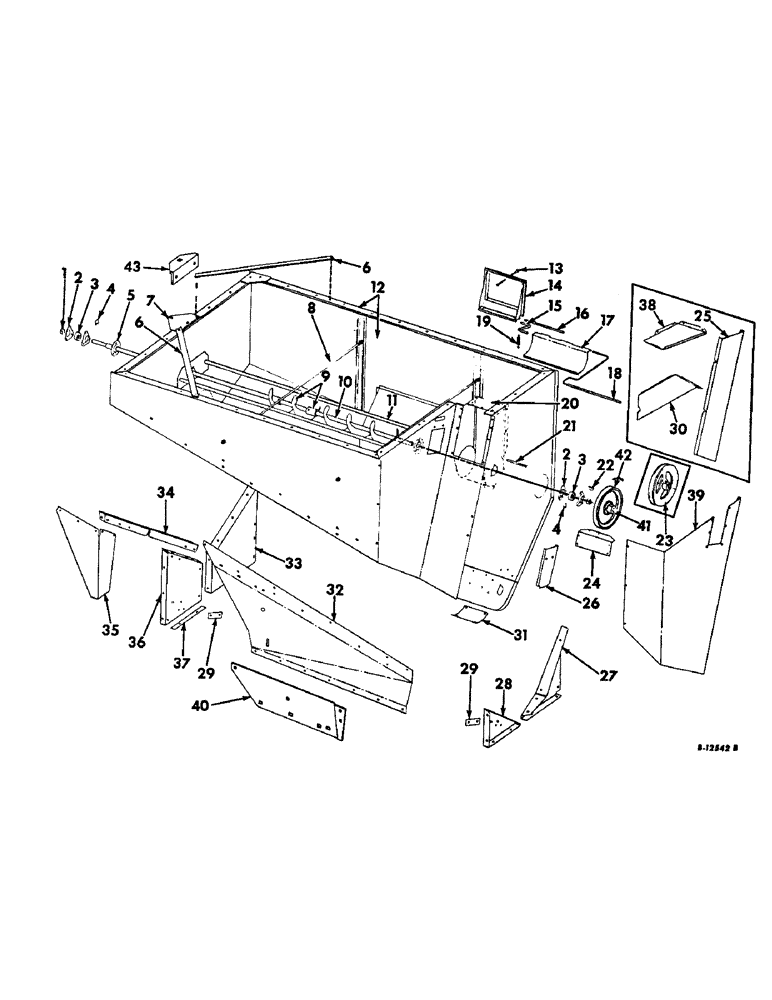

Запчасти Case IH 403 (142) - GRAIN TANK (80) - CROP STORAGE/UNLOADING

1

455102R11

COLLAR

W/SET SCREW ASSY, locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT SET SCREW

2шт.

2

571424R1

FLANGE

grain tank leveling auger bearing

4шт.

5/16 X 3/4 CRG BOLT W/NUT

6шт.

5/16 LOCK WASHER

6шт.

3

455965R91

BALL BEARING,1.0005" ID x 52 mm OD x 15 mm

ball

2шт.

4

628535R1

SHIM

grain tank distributing auger bearing

6шт.

5

606695R1

COVER

SHIELD, grain tank distributing auger bearing, grain only

2шт.

6

627121R1

BRACE, grain tank, Serial no. 7223 and below

2шт.

6

939602R1

BRACE, grain hopper, Serial no. 7224 and above

1шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

4шт.

3/8 C-Z LOCK WASHER

4шт.

7

627358R1

ANCHOR, unloader pivot tube rod, Serial no. 7223 and below

1шт.

7

939603R1

ANCHOR, unloader tube pivot rod, Serial no. 7224 and above

1шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

1шт.

3/8 X 1 MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

3шт.

8

631370R1

ROD, grain tank front and rear side support

2шт.

1/2 NUT

4шт.

1/2 LOCK WASHER

4шт.

9

627122R91

AUGER

EXTENSION W/HUB, distributing auger, grain

1шт.

25-147

JAM NUT,Jam, 7/16"-14, G5

7/16 JAM NUT

2шт.

102905

SET SCREW,Sq Hd, 7/16"-14 x 3/4"

7/16 X 3/4 CUP-PT SET SCREW

2шт.

10

627117R91

AUGER

W/SHAFT, leveling, grain

1шт.

10

654882R91

AUGER

W/SHAFT, leveling, rice

1шт.

11

633463R1

PIPE, grain tank side support rod

1шт.

12

627100R91

TANK ASSY, grain, Includes ref nos 13 through 19, Serial no. 2195 and below

1шт.

12

935395R91

TANK ASSY, grain, Includes ref nos 13 through 19, Serial no., Serial Range: 2196-7223

1шт.

12

938859R91

HOPPER ASSY, grain tank, Serial no. 7224 and above

1шт.

5/16 X 1/2 CRG BOLT W/NUT

2шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

1/2 X 3/4 CRG BOLT W/NUT

1шт.

1/2 X 1-1/2 CRG BOLT W/NUT

1шт.

5/16 X 3/4 MACH BOLT W/NUT

1шт.

1/4 X 1/2 MACH BOLT W/NUT

1шт.

1/4 NUT

1шт.

3/8 NUT

1шт.

470-12520

SCREW,Slotted Pan Hd, 1/4"-20 x 1 1/4"

1/4 X 1/2 SLT-RD-HD MACH SCREW

1шт.

114697

SCREW,Slotted Rd Hd, 3/8"-16 x 1/2"

3/8 X 1/2 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

11/32 X 3/4 X 16 GA WASHER

1шт.

13

587056R1

KNOB, inspection door

1шт.

633712R1

RIVET

1шт.

14

633649R91

DOOR W/SEAL AND HINGE, tailings inspection

1шт.

15

633230R1

ROD, tailings delivery auger valve control

1шт.

16

634523R1

ROD, tailings inspection door hinge

1шт.

1/8 X 3/4 COT. PIN

1шт.

17

633668R91

VALVE W/HINGE, tailings delivery

1шт.

18

633233R1

ROD, tailings delivery auger valve

1шт.

19

Z1259

SPRING

tailings inspection door return

2шт.

1/4 X 1-1/4 CRG BOLT

1шт.

114501

JAM NUT,Jam, 1/4"-20, G5

1шт.

20

629648R91

TUBE

W/CLIP, leveling auger, grain

1шт.

20

654871R91

TUBE

W/CLIP, leveling auger, rice

1шт.

21

627128R1

ROD, grain tank side support

2шт.

22

NLS

NO LONGER SERVICED

no. 15 Woodruff

1шт.

23

633199R1

SHEAVE, grain tank distributing auger driven, Serial no. 7223 and below

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

102883

SET SCREW

5/16 X 3/4 CUP-PT SET SCREW

2шт.

24

627125R1

DOOR, elevator tank

1шт.

1/4 X 1/2 CRG BOLT W/NUT

4шт.

1/4 X 1/2 MACH BOLT

3шт.

564791R1

SPRING NUT

1/4 SPEED NUT

3шт.

1/4 LOCK WASHER

7шт.

25

631939R1

COVER, grain elevator opening, Serial no. 2195 and below

1шт.

5/16 X 3/4 CRG BOLT W/NUT

5шт.

5/16 LOCK WASHER

5шт.

11/32 X 3/4 X 16 GA WASHER

5шт.

26

629662R1

DOOR, grain elevator headshaft

1шт.

5/16 X 1/2 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

27

170987C11

BRACKET ASSY, grain tank RH frt support

1шт.

3/8 X 3/4 CRG BOLT W/NUT

6шт.

3/8 LOCK WASHER

6шт.

29

629505R1

PLATE, cylinder beater cover

2шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

5/16 LOCK WASHER

4шт.

30

628357R1

BRACE, grain tank RH support, Serial no. 2195 and below

1шт.

31

627116R1

COVER

DOOR, grain tank cleanout

1шт.

5/16 X 1/2 CAP SCREW

4шт.

5/16 LOCK WASHER

4шт.

11/32 X 1 X 16 GA WASHER

4шт.

32

627711R1

SUPPORT, grain tank rear, Serial no. 7223 and below

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

142350

GROMMET,7/8" ID x 1 5/8" x .125", Diag Cut

7/8 PLAIN RUBBER GROMMET

1шт.

32

937926R1

SUPPORT, grain tank rear, Serial no. 7224 and above

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

5/16 X 3/4 MACH BOLT W/NUT

1шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.

33

629488R91

BRACKET W/GUSSET, grain tank LH front support, Serial no. 16129 and below

1шт.

33

159281C91

BRACKET ASSY, grain tank LH front support, Serial no. 16130 and above

1шт.

3/8 X 3/4 CRG BOLT W/NUT

6шт.

3/8 X 3/4 CAP SCREW

4шт.

3/8 LOCK WASHER

10шт.

34

629438R11

SUPPORT W/NUT, grain tank bottom

1шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

3/8 X 1 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

4шт.

3/8 LOCK WASHER

4шт.

W6652

WASHER

13/32 X 1 X 16 GA WASHER

2шт.

35

627124R1

BRACE, grain tank LH support

1шт.

3/8 X 3/4 CRG BOLT W/NUT

7шт.

3/8 LOCK WASHER

7шт.

36

629495R1

BRACKET, grain tank LH rear support

1шт.

3/8 X 3/4 CRG BOLT W/NUT

11шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

3/8 LOCK WASHER

12шт.

37

629506R1

FILLER, grain tank LH rear support bracket

1шт.

38

633314R1

SHEET, grain tank bottom filler, 2195 and below

1шт.

1/4 X 1/2 CRG BOLT W/NUT

6шт.

1/4 LOCK WASHER

6шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

2шт.

39

NOT USED

1шт.

40

937924R1

SUPPORT, grain tank LH rear, Serial no. 7224 and above

1шт.

41

939279R1

HUB

grain hopper level auger driven pulley, Serial no. 7224 and above

1шт.

5/16 X 1 C-Z MACH BOLT W/NUT

4шт.

102883

SET SCREW

5/16 X 3/4 CUP-PT SET SCREW

2шт.

5/16 C-Z LOCK WASHER

4шт.

42

939241R11

PULLEY ASSY.

PULLEY ASSY, grain hopper level auger driven, Serial no. 7224 and above

1шт.

43

939601R1

BRACKET, grain hopper unloader tube front rod, Serial no. 7224 and above

1шт.

3/8 X 3/4 C-Z MACH BOLT W/NUT

2шт.

3/8 C-Z LOCK WASHER

2шт.
