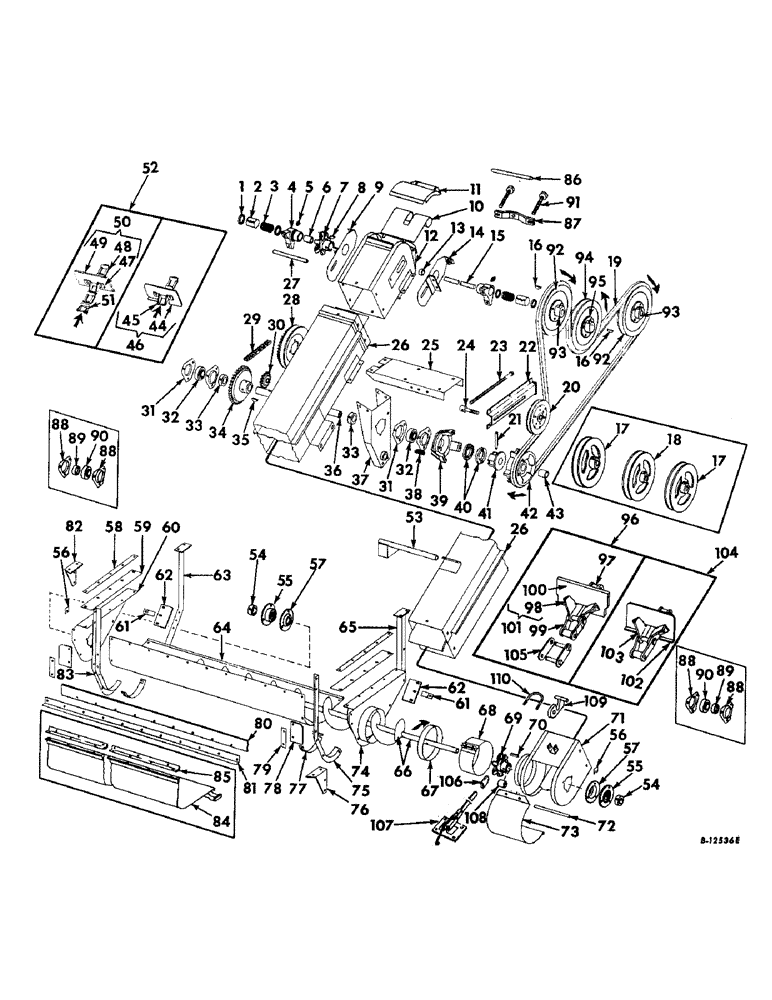

Запчасти Case IH 403 (083) - GRAIN ELEVATOR AND DRIVE CHAIN FLIGHT, STEEL, SPECIAL (80) - CROP STORAGE/UNLOADING

1

631734R91

OIL SEAL

OIL SEAL, bearing box

4шт.

2

631735R1

SLEEVE CYLINDER

RACE, outer

2шт.

3

562708R91

BEARING ASSY,0.875" ID x 1.378" OD x 1.75"

roller

2шт.

4

631704R1

HOUSING

BOX, bearing

2шт.

5/16 X 1/2 CAP SCREW

4шт.

5/16 LOCK WASHER

4шт.

5

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

6

584963R1

SPACER, elevator headshaft, inner

1шт.

7

629193R1

SPROCKET ASSY.

SPROCKET, elevator conveyor chain, 6-T, Serial no. 7223 and below

1шт.

7

150719C91

SPROCKET ASSY.

SPROCKET ASSY, grain elevator conveyor chain, 6-T, Serial no. 7224 and above

1шт.

1/8 X 3/4 COTTER PIN

1шт.

Q1329

HEADED PIN,1/4" x 1 3/4"

1/4 X 1-3/4 DLD PIN

1шт.

8

NLS

NO LONGER SERVICED

1/4 x 1 Woodruff

1шт.

9

631699R91

SUPPORT

BRACKET W/NUT, elevator chain tightener LH

1шт.

5/16 X 6 CRG BOLT W/NUT

1шт.

7/16 NUT

2шт.

5/16 LOCK WASHER

2шт.

11/32 X 1 X 16 GA WASHER

2шт.

10

627981R1

SHIELD

elevator headshaft

1шт.

11

627995R1

DOOR, grain elevator head, Serial no., Serial Range: 501-4643

1шт.

11

165490C1

DOOR

grain elevator head, Serial no. 4644 and above

1шт.

1/4 X 1-1/4 CRG BOLT

1шт.

935735R1

WING NUT

1/4 WING NUT

1шт.

1/4 LOCK WASHER

1шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

1шт.

12

627954R91

HEAD ASSY, grain elevator, Serial no., Serial Range: 501-4643

1шт.

12

936547R92

HEAD

ASSY, grain elevator, Serial no., Serial Range: 4644-9956

1шт.

12

153168C91

HEAD

ASSY, grain elevator, Serial no. 9957 and above

1шт.

1/4 X 1/2 CRG BOLT W/NUT

4шт.

1/4 LOCK WASHER

4шт.

3/8 NUT

1шт.

3/8 LOCK WASHER

1шт.

PO10532

WASHER

13/32 X 1-1/4 X 11 GA WASHER

1шт.

13

553855R1

SPACER

grain elevator headshaft outer

1шт.

14

631700R91

SUPPORT

BRACKET W/NUT, elevator chain tightener RH

1шт.

15

627965R1

SHAFT

HEADSHAFT, grain elevator

1шт.

1/8 X 1-3/4 COTTER PIN

1шт.

576402R1

29/32 X 1-3/4 X 22 GA WASHER

2шт.

VC649

WASHER

29/32 X 1-3/4 X 16 GA WASHER

12шт.

16

113782

KEY

1/4 x 1 Woodruff

2шт.

17

633198R1

SHEAVE, elevator driven, Serial no. 7223 and below

2шт.

5/16 JAM NUT

2шт.

102883

SET SCREW

5/16 X 3/4 CUP-PT SET SCREW

2шт.

18

633199R1

SHEAVE, grain tank distributor auger driven, Serial no. 7223 and below

1шт.

5/16 JAM NUT

2шт.

102883

SET SCREW

5/16 X 3/4 CUP-PT, set screw

1шт.

19

150433C1

V-BELT,206.49" L

Elevator Drive, Grain Machine Equipped with Grain Tank and Grain Tank Extension, Serial no. 2196 to 7223 206.49" L

1шт.

19

937928R1

V-BELT

Elevator drive, Grain machines equipped with grain tank, Serial no. 16129 and below, For machines w/belt elevator drive serial no. 16130 and above

1шт.

19

937929R1

V-BELT

1шт.

BELT, elevator drive, Serial no. 16129 and below, rice machines equipped with grain tank, Also used on grain machines equipped with raised leveling auger, Also grain machine with grain tank and grain tank extension, Serial no. 2195 and below, For machines w/belt elevator drive serial no. 16130 and above

1шт.

19

150432C1

BELT, elevator drive, grain tank and Scourkleen attachment

1шт.

19

634893R1

BELT,0.88" W

V-BELT , Elevator drive, Grain machines equipped with grain tank, Grain tank extension attachment and Scourkleen attachment, Serial no. 7223 and below 0.88" W

1шт.

19

152586C1

BELT

elevator drive, grain machine equipped with grain tank, grain tank extension and Scourkleen attachment, Serial no. 9957 and above

1шт.

19

150430C1

BELT, elevator drive, rice machines equipped with grain tank and Scourkleen attachment, Also used on grain machines equipped with raised leveling auger

1шт.

19

150435C1

BELT

elevator drive, bagger attachment, Serial no. 16129 and below, For machines w/belt elevator drive serial no. 16130 and above

1шт.

20

154742C91

PULLEY

SHEAVE ASSY, elevator drive tightener, Serial no. 16129 and below, For machines w/belt elevator drive serial no. 16130 and above

1шт.

21

569386R2

DOWEL

PIN, elevator drive slip clutch hub, Serial no. 16129 and below, For machines w/belt elevator drive serial no. 16130 and above

1шт.

648002

KNIFE

1/8" x 3/4"

2шт.

22

629172R91

BRACKET W/ANCHOR, elevator drive belt tightener sheave for grain tank machines

1шт.

3/8 X 3/4 MACH BOLT W/NUT

6шт.

3/8 LOCK WASHER

6шт.

23

629176R1

BOLT, elevator drive belt tightener sheave adjusting

1шт.

24

629178R1

BOLT, elevator drive belt tightener sheave

1шт.

5/8 C-Z NUT

1шт.

5/8 C-Z LOCK WASHER

1шт.

12258R1

WASHER

21/32 X 1-1/4 X 11 GA WASHER

4шт.

25

629168R1

STIFFENER, elevator drive jackshaft outer bearing support

1шт.

3/8 X 3/4 CRG BOLT W/NUT

6шт.

3/8 X 3/4 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

10шт.

26

627941R91

HOUSING ASSY, grain elevator, Not rice w/bagger att

1шт.

26

936034R91

HOUSING ASSY, grain elevator, rice w/bagger att, Serial no. and above

1шт.

5/16 X 1/2 CRG BOLT W/NUT

10шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

10шт.

Q397

WASHER

11/32 X 1 X 16 GA WASHER

10шт.

27

629192R1

PIPE

SPACER, elevator head

1шт.

28

629164R2

SPROCKET ASSY.

SPROCKET AND PULLEY, elevator jackshaft drive, 38-T

1шт.

60365H

BOLT,Hex, 3/8" - 16 x 1", Gr 8

SCREW, 3/8 x 1 C-Z cap

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

29

CHAIN, elevator jackshaft drive roller, Order 71 links of 5/8 pitch roller chain from a 10-ft roll marked 1791D and one connecting link 1310D

1шт.

30

565442R91

SPROCKET

ASSY, elevator drive chain tightener

1шт.

1/2 X 2-1/2 CRG BOLT W/NUT

1шт.

1/2 LOCK WASHER

1шт.

12026R1

WASHER

17/32 X 1-1/4 X 16 GA WASHER

6шт.

M83536

WASHER

17/32 X 1-1/4 X 11 GA SQ-HOLE WASHER

1шт.

31

571425R1

FLANGED BEARING

bearing

4шт.

3/8 X 3/4 CRG BOLT W/NUT

6шт.

3/8 LOCK WASHER

6шт.

32

617668R91

BALL BEARING

ball

2шт.

33

557995R11

COLLAR

W/SET SCREW ASSY, locking

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

5/16 X 5/16 CUP-PT SET SCREW

2шт.

34

629166R1

SPROCKET ASSY.

SPROCKET, elevator jackshaft driven, 38-T

1шт.

5/16 JAM NUT

2шт.

102883

SET SCREW

5/16 X 3/4 SQ-HD CUP-PT SET SCREW

1шт.

35

117977

WOODRUFF KEY

KEY, 5/16 x 1 Woodruff

1шт.

36

629167R1

SHAFT

JACKSHAFT, elevator drive, Serial no. 16129 and below, For machines w/belt elevator drive serial no. 16130 and above

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1 C-Z cap

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

477589R1

WASHER

13/32 x 1-1/2 x 11 ga C-Z

1шт.

37

631653R91

SUPPORT W/HUB, elevator drive jackshaft outer bearing, For grain tank machines

1шт.

38

28395H

SPRING

elevator drive slip clutch

5шт.

39

569880R1

HOLDER, elevator drive slip clutch spring, Serial no. 16129 and below, For machines w/belt elevator drive serial no. 16130 and above

1шт.

40

U1288

RATCHET

elevator drive slip clutch, Serial no. 16129 and below, For machines w/belt elevator drive serial no. 16130 and above

2шт.

41

629170R1

HUB

elevator drive slip clutch, Serial no. 16129 and below, For machines w/belt elevator drive serial no. 16130 and above

1шт.

42

627988R1

SHEAVE, elevator drive, regular, Serial no. 16129 and below, For machines w/belt elevator drive serial no. 16130 and above

1шт.

42

936394R1

PULLEY, elevator drive, fast speed, Serial no. 16129 and below, For machines w/belt elevator drive serial no. 16130 and above

1шт.

3/8 X 3-1/4 DLD CRG BOLT

4шт.

NLS

NO LONGER SERVICED

3/8 C-Z slt hex.

4шт.

3/32 X 3/4 COT PIN

4шт.

Q1577

13/32 X 3/4 X 16 GA WASHER

8шт.

Q1505

WASHER

13/32 X 1 X 16 GA WASHER

4шт.

43

627736R1

BUSHING

elevator drive slip clutch, Serial no. 16129 and below, For machines w/belt elevator drive serial no. 16130 and above

1шт.

44

FLIGHT, elevator chain, steel, Order flight assy, 936289R91, Ref no. 46, elevator chain, flight special

1шт.

45

62SH-1

LINK, attaching, steel, For use with no. 62 steel chain, elevator chain flight special

1шт.

46

936289R91

RUBBER FLIGHT

FLIGHT W/ATTACHING LINK, elevator chain, steel, elevator chain flight special

1шт.

47

62SH-1

LINK, attaching, steel, For use with no. 62 steel chain, Serial no. 8023 and below

1шт.

48

62

LINK ASSY.

LINK, plain, steel, For use with no. 62 steel chain, Serial no. 8023 and below

1шт.

49

936037R1

FLIGHT, grain elevator conveyor chain, rice w/bagger, Serial no. 8023 and below

1шт.

49

627987R1

RUBBER FLIGHT

FLIGHT, grain elevator conveyor chain, Not rice w/bagger attachment, Serial no. 8023 and below

1шт.

558430R1

RIVET

5/16 X 19/32 OVAL-HD TUBULAR RIVET

1шт.

50

628141R91

FLIGHT W/ATTACHING AND PLAIN LINK, grain elevator conveyor chain, Serial no., Serial Range: 501-2195

1шт.

581290R1

RIVET

5/16 X 11/16 OVAL-HD TUBULAR RIVET

1шт.

50

936288R91

RUBBER FLIGHT

FLIGHT W/ATTACHING AND PLAIN LINK, grain elevator chain, Not rice w/bagger attachment, Serial no., Serial Range: 2196-8023

1шт.

581290R1

RIVET

5/16 X 11/16 OVAL-HD TUBULAR RIVET

1шт.

50

936278R91

FLIGHT W/ATTACHING AND PLAIN LINK, grain elevator chain, rice w/bagger att, Serial no. 8023 and below

1шт.

581290R1

RIVET

5/16 X 11/16 OVAL-HD TUBULAR RIVET

1шт.

51

62COL

LINK, plain, steel, For use with no. 62 steel chain, Serial no. 8023 and below

1шт.

52

627970R91

CHAIN (AG)

CHAIN W/FLIGHT, grain elevator conveyor, Serial no. 501 to 2195, Not bean special

1шт.

52

935919R91

CHAIN (AG)

CHAIN W/FLIGHT, grain elevator conveyor, Serial no. 2196 to 8023, Not bean special

1шт.

52

628142R91

CHAIN W/FLIGHT, grain elevator conveyor, bean special serial no., Serial Range: 501-2195

1шт.

52

936296R91

CHAIN W/FLIGHT, grain elevator conveyor, bean special serial no., Serial Range: 2196-8023

1шт.

52

936040R91

CHAIN W/FLIGHT, grain elevator conveyor, rice w/bagger att serial no., Serial Range: 4807-8023

1шт.

53

627989R91

BRACE W/PIPE, elevator lower, For grain tank machines

1шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

5/16 X 1-1/2 MACH BOLT W/NUT

4шт.

5/16 LOCK WASHER

8шт.

54

NOT USED

1шт.

55

NOT USED

1шт.

56

628535R1

SHIM

auger bearing shield

12шт.

57

589281R1

BRACKET

SHIELD, auger bearing

2шт.

5/16 X 3/4 MACH BOLT W/NUT

12шт.

5/16 LOCK WASHER

12шт.

58

564175R1

STRAP, grain auger trough side seal

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

1/4 X 1/2 WASHER-FACED CUTTING SCREW

10шт.

59

564174R1

SEAL

grain auger trough side

2шт.

60

627186R1

END

PLATE, grain auger trough LH

1шт.

1/4 NUT

7шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD MACH SCREW

6шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

7шт.

61

570989R1

STIFFENER, grain auger trough outer front seal

2шт.

62

936569R1

SEAL

grain auger trough outer front

2шт.

63

627189R91

SUPPORT W/PLATE, grain auger trough LH front

1шт.

5/16 X 1 CRG BOLT

2шт.

5/16 LOCK WASHER

2шт.

64

627185R1

ASSEMBLY

TROUGH, grain auger, Not bean special

1шт.

64

628656R1

SIEVE

TROUGH, gain auger, bean special

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

1/4 NUT

17шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

17шт.

1/4 LOCK WASHER

17шт.

5/16 LOCK WASHER

2шт.

65

627190R91

SUPPORT W/PLATE, grain auger trough RH front

1шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

66

936205R91

AUGER W/SHAFT, grain, Serial no. 9956 and below

1шт.

66

153031C91

AUGER

ASSY, grain, Serial no. 9957 and above

1шт.

615191R1

WASHER

29/32 X 1-1/4 X 16 GA WASHER

1шт.

67

935948R1

SEAL, grain auger trough extension

1шт.

68

627182R91

CLAMP

EXTENSION W/TIE, grain auger trough, Not bean special

1шт.

68

628644R91

CLAMP

EXTENSION W/TIE, grain auger trough, bean special

1шт.

1/4 X 1-1/4 MACH BOLT W/NUT

2шт.

1/4 LOCK WASHER

2шт.

69

629193R1

SPROCKET ASSY.

SPROCKET, elevator conveyor chain, 6-T, Serial no. 7223 and below

1шт.

69

150719C91

SPROCKET ASSY.

SPROCKET ASSY, elevator conveyor chain, 6-T, Serial no. 7224 and above

1шт.

1/8 X 3/4 COTTER PIN

1шт.

Q3515

HEADED PIN,1/4" x 1 5/8"

1/4 X 1-5/8 DLD PIN

1шт.

70

Q10

KEY,1/4" Sq x 1 3/8"

1/4 x 1/4 x 1-3/8 straight

1шт.

71

627974R91

BOOT

W/HINGE, grain elevator, grain, Serial no. 9956 and below

1шт.

71

628971R91

BOOT W/HINGE, grain elevator, rice, Serial no. 9956 and below

1шт.

71

153021C91

BOOT

ASSY, grain elevator, grain, windrow special and bean, Serial no., Serial Range: 9957-13062

1шт.

71

157080C91

BOOT

ASSY, grain elevator, Serial no. 13063 and above

1шт.

71

153023C91

BOOT ASSY, grain elevator, rice, Serial no., Serial Range: 9957-13062

1шт.

71

157081C91

BOOT

ASSY, grain elevator, rice, Serial no. 13063 and above

1шт.

1/4 X 1-1/4 CRG BOLT W/NUT

1шт.

935735R1

WING NUT

1/4 WING NUT

1шт.

1/4 LOCK WASHER

1шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

1шт.

72

628485R1

PIN, elevator boot door hinge, grain

1шт.

72

586657R1

PIN

elevator boot door hinge, rice

1шт.

73

627996R91

DOOR

W/CLIP, elevator boot, grain and windrow special, Serial no. 9956 and below

1шт.

73

628640R91

DOOR W/CLIP, elevator boot, bean special, Serial no. 9956 and below

1шт.

73

628976R91

DOOR W/CLIP, elevator boot, rice, Serial no. 9956 and below

1шт.

73

153009C91

DOOR ASSY, grain elevator boot, grain and windrow special, Serial no., Serial Range: 9957-13062

1шт.

73

153011C91

DOOR ASSY, grain elevator boot, rice, Serial no., Serial Range: 9957-13062

1шт.

73

153013C91

DOOR ASSY, grain elevator boot, bean special, Serial no., Serial Range: 9957-13062

1шт.

73

157083C1

DOOR

grain elevator boot, grain and windrow special, Serial no. 13063 and above

1шт.

73

157254C1

DOOR

grain elevator boot, bean special, Serial no. 13063 and above

1шт.

73

157084C1

DOOR

grain elevator boot, rice, Serial no. 13063 and above

1шт.

1/4 X 1-1/4 CRG BOLT

1шт.

935735R1

WING NUT

1/4 WING NUT

1шт.

1/4 LOCK WASHER

1шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

2шт.

74

627175R91

PLATE W/FLANGE, grain auger trough RH

1шт.

1/4 NUT

7шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-MACH SCREW

6шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

7шт.

75

627188R1

SUPPORT, grain auger trough rear RH

1шт.

5/16 X 1 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

3шт.

76

628639R1

BRACKET, grain auger trough RH rear

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

77

568328R1

BAR

SEAL, auger trough bottom

2шт.

78

564176R1

SEAL

grain auger trough side rear

2шт.

79

564117R1

STRAP, grain auger trough side rear seal

2шт.

1/4 NUT

4шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

4шт.

1/4 LOCK WASHER

4шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

4шт.

80

568643R1

SEAL

grain auger trough rear

1шт.

81

568644R1

ANGLE, grain auger trough rear seal

1шт.

82

628638R1

BRACKET, grain auger trough LH rear

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

83

627187R1

SUPPORT, grain auger trough rear LH

1шт.

5/16 X 1 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

84

653925R91

VALVE BLOCK

COVER W/PLATE, grain auger trough, bean special

1шт.

85

570669R1

ANGLE, grain auger trough rear cross, bean special

1шт.

5/16 X 3/4 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

86

U16249

PIN, grain elevator head door hinge, Serial no. 4644 and above

1шт.

87

936553R1

STRAP, grain elevator conveyor chain tightener bolt, Serial no. 4644 and above

1шт.

88

571424R1

FLANGE

grain auger bearing

4шт.

5/16 X 3/4 CRG BOLT W/NUT

6шт.

5/16 LOCK WASHER

6шт.

89

658006R11

COLLAR

W/SET ASSY, locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT SET SCREW

2шт.

90

564991R91

BEARING

ball

2шт.

91

611421R1

BOLT,Hex, 7/16" - 14 x 3 1/2", Full Thd

elevator conveyor chain tightener

2шт.

7/16 C-Z NUT

2шт.

92

939241R11

PULLEY ASSY.

PULLEY ASSY, elevator driven, Serial no. 7224 to 16129, For machines w/belt elevator drive serial no. 16130 and above

1шт.

93

939278R1

HUB

elevator driven pulley, Serial no. 7224 and above

1шт.

18474R1

BOLT,Hex, 5/16" - 18 x 1", Gr 2

5/16 X 1 C-Z MACH BOLT W/NUT

4шт.

114502

JAM NUT,Jam, 5/16"-18, G5

4шт.

102883

SET SCREW

5/16 X 3/4 CUP-PT SET SCREW

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

94

939241R11

PULLEY ASSY.

PULLEY ASSY, grain hopper leveling auger driven, Serial no. 7224 to 16129, For machines w/belt elevator drive serial no. 16130 and above

1шт.

95

939279R1

HUB

grain hopper leveling auger driven pulley, Not for use w/bagger att, Serial no. 7224 and above

1шт.

5/16 X 1 C-Z HEX-HD MACH W/NUT

4шт.

5/16 X 3/4 CUP-PT SET SCREW

2шт.

5/16 C-Z LOCK WASHER

4шт.

5/16 JAM NUT

2шт.

96

150705C91

CONVEYOR

CHAIN W/FLIGHT GRAIN ELEVATOR CONVEYOR, roller chain, Not bean special, Serial no. 8024 and above

1шт.

96

150709C91

CONVEYOR

CHAIN W/FLIGHTS GRAIN ELEVATOR CONVEYOR, roller chain, bean special, Serial no. 8024 and above

1шт.

96

150714C91

CHAIN W/FLIGHTS GRAIN ELEVATOR CONVEYOR, roller chain, rice w/bagger, Serial no. 8024 and above

1шт.

97

631253R91

LINK

plain, roller chain, Serial no. 8024 and above

1шт.

98

150722C91

LINK

attachment, roller chain, Serial no. 8024 and above

1шт.

99

588562R91

CHAIN LINK

LINK, offset roller, roller chain, Serial no. 8024 and above

1шт.

100

150713C1

STEEL FLIGHT

FLIGHT, elevator chain, roller chain, Not rice special w/bagger attachment, Serial no. 8024 and above

1шт.

100

150741C1

FLIGHT, steel, bean special

2шт.

581290R1

RIVET

5/16 X 11/16 TUBULAR RIVET

1шт.

100

150716C1

FLIGHT, elevator chain, roller chain, rice special w/bagger attachment, Serial no. 8024 and above

1шт.

581290R1

RIVET

5/16 X 11/16 TUBULAR RIVET

1шт.

101

150717C91

RUBBER FLIGHT

FLIGHT W/ATTACHING AND PLAIN LINK, grain elevator chain, roller chain, Not rice w/bagger attachment, Serial no. 8024 and above

1шт.

101

150718C91

FLIGHT W/ATTACHING AND PLAIN LINK, grain elevator chain, special, roller chain, rice w/bagger attachment, Serial no. 8024 and above

1шт.

102

150713C1

STEEL FLIGHT

FLIGHT, elevator chain, steel, For use w/roller chain, elevator chain flight special, Serial no. 8024 and above

1шт.

581290R1

RIVET

5/16 X 11/16 OVAL HD TUBULAR RIVET

1шт.

103

150722C91

LINK

ATTACHMENT, For use w/roller chain, Serial no. 8024 and above

1шт.

104

150740C91

STEEL FLIGHT

FLIGHT ASSY, grain elevator, steel, For use w/roller chain, regular for bean special, Serial no. 8024 and above

1шт.

105

937913R91

DRAG LINK

LINK, connecting, For use w/roller chain, Serial no. 8024 and above

1шт.

106

152792C1

GRIP, elevator boot door clamp, Serial no., Serial Range: 9957-13062

1шт.

107

152789C91

CLAMP ASSY, elevator boot door, Serial no., Serial Range: 9957-13062

1шт.

1/4 X 1/2 C-Z CRG BOLT W/NUT

4шт.

1/4 C-Z LOCKWASHER

4шт.

108

153049C1

SPACER

grain auger shaft, Serial no. 9957 and above

1шт.

109

155909C1

LATCH

elevator boot door

1шт.

Q711

HEADED PIN,1/4" x 1 1/4"

PIN, 1/4 x 1-1/4 std hd dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

110

664360R1

BOLT,U, 1/4" - 20 x 69.65"

elevator boot door U

1шт.

20244R1

LOCK NUT,1/4"-20

NUT, 1/4 hex w/nylon insert

1шт.
