Запчасти Case IH 403 (081) - SHOE, SHOE SIEVE (74) - CLEANING

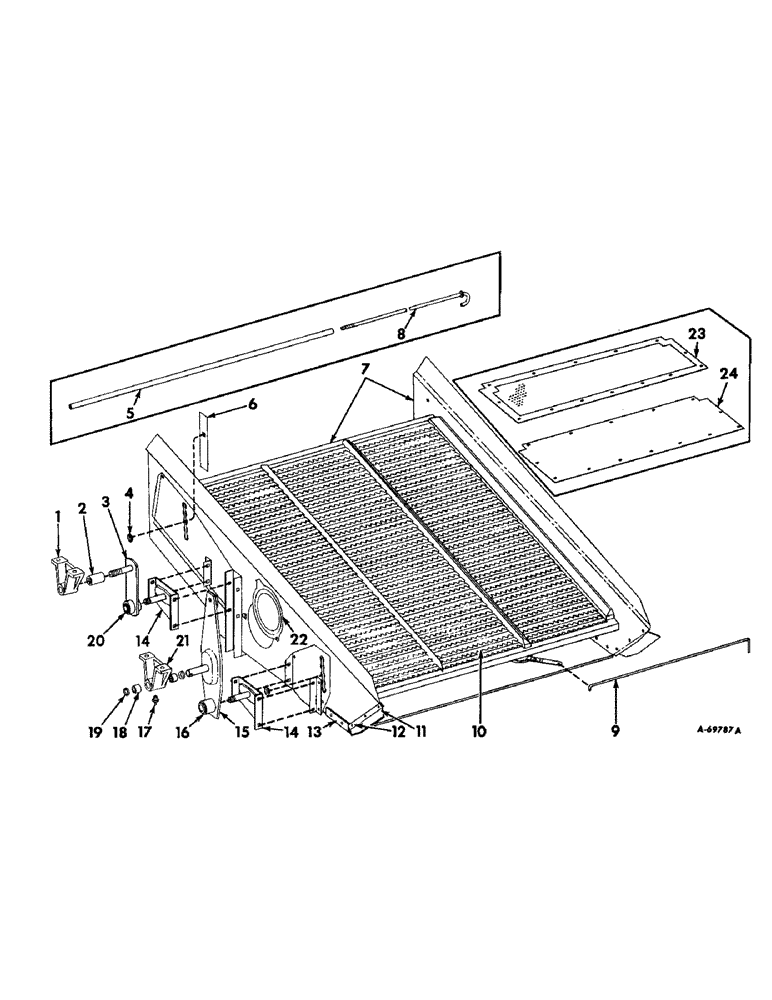

Схема запчастей Case IH 403 - (081) - SHOE, SHOE SIEVE (74) - CLEANING
12
8
14
3
5
13
19
21
23
2
24
1
16
18
17
14
9
6
20
7
15
4
22
11
10

Артикул

Название

Примечание

Количество

1

627717R11

BRACKET W/BUSHING ASSY, shoe hanger front, Includes ref no. 2

2шт.

3/8 X 1-1/4 CRG BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

2

627719R91

COMPOSITE RING

BUSHING ASSY, hanger bracket

2шт.

3

627720R91

CLAMP

ARM W/BUSHING ASSY, shoe front hanger, Includes ref no. 20

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

578274R1

WASHER

21/32 X 1 X 11 GA WASHER

2шт.

4

569946R1

WASHER

shoe sieve adjusting

4шт.

5

634350R1

PIPE

shoe sieve adjusting bolt spacer

2шт.

6

564207R1

BAR

SEAL, shoe sieve

4шт.

7

568616R91

SHOE

W/DOOR, seal and strip assy, Not bean special, Includes ref nos. 11, 12, 13 and 22

1шт.

7

570878R91

SHOE W/DOOR, seal and strip assy, bean assy, Includes ref nos. 11, 12, 13, and 22

1шт.

557109R1

WASHER

17/64 X 1/2 X 16 GA WASHER

2шт.

8

634349R1

BOLT,5/16" - 18 x 36.20"

shoe sieve adjusting

2шт.

5/16 NUT

2шт.

5/16 LOCK WASHER

2шт.

11/32 X 3/4 X 16 GA WASHER

4шт.

9

570642R1

ROD

shoe sieve adjusting, Not for use with 1/2 in. hole sieve

1шт.

1/8 X 1 COTTER PIN

1шт.

10

568632R93

SIEVE

ASSY, shoe, Serial no. 13062 and below

1шт.

10

159318C91

SIEVE

ASSY, shoe, Serial no. 13063 and above

1шт.

10

569614R91

SIEVE ASSY, shoe, 1/2 in. hole, special

1шт.

11

564205R1

SEAL

side rear

2шт.

12

564206R1

STRIP, rear seal

2шт.

13

564196R1

SEAL, lower rear

2шт.

14

631478R91

HANGER

W/STUD, shoe lower LH

2шт.

14

631479R91

SUSPENSION BLOCK

HANGER W/STUD, shoe lower RH

2шт.

5/16 X 3/4 CRG BOLT W/NUT

16шт.

5/8 NUT

4шт.

5/16 LOCK WASHER

16шт.

21/32 X 1-1/4 X 11 GA WASHER

4шт.

15

627565R91

ARM

W/BUSHING ASSY, grain pan and shoe rear hanger, Includes ref no. 16

2шт.

3/16 X 1-1/4 COTTER PIN

1шт.

23/32 X 1 X 16 GA WASHER

4шт.

16

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, hanger arm hub

2шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication

2шт.

18

629631R91

NEEDLE BEARING

BEARING, needle

4шт.

19

629632R91

RETAINER

OIL SEAL, shoe repair hanger

4шт.

20

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

ASSY, arm hub

2шт.

21

629644R1

BRACKET

shoe hanger rear

2шт.

3/8 X 1-1/4 CRG BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

22

551104R1

FLAP

DOOR, shoe inspection

2шт.

23

570664R1

SCREEN, shoe bottom, bean special

1шт.

NO. 10 SQ NUT

1шт.

NO. 10 X 1/2 SLT-RD-HD MACH SCREW

1шт.

NO. 10 LOCK WASHER

1шт.

615002R1

WASHER

13/64 X 1/2 X 16 GA WASHER

1шт.

24

570663R1

COVER, shoe bottom, bean special

1шт.
