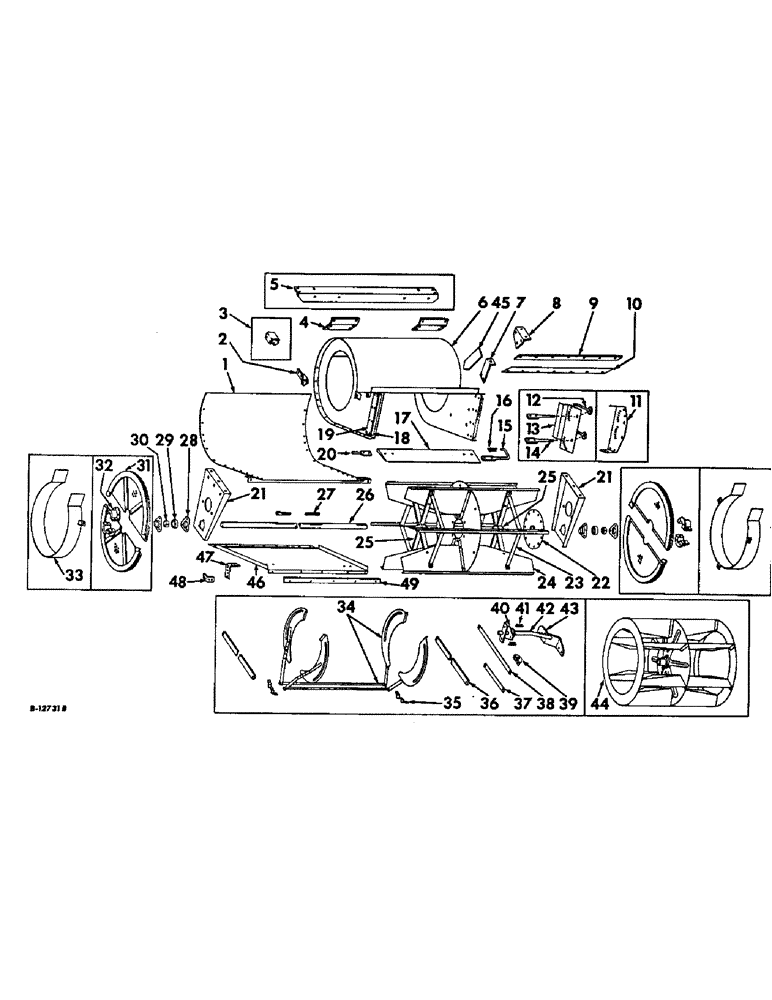

Запчасти Case IH 403 (078) - FAN AND FAN HOUSING, SEPARATOR FAN ROTARY SCREEN ATTACHMENT (74) - CLEANING

1

574285R91

WRAPPER W/STIFFENER, fan housing lower

1шт.

1/4 NUT

1шт.

1/4 X 1/2 SLT-RD-HD MACH SCREW

4шт.

1/4 X 3/4 SLT-RD-HD MACH SCREW

4шт.

1/4 LOCK WASHER

1шт.

2

629797R1

SUPPORT, fan housing LH rear

1шт.

7/16 X 1 CRG BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.

3

NOT USED

1шт.

4

629796R1

BRACKET, fan housing front support

2шт.

3/8 X 3/4 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

5

NOT USED

1шт.

6

155688C91

HOUSING

W/SIDES, fan, Includes ref. nos. 19 and 45

1шт.

5/16 X 1/2 CRG BOLT W/NUT

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

1/4 NUT

1шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD MACH SCREW

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

1шт.

5/16 LOCK WASHER

1шт.

136661H

WASHER

17/64 X 1 X 16 GA WASHER

1шт.

7

629798R1

SUPPORT, fan housing RT rear

1шт.

7/16 X 1 CRG BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.

8

NOT USED

1шт.

9

568982R1

SUPPORT, center seal

2шт.

1/4 NUT

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

1шт.

10

155691C1

SEAL

grain pan center

1шт.

11

570605R1

QUADRANT, wind regulator control

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

1/4 NUT

5шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

5шт.

1/4 LOCK WASHER

5шт.

5/16 LOCK WASHER

5шт.

12

NOT USED

1шт.

13

NOT USED

1шт.

14

NOT USED

1шт.

15

565473R1

ROD, deflector blade RH, 1 used regular, 2 used windrow special

1шт.

1/4 NUT

2шт.

1/8 X 1 COTTER PIN

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

1шт.

13/32 X 1 X 16 GA WASHER

2шт.

16

388

SPRING, deflector rod, 1 used regular, 2 used windrow special

1шт.

17

587506R1

DEFLECTOR, fan wind, special

1шт.

17

570604R1

DEFLECTOR, fan wind, regular

1шт.

18

155682C1

SPACER

rear seal

2шт.

1/8 X 15/16 FLAT HD RIVET

16шт.

19

936566R1

SEAL

rear, Serial no. 9956 and below

2шт.

20

565474R1

ROD

deflector blade LH, 1 used regular, 2 used windrow special

1шт.

1/4 NUT

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

1шт.

21

627397R1

BRACKET, fan shaft bearing

2шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

3/8 X 3/4 CRG BOLT W/NUT

6шт.

1/2 X 1 CRG BOLT W/NUT

6шт.

1/2 X 1-1/4 CRG BOLT W/NUT

6шт.

5/16 LOCK WASHER

4шт.

3/8 LOCK WASHER

6шт.

1/2 LOCK WASHER

6шт.

11/32 X 1 X 16 GA WASHER

4шт.

17/32 X 1 X 11 GA

6шт.

22

NOT USED

1шт.

23

582751R1

STRAP, fan blade tie

12шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

24

569014R91

BLADE W/DIVIDER, fan, Serial no. 2195 and below

6шт.

24

634129R91

BLADE W/DIVIDER, fan, Serial no., Serial Range: 2196-16129

6шт.

24

164217C91

BLADE

ASSY, fan, Serial no. 16130 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 X 3/4 MACH W/NUT

1шт.

5/16 LOCK WASHER

1шт.

25

161335C91

U-JOINT SPIDER

SPIDER ASSY, fan

2шт.

26

569013R1

SHAFT

fan

1шт.

27

Q3638

KEY,Gib, 5/16" Sq x 2" Tap

5/16 x 5/16 x 2 sq-hd tapered gib

2шт.

28

571425R1

FLANGED BEARING

bearing

4шт.

29

557114R91

BEARING

ball

2шт.

30

557115R11

COLLAR

COLLAR W/SET SCREW ASSY, locking

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

5/16 X 5/16 CUP-PT SET SCREW

2шт.

31

632806R91

DEFLECTOR

SCREEN W/RIM, fan half, Separator fan rotary screen att

4шт.

5/16 X 1/2 MACH BOLT

8шт.

5/16 LOCK WASHER

8шт.

32

632804R1

HUB, rotary screen half, Separator fan rotary screen att

4шт.

5/16 X 1-1/2 MACH BOLT W/NUT

4шт.

5/16 LOCK WASHER

4шт.

33

NOT USED

1шт.

34

568988R91

REGULATOR W/ROD AND STRAP, wind

2шт.

35

14688K

STRAP, regulator rod upper

2шт.

36

568977R1

GUIDE, regulator

2шт.

1/4 X 3/4 SLT-RD-HD MACH SCREW

4шт.

1/4 HEX. NUT

4шт.

1/4 LOCK WASHER

4шт.

Q399

WASHER

11/32 X 1 X 16 GA WASHER

12шт.

37

632713R1

STRAP, connecting rear

1шт.

1/8 X 3/4 COTTER PIN

4шт.

33453A

5/16 X 1/2 DLD PIN

4шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

38

632712R1

STRAP, connecting front

1шт.

39

632711R1

SUPPORT, regulator lever inner

1шт.

1/4 NUT

2шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD MACH SCREW

2шт.

1/4 LOCK WASHER

2шт.

40

633372R1

PLATE, regulator tension

1шт.

41

22683VA

SPRING, regulator lever

2шт.

42

632714R91

LEVER W/PLATE AND WASHER, regulator

1шт.

43

632710R1

SUPPORT, wind regulator lower

1шт.

5/16 X 1-3/4 CRG BOLT W/NUT

2шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

3/8 LOCK WASHER

2шт.

11/32 X 1 X 16 GA WASHER

4шт.

44

NOT USED

1шт.

45

155678C1

SEAL

grain pan and shoe side

2шт.

13 GA X 7/8 NAIL, Serial no. 9957 and above

1шт.

46

165770C91

SUPPORT

ASSY, fan housing deflector

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z flange lock

13шт.

937059R1

SCREW,Serr, M10 x 70mm, Cl 10.9

1/4 x 1/2 C-Z sl-truss-hd

13шт.

47

165774C1

ANGLE, fan housing deflector support adj

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z whiz lock

2шт.

48

165775C1

ANGLE, fan housing deflector support anchor

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 1/4 x 3/4 C-Z hex-hd mach

4шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

4шт.

49

165773C1

SEAL

SEAL, fan housing deflector support

1шт.

938016R1

FLANGE NUT,Flg, USR, 1/4"-20

1/4 C-Z whiz lock

5шт.

937875R1

SCREW,Serr, 1/4" - 20

1/4 x 3/4 C-Z whiz lock

5шт.
