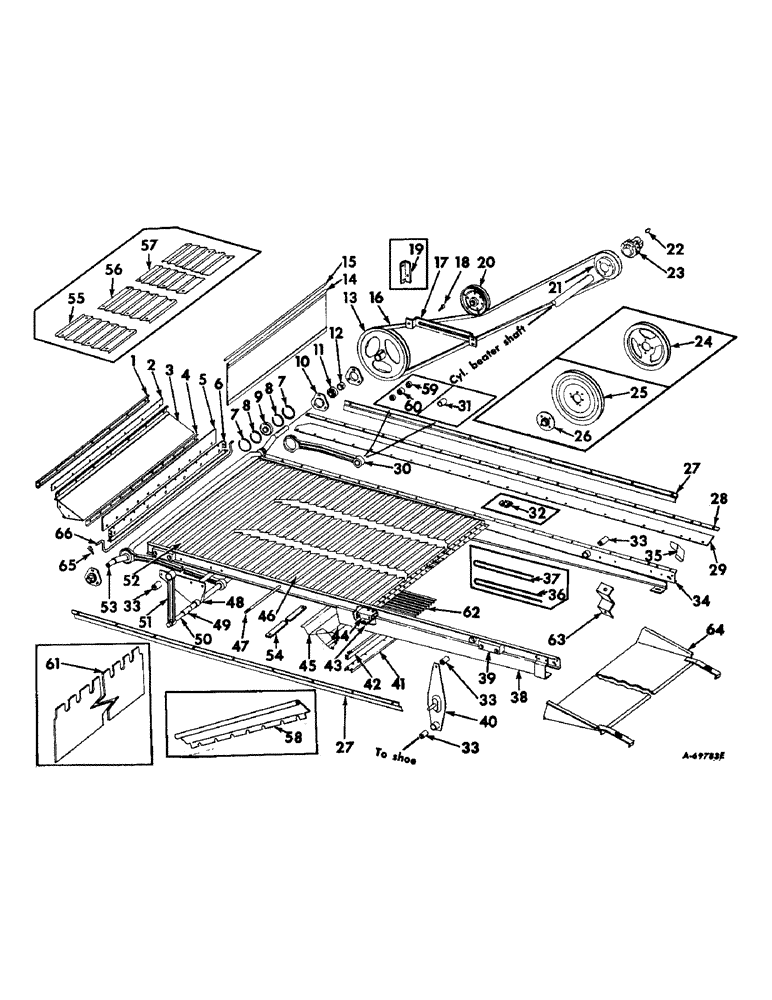

Запчасти Case IH 403 (074) - GRAIN PAN AND SHAKER SHAFT DRIVE, FAST SPEED SHAKER SHAFT DRIVE ATTACHMENT (74) - CLEANING

1

568473R1

STRIP, front plate seal

1шт.

1/4 NUT

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

1шт.

615009R1

WASHER

17/32 X 3/4 X 16 GA WASHER

1шт.

2

568472R1

SEAL

SEAL, grain pan front plate, Not windrow special

1шт.

2

634204R1

SEAL

grain pan front plate, For windrow special

1шт.

3

568607R91

PLATE W/SUPPORT, grain pan front seal, Not bean special

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 X 1/2 MACH BOLT

2шт.

5/16 X 1 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

4шт.

4

568599R1

STRAP

front seal

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

445117

DIODE

1/4 SPRING NUT

1шт.

5

568598R1

SEAL

pan front

1шт.

6

629640R1

TIE, pan front cross

1шт.

135287

RIVET,Truss Hd, 3/16" x 9/16"

3/16 x 9/16 magon box

2шт.

7

359894R1

RING, SNAP

SNAP RING, shaker shaft pitman bearing external

4шт.

8

UA20551

RING

SNAP RING, shaker shaft pitman bearing internal

4шт.

9

554553R91

BALL BEARING,45mm ID x 75mm OD x 16mm W

ball

2шт.

10

571425R1

FLANGED BEARING

shaker shaft bearing

4шт.

11

455960R91

BALL BEARING

BEARING, ball

2шт.

12

557115R11

COLLAR

COLLAR W/SET SCREW ASSY, locking

2шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

5/16 X 5/16 CUP-PT SET SCREW

2шт.

13

631835R1

PULLEY

SHEAVE, shaker shaft driven, Not bean special

1шт.

13

632700R1

SHEAVE, shaker shaft driven, bean special

1шт.

14

569109R21

CANVAS

FLAP, separator grain pan check

1шт.

15

569108R1

ROD

separator check flap

1шт.

1/8 X 3/4 COT. PIN

2шт.

16

564494R2

V-BELT,0.88" W

Shaker shaft drive, Not bean special 0.88" W

1шт.

16

550950R1

V-BELT,0.88" W

Shaker shaft driven, Bean special 0.88" W

1шт.

16

632702R1

V-BELT,0.88" W

Shaker shaft drive, Fast speed shaker shaft driven sheave attachment 0.88" W

1шт.

17

627701R1

SUPPORT, shaker shaft drive belt tightener sheave

1шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

2шт.

3/8 LOCK WASHER

1шт.

18

Q3932

KEY,Gib, 5/16" Sq x 2"

5/16 x 5/16 x 2 gib

1шт.

19

NOT USED

1шт.

20

566519R91

PULLEY

SHEAVE, drive belt tightener

1шт.

1/2 X 2-1/2 CRG BOLT W/NUT

1шт.

1/2 LOCK WASHER

1шт.

17/32 X 1 X 16 GA WASHER

1шт.

PO10535

WASHER

17/32 X 1-1/4 X 11 GA WASHER

1шт.

Q303

17/32 X 1-1/2 X 11 GA SQ-HOLE WASHER

1шт.

21

631834R2

SHEAVE, shaker shaft drive

1шт.

22

163446C1

KEY

3/8 x 2-1/2 straight

1шт.

23

629718R2

HUB CAP

HUB, fan and straw rack drive sheave

1шт.

24

632701R1

SHEAVE, shaker shaft driven, fast speed shaker shaft driven sheave attachment

1шт.

25

NOT USED

1шт.

26

NOT USED

1шт.

27

627773R11

STRIP

W/BOLT, grain pan seal cover

2шт.

1/4 NUT

18шт.

1/4 LOCK WASHER

18шт.

28

568248R1

BAR

STRAP, side rail seal

2шт.

552897R1

SELF-TAP SCREW,1/4" - 20 x 1/2"

SCREW, 1/4 x 1/2 hex-hd self tap

44шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd mach

2шт.

938017R1

FLANGE NUT,Flg, USR, 5/16"-18

5/16 C-Z flange lock

2шт.

29

564132R1

SEAL

pan side rail

2шт.

30

568478R11

PITMAN W/BUSHING ASSY, shaker shaft, Includes ref. no. 31, Serial no. 7223 and below

2шт.

30

150830C11

PITMAN

ASSY, shaker shaft, Includes ref. nos. 59 and 60, Serial no. 7224 and above

2шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 str-lub

1шт.

31

568479R1

BUSHING

pitman, Serial no. 7223 and below

2шт.

32

632690R1

CLAMP, grain pan finger

21шт.

33

627555R91

BUSHING,16mm ID x 28.96mm OD x 44.45mm L

6шт.

34

629579R93

SUPPORT

RAIL ASSY, right side, Includes ref. no. 33

1шт.

1/4 X 1/2 CRG BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

589741R1

3/8 X 1-1/4 BOLT

3шт.

3/8 X 1-3/4 CRG BOLT W/NUT

4шт.

3/8 NUT

6шт.

5/8 - 18UNF X 2-1/2 CAP SCREW

1шт.

3/8 LOCK WASHER

4шт.

3/8 INTERNAL-TOOTH LOCK WASHER

3шт.

5/8 LOCK WASHER

1шт.

13/32 X 1 X 16 GA WASHER

5шт.

21-32 X 1-1/4 X 11 GA WASHER

1шт.

35

564108R1

DEFLECTOR

grain pan LH

2шт.

35

564109R1

DEFLECTOR

grain pan RH, Serial no. 7223 and below, regular, Serial no. 7224 and above, special

2шт.

36

632688R1

FINGER

long, Serial no. 13062 and below

7шт.

37

632689R1

FINGER

short, Serial no. 13062 and below

14шт.

38

629578R93

RAIL ASSY, left side ref no. 33

1шт.

1/4 X 1/2 CRG BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

589741R1

3/8 X 1-1/4 BOLT

3шт.

3/8 X 1-3/4 CRG BOLT W/NUT

4шт.

3/8 NUT

6шт.

5/8 - 18UNF X 2-1/2 CAP SCREW

1шт.

3/8 LOCK WASHER

4шт.

3/8 INTERNAL-TOOTH LOCK WASHER

3шт.

5/8 LOCK WASHER

1шт.

13/32 X 1 X 16 GA WASHER

5шт.

21/32 X 1-1/4 X 11 GA WASHER

1шт.

39

552883R2

STOP

BLOCK, grain pan

4шт.

40

627565R91

ARM

W/BUSHING ASSY, grain pan shoe rear hanger, Includes ref no. 33

2шт.

3/16 X 1-1/4 COTTER PIN

2шт.

23/32 X 1 X 16 GA WASHER

8шт.

556980R1

WASHER

13/64 x 3/4 x 16 GA

2шт.

41

626756R1

STIFFENER

sieve front

1шт.

42

568597R1

STOP, grain pan sieve front

1шт.

3/16 X 3/8 WAGON BOX RIVET

1шт.

3/16 X 1/2 B-HD RIVET

1шт.

43

632694R1

STIFFENER, finger support

1шт.

44

632692R1

SUPPORT, finger

1шт.

1/4 X 1/2 MACH BOLT W/NUT

1шт.

1/4 X 1 MACH BOLT W/NUT

1шт.

5/16 X 1/2 MACH BOLT W/NUT

1шт.

5/16 X 3/4 MACH BOLT W/NUT

1шт.

1/4 LOCK WASHER

1шт.

5/16 LOCK WASHER

1шт.

45

631193R91

PLATE W/NUT, grain pan center seal

1шт.

5/16 X 1/2 MACH BOLT W/NUT

1шт.

5/16 X 3/4 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

46

629642R91

PAN, grain, Includes ref nos 4, 5, 6, 28, 29, 32, 33, 34, 36, 37, 38, 41, 42, 43, 44, 45, 47, 48, 49, 52 and 54, Serial no., Serial Range: 501-2195

1шт.

46

155974C91

GRAIN PAN

PAN ASSY, grain, Includes ref nos. 4, 5, 6, 28, 29, 33, 34, 36, 38, 41, 42, 44, 45, 47, 48, 49, 52 and 54, Serial no. 2196 and above

1шт.

47

568623R1

ROD

cross tie

1шт.

1/4 NUT

2шт.

1/4 LOCK WASHER

2шт.

48

568611R92

SUPPORT W/BUSHING ASSY, grain pan front, Includes ref no. 49, Serial no., Serial Range: 501-4643

1шт.

48

654551R91

SUPPORT W/BUSHING ASSY, grain pan front, Includes ref no. 49, Serial no. 4644 and above

1шт.

16964R91

FITTING

1/4 90 deg lubrication

1шт.

49

584150R1

BUSHING

Serial no., Serial Range: 501-4643

2шт.

49

559154R1

BUSHING,25.45mm ID x 28.6mm OD x 25.4mm L

Serial no. 4644 and above

2шт.

50

627556R1

AXLE PIN

SHAFT, grain pan

1шт.

520175R1

CLIP

3/16 X 2-1/4 QUICK ATTACHABLE COTTER PIN

2шт.

1-1/32 X 2 X 16 GA WASHER

2шт.

51

627551R91

ARM W/BUSHING, grain pan, Includes ref no. 33, Serial no. 13062 and below

2шт.

51

156063C11

ARM

ASSY, grain pan front hanger, Includes ref no. 33, Serial no. 13063 and above

2шт.

5/8 X 3 MACH BOLT W/NUT

2шт.

576483R1

LOCK PIN,5/16" x 1 1/2", Slotted

Pin, 5/16" x 1 1/2", Slotted

2шт.

5/8 LOCK WASHER

1шт.

21/32 X 1-1/4 X 11 GA WASHER

2шт.

52

632697R91

ASSEMBLY

BOTTOM W/DIVIDER, grain pan, Not bean special

1шт.

52

632976R91

BOTTOM W/DIVIDER, grain pan, bean special

1шт.

1/4 X 1 MACH BOLT W/NUT

1шт.

1/4 LOCK WASHER

1шт.

53

568477R1

SHAFT, shaker

1шт.

54

634606R1

FILLER, grain pan sieve stop

1шт.

55

570684R1

COVER, grain pan bottom rear LH, bean special

1шт.

55

570685R1

COVER, grain pan bottom rear RH, bean special

1шт.

1/4 X 1/2 MACH BOLT

12шт.

NLS

NO LONGER SERVICED

1/4 SPRING NUT

6шт.

56

570683R1

COVER, grain pan bottom rear center, bean special

1шт.

1/4 X 1/2 MACH BOLT

6шт.

445117

DIODE

1/4 SPRING NUT

6шт.

57

570682R1

COVER, grain bottom front, bean special

1шт.

1/4 X 1/2 MACH BOLT

12шт.

NLS

NO LONGER SERVICED

1/4 SPRING NUT

12шт.

58

150162C1

EXTENSION, grain pan wind seal, special

1шт.

59

584912R91

OIL SEAL

OIL SEAL, Serial no. 7224 and above

4шт.

60

584164R91

NEEDLE BEARING

needle, Serial no. 7224 and above

2шт.

61

654916R1

COVER, grain pan finger, special

1шт.

62

155214C1

FINGER

grain pan

21шт.

17410R1

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

1/4 x 3/4 hex-hd mach

42шт.

109084

NUT,1/4"-20, G5

42шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

42шт.

63

NOT USED

1шт.

64

159979C91

DEFLECTOR ASSY, chaffer sieve return pan

1шт.

65

164298C1

BOLT, grain pan seal support scrapper rod eye

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

66

164299C1

ROD, grain pan seal support scrapper

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

4шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

4шт.
