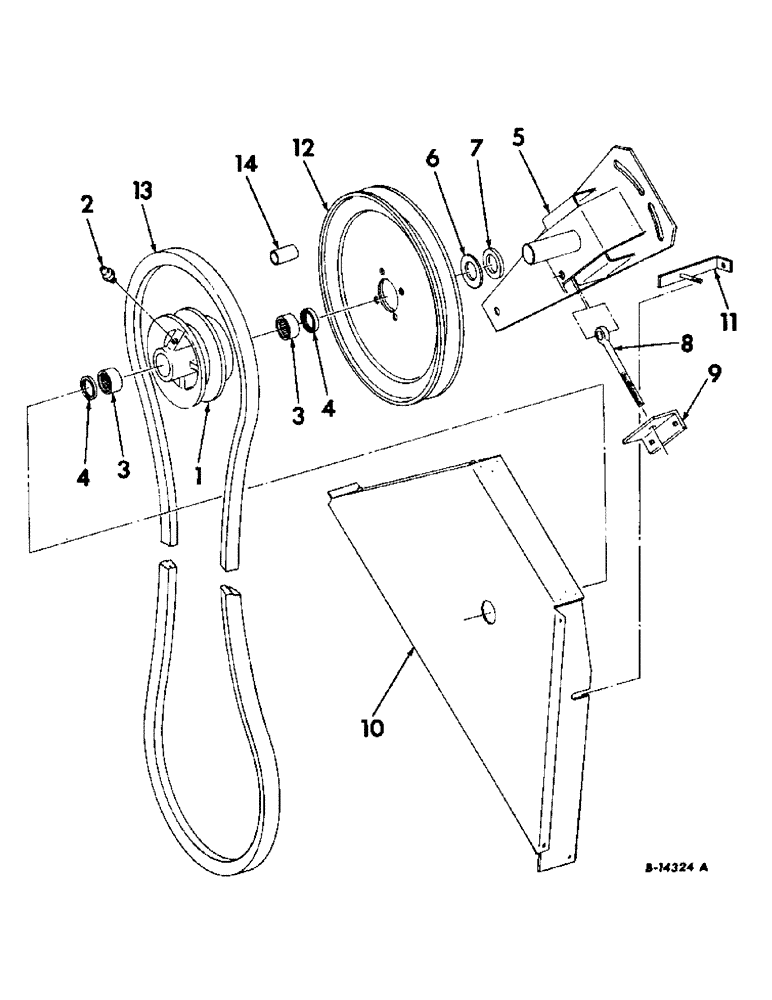

Запчасти Case IH 403 (328) - STRAW CHOPPER, SLOW SPEED ATTACHMENT, FOR USE IN CORN (73) - RESIDUE HANDLING

1

151068C11

PULLEY ASSY, chopper drive, Includes ref. nos. 3 and 4

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 X 3/4 C-Z

4шт.

2

108454

SEAL

FITTING, 1/4-29 PTF straight

1шт.

3

572181R91

NEEDLE BEARING,Needle, 38.09mm ID x 47.64mm OD x 25.4mm W

ASSY, chopper drive pulley needle

2шт.

4

564898R91

SEAL

ASSY, drive pulley brg oil

2шт.

5

151120C91

SUPPORT ASSY, intermediate shaft

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

1/2 X 1 C-Z CRG BOLT W/NUT

3шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

1шт.

19066R1

BOLT,1/2"-13 x 3", G2

1/2 X 3 C-Z NO. 3 PLOW BOLT W/NUT

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

6

967960R1

WASHER

intermediate shaft

3шт.

7

605990R1

WASHER, intermediate shaft

1шт.

8

151104C1

BOLT, belt tightener

1шт.

124589

BALL STUD,Hex, 5/8" - 11 x 2", Gr 5

5/8 C-Z NUT

2шт.

9

151125C1

ANGLE, belt tightener

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

3/8 X 1 C-Z CRG BOLT W/NUT

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

10

151167C91

SHIELD ASSY, intermediate shaft

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 X 1/2 C-Z CRG BOLT W/NUT

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

11

151148C11

SUPPORT ASSY, drive shield

1шт.

935736R1

NUT, WING

5/16 WING NUT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Q399

WASHER

11/32 X 1 X 16 GA WASHER

1шт.

12

150815C11

PULLEY ASSY, intermediate shaft driven

1шт.

18766R1

BOLT,Hex, 5/16"-18 x 1 3/4", G2

5/16 X 1-3/4 C-Z MACH BOLT W/NUT

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

151064C1

BELT, chopper drive

1шт.

14

U13039

SPACER

2шт.
