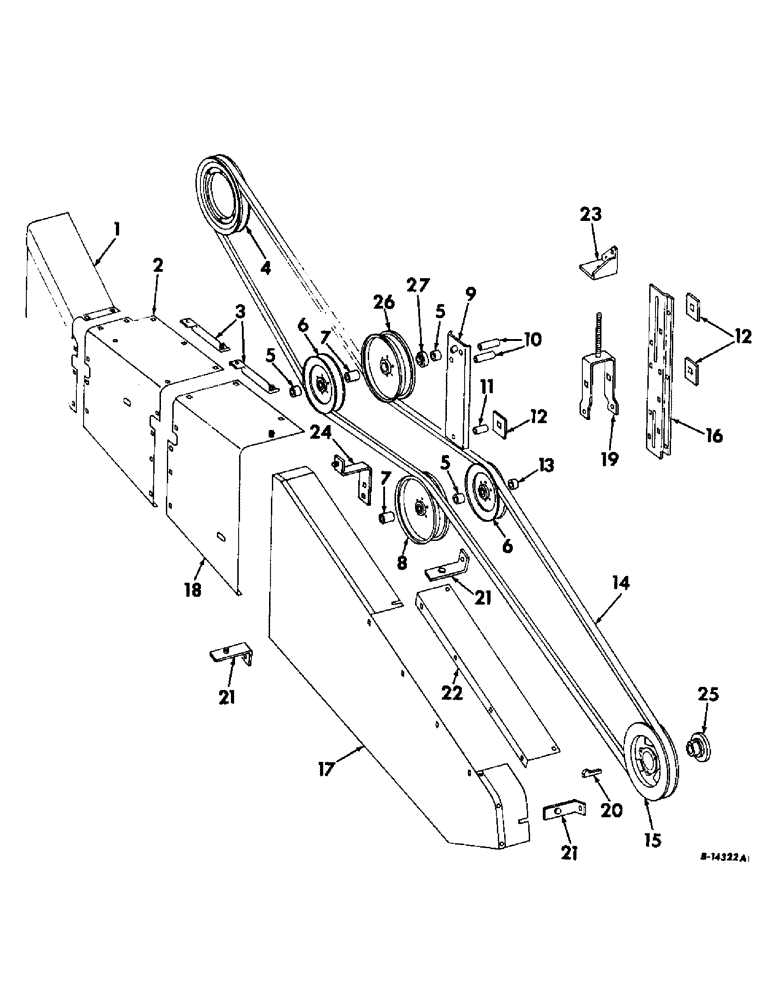

Запчасти Case IH 403 (326) - STRAW CHOPPER, DRIVE PARTS, SERIAL NO. 7224 AND ABOVE (73) - RESIDUE HANDLING

1

936142R91

SHIELD ASSY, drive belt center

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 X 1/2 C-Z CRG BOLT W/NUT

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

2

151103C1

SHIELD, drive belt center

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 X 1/2 C-Z CRG BOLT W/NUT

9шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

3/8 X 3/4 C-Z CRG BOLT W/NUT

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

9шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

3

936155R1

BRACE, drive belt center shield

2шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 X 1 C-Z MACH BOLT W/NUT

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

Q1505

WASHER

13/32 X 1 X 16 GA WASHER

1шт.

575807R1

WASHER

13/32 X 1 X 11 GA WASHER

1шт.

4

936161R1

PULLEY, drive, Not hydrostatic ground drive

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 X 1 C-Z CAP

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

554327R1

SPACER,7/8" Tube x 1"

pulley

2шт.

6

574097R91

PULLEY

idler

2шт.

7

576015R1

SPACER,7/8" Tube x 11/16"

pulley

2шт.

8

663887R91

PULLEY,203.2mm Idler Dia x 214.63mm OD x 48.42mm W

ASSY, tightener

1шт.

9

936154R1

CHANNEL, idler pulley

1шт.

3/8 X 3 C-Z HEX-HD MACH BOLT W/NUT

3шт.

5/8 X 4 C-Z CRG BOLT W/NUT

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

551177R1

WASHER

21/32 X 1-1/4 X 16 GA WASHER

1шт.

Q1594

WASHER,41/64" x 1 1/2" x .105", Sq Hole

21/32 X 1-1/2 X 12 GA SQ WASHER

1шт.

10

936153R1

SPACER

idler pulley bracket, Serial no. 9956 and below

2шт.

10

155588C1

SPACER,3/8" X-Strng Pipe x 2"

idler pulley bracket, Serial no. 9957 and above

1шт.

11

655543R1

SPACER

bracket

1шт.

12

936152R1

WASHER

idler mounting bracket stiffener

4шт.

13

583496R1

SPACER

pulley

2шт.

14

151063C1

V-BELT,241.87" L

chopper drive 241.87" L

1шт.

15

151066C1

PULLEY, driven

1шт.

16

151100C11

BRACKET ASSY, tightener

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, , w/nut Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

3/8 X 1 C-Z CRG BOLT W/NUT

3шт.

18479R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2", Gr 2

3/8 X 2 C-Z CRG BOLT W/NUT

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

17

151163C91

SHIELD ASSY, rotor pulley

1шт.

18

151162C91

SHIELD ASSY, belt rear

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

3/8 X 3/4 C-Z CRG BOLT W/NUT

1шт.

935736R1

NUT, WING

5/16 WING NUT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Q399

WASHER

11/32 X 1 X 16 GA WASHER

1шт.

19

151111C91

CLEVIS ASSY, tightener pulley

1шт.

20626R1

BOLT

5/8 X 4-3/4 C-Z CRG BOLT

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 C-Z NUT

1шт.

425-1410

JAM NUT,Jam, 5/8"-11, G5

5/8 JAM NUT

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

Q1594

WASHER,41/64" x 1 1/2" x .105", Sq Hole

21/32 X 1-1/2 X 12 GA WASHER

1шт.

20

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

gib

1шт.

21

151148C11

SUPPORT ASSY, drive shield

3шт.

935736R1

NUT, WING

5/16 WING NUT

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

Q399

WASHER

11/32 X 1 X 16 GA WASHER

3шт.

22

151102C1

COVER, rotor driven pulley shield

3шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 X 1/2 C-Z CRG BOLT W/NUT

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

23

151113C91

BRACKET ASSY, adjusting bolt

1шт.

24

151134C11

BRACE ASSY, rear shield

1шт.

935736R1

NUT, WING

5/16 WING NUT

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

Q399

WASHER

11/32 X 1 X 16 GA WASHER

1шт.

25

151065C1

HUB, pulley driven

1шт.

142680H

BOLT (SPREADER),Hex, 3/8"-16 x 2 1/2", G8

BOLT, Hex, 3/8"-16 x 2 1/2", G8

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

26

155074C91

PULLEY

idler, Serial no., Serial Range: 9957-13062

1шт.

26

156221C91

PULLEY ASSY.

PULLEY ASSY, front idler, Serial no. 13063 and above

1шт.

27

626899R91

NYLON BEARING,16.13mm ID x 47mm OD x 18.29mm W

BEARING ASSY, front idler pulley ball, Serial no. 9957 to 13062

1шт.
