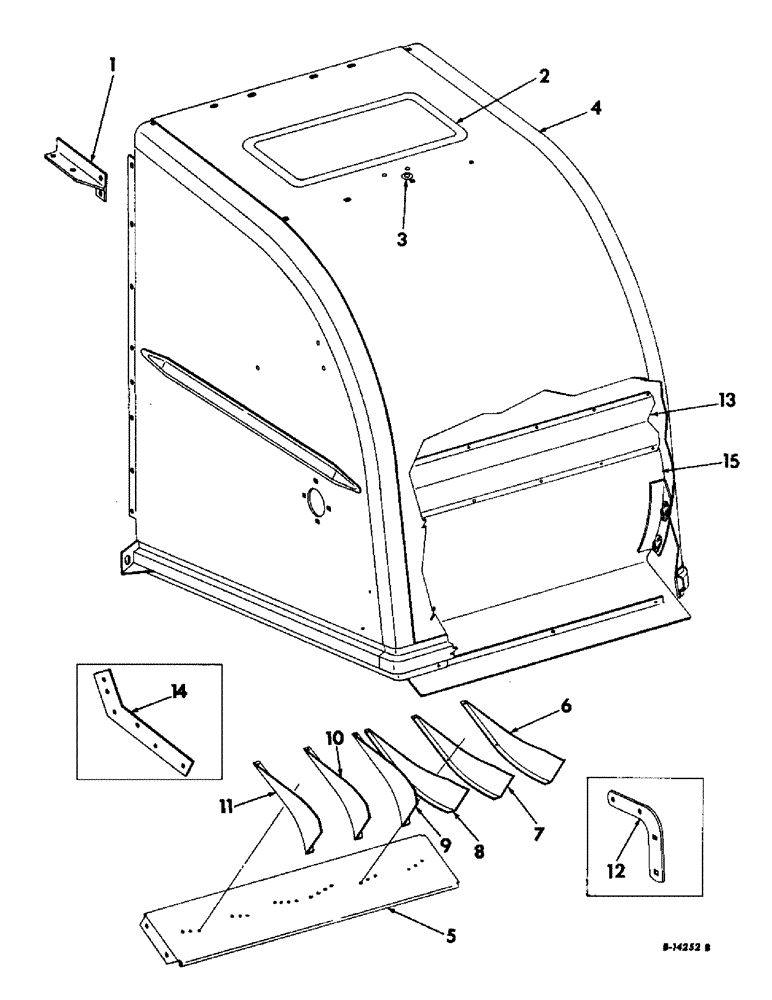

Запчасти Case IH 403 (322) - STRAW CHOPPER, HOOD AND DEFLECTORS (73) - RESIDUE HANDLING

1

936272R91

BRACE ASSY, hood upper LH

1шт.

1

936273R91

BRACE ASSY, hood upper RH

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

3/8 X 3/4 C-Z MACH BOLT W/NUT

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

2

936069R91

COVER ASSY, hood top

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

2шт.

3

144226

GROMMET,1/4" ID x 5/8" x .062", Diag. Cut

rubber

1шт.

4

936051R91

HOOD ASSY, separator, Serial no. 7223 and below

1шт.

4

150023C91

HOOD ASSY, separator, Serial no. 7224 and above

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 X 1/2 C-Z MACH BOLT

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

936109R1

SHIELD, deflector

1шт.

6

936129R1

DEFLECTOR, outer RH, Serial no. 7223 and below

1шт.

6

936125R1

DEFLECTOR

RH, Serial no. 7224 and above

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 X 1/2 C-Z MACH BOLT W/NUT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

7

936125R1

DEFLECTOR

inner RH

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/2 X 1/2 C-Z MACH BOLT W/NUT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

8

936127R1

DEFLECTOR, middle RH, Serial no. 7223 and below

1шт.

8

155132C1

DEFLECTOR, center RH, Serial no. 7224 and above

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 X 1/2 C-Z MACH BOLT W/NUT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

9

936126R1

DEFLECTOR, middle LH, Serial no. 7223 and below

1шт.

9

155131C1

DEFLECTOR

center LH, Serial no. 7224 and above

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 X 1/2 C-Z MACH BOLT W/NUT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

10

936124R1

DEFLECTOR

inner LH

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 X 1/2 C-Z MACH BOLT W/NUT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

11

936128R1

DEFLECTOR, outer LH, Serial no. 7223 and below

1шт.

11

936124R1

DEFLECTOR

LH, Serial no. 7224 and above

1шт.

18653R1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

1/4 X 1/2 C-Z MACH BOLT W/NUT

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

12

936138R1

STRIP, deflector shield, Serial no. 7223 and below

2шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 X 1/2 C-Z CRG BOLT W/NUT

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

13

151136C1

REINFORCEMENT, rear upper, Serial no. 7224 and above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 X 1/2 C-Z CRG BOLT W/NUT

5шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 C-Z LOCK WASHER

5шт.

16897R1

CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd

5/16 C-Z LOCK WASHER

5шт.

14

151133C1

STRAP, rear, Serial no. 7224 and above

1шт.

18673R1

CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2

5/16 X 1/2 C-Z CRG BOLT W/NUT

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

15

151152C91

DEFLECTOR ASSY, rear

1шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

9шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 X 3/4 C-Z CAP SCREW

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

9шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.
