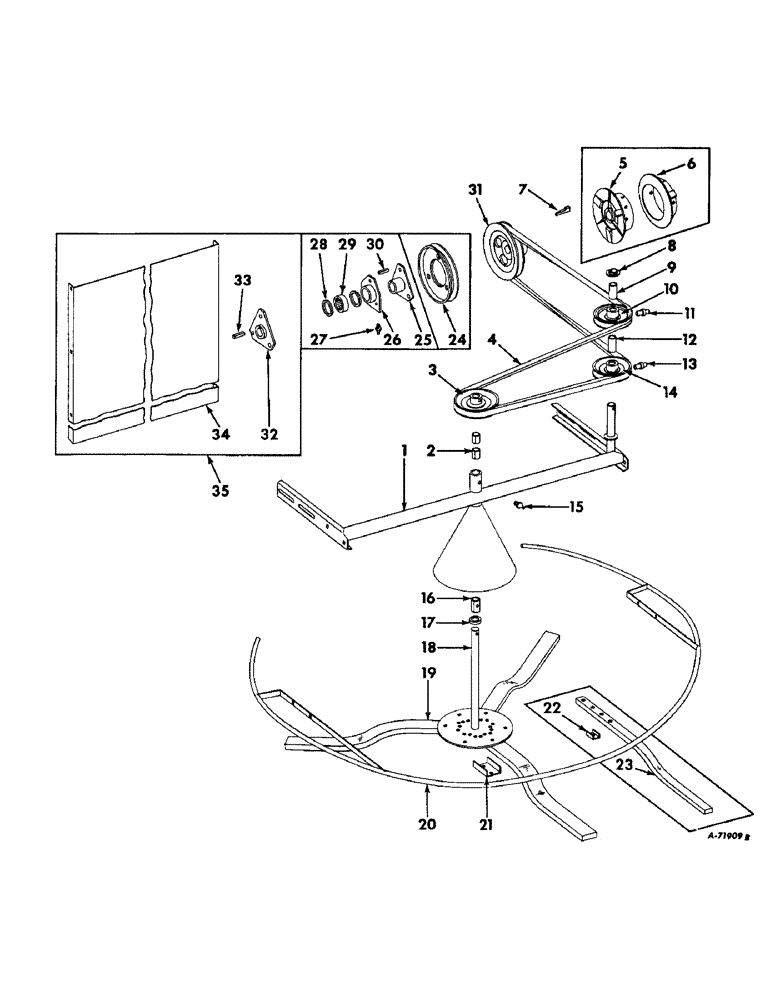

Запчасти Case IH 403 (263) - STRAW SPREADER (73) - RESIDUE HANDLING

1

628625R91

SUPPORT W/BUSHING ASSY, straw spreader, Includes ref nos 2 and 16

1шт.

3/8 X 1 CRG BOLT W/NUT

4шт.

3/8 X 3/4 CAP SCREW

4шт.

3/8 LOCK WASHER

8шт.

13/32 X 3/4 X 16 GA WASHER

4шт.

PO12898

WASHER

29/32 X 1-1/2 X 11 GA WASHER

1шт.

551659R1

WASHER

29/32 X 1-1/2 X 22 GA WASHER

3шт.

21868V

WASHER

29/32 X 1-1/2 X 16 GA WASHER

1шт.

2

551068R1

BUSHING,22.28mm ID x 25.43mm OD x 22.23mm L

spreader shaft upper

2шт.

3

21712K

PULLEY ASSY.

SHEAVE ASSY, spreader driven

1шт.

1/8 X 3/4 COTTER PIN

1шт.

Q663

HEADED PIN,5/16" x 1 7/8"

5/16 X 1-7/8 DLD PIN

1шт.

4

589623R1

V-BELT,0.63" W

Spreader drive 0.63" W

1шт.

5

570390R1

SHEAVE, inner half spreader driver

1шт.

3/8 NUT

2шт.

3/8 X 1 CAP SCREW

2шт.

3/8 LOCK WASHER

2шт.

6

568926R1

SHEAVE, outer half driver

1шт.

7

Q3930

KEY,Gib, 5/16" Sq x 1 3/4"

5/16 x 5/16 x 1-3/4 gib

1шт.

8

20362K

COLLAR

spreader shaft

1шт.

3/16 X 1-1/4 COTTER PIN

1шт.

9

18523K

BUSHING

drive belt idler sheave

1шт.

10

17876K

PULLEY ASSY.

SHEAVE W/BUSHING ASSY, spreader drive belt idler, Includes ref no. 9

1шт.

11

557159R91

LUBE NIPPLE,1/4" x .78" lg, Drive

FITTING, 1/4 drive lubrication

1шт.

12

18523K

BUSHING

drive belt tightener sheave

1шт.

13

557159R91

LUBE NIPPLE,1/4" x .78" lg, Drive

FITTING, 1/4 drive lubrication

1шт.

14

48252K

PULLEY ASSY.

SHEAVE W/BUSHING ASSY, spreader drive belt tightener, Includes ref no. 12

1шт.

557159R91

LUBE NIPPLE,1/4" x .78" lg, Drive

1/4 DRIVE LUBRICATION FITTING

1шт.

15

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

16

589813R1

BUSHING

spreader shaft lower

1шт.

17

565873R91

SEAL

OIL SEAL ASSY, spreader shaft

1шт.

18

568191R91

ROD

SHAFT W/DISC, straw spreader

1шт.

21868V

WASHER

29/32 X 1-1/2 X 16 GA WASHER

4шт.

551659R1

WASHER

29/32 X 1-1/2 X 22 GA WASHER

2шт.

19

570387R1

BAT

BLADE, spreader, heavy

3шт.

20

628632R91

GUARD W/BRACKET, straw spreader

1шт.

21

566475R1

CHANNEL

CLIP, spreader blade, heavy

3шт.

5/16 X 1-1/2 MACH BOLT W/NUT

6шт.

5/16 LOCK WASHER

6шт.

22

565871R1

CHANNEL

CLIP, spreader blade, light

6шт.

5/16 X 1-1/4 MACH BOLT W/NUT

6шт.

5/16 LOCK WASHER

6шт.

23

570391R1

BLADE

spreader, light

3шт.

24

NOT USED

1шт.

25

NOT USED

1шт.

26

NOT USED

1шт.

27

NOT USED

1шт.

28

NOT USED

1шт.

29

NOT USED

1шт.

30

NOT USED

1шт.

31

936706R1

PULLEY

straw spreader drive

1шт.

32

NOT USED

1шт.

33

NOT USED

1шт.

34

NOT USED

1шт.

35

NOT USED

1шт.
