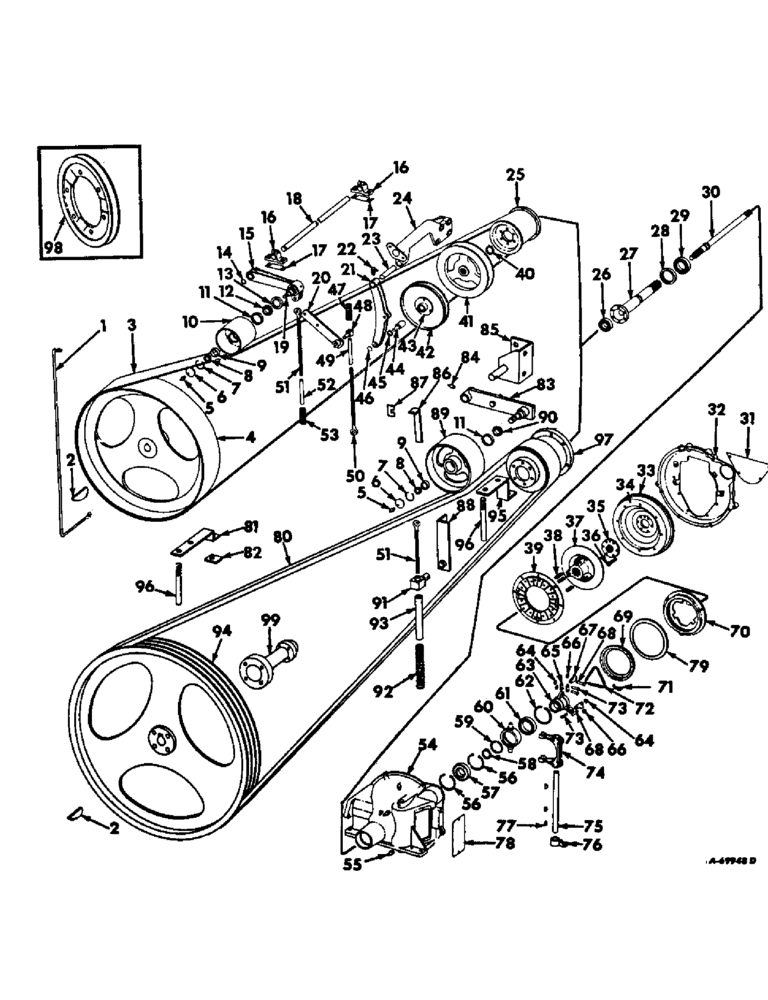

Запчасти Case IH 403 (136) - SEPARATOR AND PROPULSION JACKSHAFT DRIVE (72) - SEPARATION
№
Артикул
Название
Примечание
Количество
1
631043R1
GUARD, separator drive belt, Serial no., Serial Range: 501-2326
1шт.
.
5/16 X 1 CRG BOLT W/NUT
2шт.
.
5/16 LOCK WASHER
2шт.
2
935904R91
KEY, 3/8 x 3-3/4 square parallel, Serial no., Serial Range: 501-4643
1шт.
2
117998
WOODRUFF KEY,#G, 3/8" x 1 1/2", HT
KEY, 3/8 x 1-1/2 Woodruff, Serial no. 4644 to 18141
1шт.
2
218216
WOODRUFF KEY,#V, 1/2" x 2 3/4", HT
KEY, 1/2 x 2-3/4 Woodruff, Serial no. 18142 and above
1шт.
3
629820R1
BELT,5.00" W x 163.35" L
Separator drive, S/N 16129 and below, For use w/bagger at S/N 16130 and above 5.00" W x 163.35" L
1шт.
4
631183R1
PULLEY
separator driven, Order service package 936715R91, Serial no., Serial Range: 501-4643
1шт.
4
936715R91
PACKAGE
ASSY, cylinder beater and separator drive pulley, Serial no. 4643 and below, Consists of
1шт.
.
163553C11
SHAFT ASSY, cylinder beater
1шт.
.
936436R1
PULLEY, separator driven
1шт.
.
117998
WOODRUFF KEY,#G, 3/8" x 1 1/2", HT
KEY, 3/8 x 1-1/2 Woodruff
1шт.
.
163446C1
KEY
3/8 x 2-1/2 straight
1шт.
.
629724R11
COLLAR
COLLAR W/SET SCREW ASSY
1шт.
.
936727R1
WASHER,26.16mm ID x 56.9mm OD x 6.35mm Thk
1-1/32 X 2-1/4 X 1/4 WASHER
2шт.
.
632471R1
1-1/32 X 2 X 22 GA WASHER
4шт.
4
936436R1
PULLEY, separator driven, Serial no. 4644 to 16129, For use w/bagger att serial no. 16130 and above
1шт.
5
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/4 straight lubrication
1шт.
6
589951R1
PLUG
CAP, separator drive tightener pulley grease
1шт.
7
564405R1
RING, SNAP
SNAP RING, separator drive tightener pulley
1шт.
8
651815R91
BEARING ASSY,7.508" ID x 17.82" OD x 6"
CONE, roller bearing
1шт.
8
651815R91GV
BEARING CONE
Value, Cone Bearing
1шт.
9
651814R1
BEARING CUP
CUP, roller bearing
1шт.
10
568955R1
PULLEY, separator drive belt tightener, Serial no. 16129 and below
1шт.
12
ROLLER BEARING,31.77 mm ID x 16.08 mm
CONE, roller bearing, Serial no. 16129 and below
1шт.
13
564403R91
SEAL
OIL SEAL, separator drive belt tightener pulley, Serial no. 16129 and below, For use w/bagger att serial no. 16130 and above
1шт.
14
631530R1
RING, SNAP
SNAP RING, separator drive belt tightener support pivot shaft, Serial no. 16129 and below, For use w/bagger att serial no. 16130 and above
1шт.
15
627846R1
ARM, separator drive belt tightener pulley, Serial no. 16129 and below, For use w/bagger att serial no. 16130 and above
1шт.
.
219-8
LUBE NIPPLE,1/4" - 28 NPTF
1/4 STRAIGHT LUBRICATION FITTING
1шт.
.
3/16 X 1 COTTER PIN
1шт.
.
M6091/2
PIN
1/2 X 1-3/4 DLD PIN
1шт.
.
455183R1
LOCK PIN,5/16" x 2 1/2", Slotted
Pin, 5/16" x 2 1/2", Slotted
1шт.
16
634826R1
CLAMP, separator drive tightener support pivot shaft right, 2 used all machines serial no. 16129 and below, For use w/bagger att serial no. 16130 and above
1шт.
16
628175R1
CLAMP, separator drive tightener support pivot shaft left, For use w/bagger att serial no. 16130 and above
1шт.
.
3/8 X 1-1/2 MACH BOLT W/NUT
4шт.
.
3/8 LOCK WASHER
4шт.
.
13/32 X 3/4 X 16 GA WASHER
4шт.
.
617939R1
PIN,5/16" x 1 1/2", Coiled
1шт.
.
560172R1
BOLT,Hex, 3/8" - 24 x 1 1/2", Gr 8
3/8 X 1-1/2 CAP SCREW
2шт.
.
3/8-24UNF NUT
2шт.
.
115549
LOCK WASHER,Int Tooth, 3/8"
WASHER, LOCK, Int Tooth, 3/8"
2шт.
.
617939R1
PIN,5/16" x 1 1/2", Coiled
1шт.
17
628291R1
SHIM, separator drive tightener support pivot shaft clamp, Serial no. 16129 and below, For use w/bagger att serial no. 16130 and above
8шт.
18
631441R1
SHAFT, separator drive belt tightener support pivot, Serial no. 16129 and below, For use w/bagger att serial no. 16130 and above
1шт.
.
1-1/32 X 1-1/2 X 16 GA WASHER
4шт.
19
629815R1
SHAFT
separator drive belt tightener pulley, Serial no. 16129 and below, For use w/bagger att serial no. 16130 and above
1шт.
.
1/8 X 1-1/4 COTTER PIN
1шт.
.
551177R1
WASHER
21/32 X 1-1/4 X 16 GA WASHER
2шт.
20
569456R91
BRACKET
W/SUPPORT, propulsion jackshaft drive belt tightener adjusting
1шт.
21
564765R1
ARM
propulsion jackshaft drive belt tightener
1шт.
.
3/16 X 1-1/4 COTTER PIN
1шт.
.
M6091/2
PIN
1/2 X 1-3/4 DLD PIN
1шт.
22
16964R91
FITTING
1/4 90 deg elbow lubrication
1шт.
23
628292R1
SHAFT
propulsion jackshaft drive belt tightener arm pivot
1шт.
.
1/8 X 1-1/2 COTTER PIN
1шт.
.
102894
SET SCREW
3/8 X 3/4 CUP-PT SET SCREW
1шт.
.
1-1/32 X 1-1/2 X 16 GA WASHER
5шт.
24
627548R1
SUPPORT, propulsion jackshaft belt tightener
1шт.
.
7/16 X 1-1/4 CAP SCREW
4шт.
.
7/16 X 3 CAP SCREW
2шт.
.
7/16 NUT
2шт.
.
7/16 LOCK WASHER
6шт.
.
15/32 X 1 X 11 GA WASHER
4шт.
25
629813R1
PULLEY, separator drive, Serial no. 16129 and below
1шт.
.
5/16 X 1-1/2 CAP SCREW
6шт.
.
5/16 LOCK WASHER
6шт.
26
658135R91
BEARING
ball
1шт.
27
629836R1
TUBE
separator drive, Not hydrostatic ground drive
1шт.
28
631713R91
OIL SEAL
OIL SEAL, clutch housing
1шт.
29
631306R91
ROLLER BEARING,1.9685" ID x 3.5433" OD x 0.7874"
ball
1шт.
30
629838R1
SHAFT
propulsion drive, Not hydrostatic ground drive
1шт.
.
1/8 X 1/2 COT. PIN
1шт.
.
427645
SLOTTED NUT,7/8"-14, G5
7/8 SLT NUT
1шт.
.
615196R1
WASHER
29/32 X 1-3/4 X 11 GA WASHER
1шт.
31
SEAL, adapter housing dust, Refer to Eng-2 or Eng-5 parts catalog
1шт.
32
ADAPTER, clutch housing, Refer to Eng-2 or Eng-5 parts catalog
1шт.
33
GEAR, flywheel ring, Refer to Eng-2 or Eng-5 parts catalog
1шт.
34
FLYWHEEL ASSY, Refer to Eng-2 or Eng-5 parts catalog
1шт.
35
FLANGE, drive shaft, Refer to Eng-2 or Eng-5 parts catalog
1шт.
36
BOLT, flywheel to crankshaft, Refer to Eng-2 or Eng-5 parts catalog
6шт.
.
161165C91
CLUTCH ASSEMBLY
CLUTCH ASSY., Includes ref nos. 37, 38, 39, 59 through 73 and 79
1шт.
.
3/8 X 3/4 CAP SCREW
8шт.
.
3/8 LOCK WASHER
8шт.
37
633705R1
HOUSING
BODY, clutch, Serial no. 7225 and below
1шт.
37
161166C1
CLUTCH ASSEMBLY
BODY, clutch, Serial no. 7226 and above
1шт.
38
266704R1
VALVE SPRING
SPRING, separator
3шт.
39
633709R91
PLATE
AND FACING ASSY, drive, Serial no. 7225 and below
1шт.
39
154759C91
CLUTCH DISC
PLATE AND FACING ASSY, drive, Serial no. 7226 and above
1шт.
40
659380R1
SNAP RING,#137, Ext
Ring, Snap, , propulsion drive shaft #137, Ext
1шт.
41
627732R1
SHEAVE, propulsion jackshaft drive
1шт.
42
569193R11
PULLEY
SHEAVE ASSY, propulsion jackshaft drive belt tightener
1шт.
43
564729R1
HUB, propulsion jackshaft drive belt tightener sheave
1шт.
.
3/8 X 1 MACH BOLT W/NUT
3шт.
.
3/8 LOCK WASHER
3шт.
44
ST634
BEARING ASSY
BEARING, ball
1шт.
45
559203R1
SNAP RING,#118, 1.260", Int, Spiral
propulsion jackshaft drive belt tightener sheave hub
1шт.
46
432482
PLUG,5/8"
5/8 button
1шт.
47
VC682
VALVE SPRING
SPRING, propulsion jackshaft drive belt tightener drawbolt
1шт.
48
564731R1
TRUNNION
propulsion jackshaft drive belt tightener adjusting bolt
1шт.
.
3/16 X 1-1/4 COTTER PIN
1шт.
49
569199R1
SPACER
SLEEVE, propulsion jackshaft drive belt tightener adjusting drawbolt
1шт.
50
164770C1
DRAWBOLT, propulsion jackshaft drive belt tightener adjuster
1шт.
.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
3шт.
.
16038R1
WASHER
17/32 x 1 x 11 ga C-Z
1шт.
51
585455R1
BOLT
DRAWBOLT, separator drive tightener pulley, For use w/bagger att
1шт.
51
164770C1
DRAWBOLT, separator drive tightener pulley, Not for use w/bagger att
1шт.
.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
3шт.
.
578274R1
WASHER
21/32 X 1 X 11 GA WASHER
2шт.
.
16038R1
WASHER
17/32 X 1 X 11 GA C-Z
1шт.
52
569199R1
SPACER
SLEEVE, separator drive belt tightener adjusting drawbolt, Serial no. 16129 and below, For use w/bagger att serial no. 16130 and above
1шт.
53
41184D
SPRING, separator drive tightener pulley drawbolt, Serial no. 16129 and below, Not for use w/bagger att serial no. 16130 and above
1шт.
54
629834R2
HOUSING, clutch, Not hydrostatic ground drive
1шт.
.
159851C1
DOWEL, clutch housing
2шт.
.
1/4 X 1-1/2 CAP SCREW, Diesel
4шт.
.
1/4 X 1-3/4 CAP SCREW, Gas
4шт.
.
1/2 X 1-3/4 CAP SCREW
2шт.
.
1/4 LOCK WASHER
4шт.
.
1/2 LOCK WASHER
4шт.
55
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, 1/8"-27 x .66 lg
3шт.
56
163648C1
SNAP RING,#334, 3.590", Int
NAP RING, clutch housing
2шт.
57
113568R91
BALL BEARING,1.7712" ID x 3.35" OD x 0.75"
BEARING, ball
1шт.
58
631255R1
SNAP RING,#177, Ext
Ring, Snap, , separator drive shaft bearing #177, Ext
1шт.
59
29780D
RING
SNAP RING, external
1шт.
60
633708R1
BEARING
CARRIER, bearing, Serial no. 7223 and below
1шт.
60
155471C1
BEARING CARRIER
CARRIER, brg, Serial no. 7224 and above
1шт.
61
633704R91
BEARING ASSY,2.3622" ID x 3.7402" OD x 0.7087"
ball
1шт.
62
304780R1
RING, SNAP
SNAP RING, internal
1шт.
63
633707R11
SLEEVE
W/BUSHING ASSY, release, Serial no. 7223 and below
1шт.
63
161167C11
SLEEVE
W/BUSHING ASSY, release, Serial no. 7224 and above
1шт.
64
266698R1
RING
retaining
6шт.
65
266696R1
DRAG LINK
LINK, connecting
6шт.
66
255395R1
RING
retaining
3шт.
67
268866R1
LEVER
3шт.
68
266694R1
AXLE PIN
PIN, clevis
3шт.
69
347871R1
NUT
adjusting
1шт.
70
268958R91
PLATE ASSY.
PLATE, pressure, Includes ref no. 71
1шт.
71
319531R1
STOP
LOCK, adjusting
1шт.
.
19559R1
1/4 X 3/8 CAP SCREW
1шт.
.
115547
LOCK WASHER,Int Tooth, 1/4"
WASHER, LOCK, Int Tooth, 1/4"
1шт.
72
268865R91
VALVE SPRING
SPRING ASSY, lever
1шт.
73
266697R1
AXLE PIN
PIN, clevis
6шт.
74
266664R91
CLEVIS COUPLING
YOKE, clutch
1шт.
75
629839R1
SHAFT, clutch pivot, Serial no. 13062 and below
1шт.
.
103409
PIN, SPLIT (COTTER),3/16" x 1 1/2"
2шт.
.
Q3481
WASHER
1-1/32 x 1-1/2 x 16 ga
6шт.
.
Q162
WASHER
1-5/32 x 1-3/4 x 16 ga
4шт.
75
159945C1
SHAFT
clutch pivot, Serial no. 13063 and above
1шт.
.
130409
ANGLE BAR
PIN, 3/16 x 1-1/2 cot.
1шт.
.
Q3481
WASHER
1-1/32 x 1-1/2 x 16 ga
7шт.
76
629905R91
ARM
W/HUB, separator clutch pivot
1шт.
.
1/4 X 1-1/2 COTTER PIN
1шт.
.
576483R1
LOCK PIN,5/16" x 1 1/2", Slotted
Pin, 5/16" x 1 1/2", Slotted
1шт.
77
NLS
NO LONGER SERVICED
1/4 x 1 Woodruff
3шт.
78
629845R1
COVER, clutch housing
1шт.
.
5/16 X 1/2 CAP SCREW
2шт.
.
5/16 LOCK WASHER
2шт.
79
347872R1
LARGE PLATE
RING, adjusting plate
1шт.
80
159267C1
V-BELT,2.25" W x 174.99" L, 3 Ribs
Separator Drive, Serial No. 16130 and Above 2.25" W x 174.99" L, 3 Ribs
1шт.
81
161110C1
SUPPORT, separator drive belt guide front, Serial no. 16130 and above
1шт.
82
569038R1
STRIP, separator drive belt guide, Serial no. 16130 and above
1шт.
.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd mach
1шт.
.
120376
NUT,5/16"-18, G5
1шт.
.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
1шт.
83
159268C91
LEVER ASSY, separator drive belt idler pulley, Serial no. 16130 and above
1шт.
.
Q5035
WASHER
17/32 x 1 x 16 ga
4шт.
.
606546R1
JAM NUT
5/8 C-Z hex jam
1шт.
84
219-8
LUBE NIPPLE,1/4" - 28 NPTF
FITTING, 1/4-28 str-lub
1шт.
85
159274C91
CHANNEL ASSY, separator drive belt idler pulley pivot, Serial no. 16130 and above
1шт.
.
17428R1
BOLT,Hex, 1/2"-13 x 1", G2, Full Thd
1/2 x 1 hex-hd mach
1шт.
.
17473R1
BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2
1/2 x 1-1/2 hex-hd mach
2шт.
.
102637
NUT,1/2"-13, G5
3шт.
.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
3шт.
.
16038R1
WASHER
17/32 x 1 x 11 ga
3шт.
86
161417C1
SHIM, separator drive idler pivot channel
4шт.
.
432-1624
COTTER PIN,1/4" x 1 1/2"
Pin, Split (Cotter), 1/4" x 1 1/2"
1шт.
.
Q5036
WASHER
1-1/32 x 1-3/4 x 16 ga
4шт.
87
151278C1
SHIM, separator drive belt idler pulley pivot channel, Serial no. 16130 and above
4шт.
87
158791C1
SHIM, separator drive belt idler pulley pivot channel
3шт.
88
159271C91
ANGLE ASSY, separator drive belt idler pulley trunnion, Serial no. 16130 and above
1шт.
89
606555R1
PULLEY, separator drive belt idler, Serial no. 16130 and above
1шт.
89
568955R1
PULLEY, separator drive belt idler, For use w/bagger att serial no. 16130 and above
1шт.
90
602958R91
BEARING ASSY,31.75 mm ID x 25.4 mm
BEARING ASSY, separator drive belt idler pulley cone, Serial no. 16130 and above
1шт.
91
564731R1
TRUNNION
separator drive belt idler pulley draw bolt, Serial no. 16130 and above
1шт.
.
350515R1
WASHER
21/32 x 1 x 16 ga
3шт.
92
523267R1
SPRING
separator drive belt idler pulley draw bolt, Serial no. 16130 and above
1шт.
93
159273C1
TUBE,.531" ID, .625" OD, 6.6" Length
separator drive belt idler pulley draw bolt spring, Serial no. 16130 and above
1шт.
94
159263C1
PULLEY, separator driven, Serial no., Serial Range: 16130-18141
1шт.
94
166044C1
PULLEY, separator driven, Serial no. 18142 and above, Not for grain machines w/grain tank serial no. 19528 and above
1шт.
94
170710C1
PULLEY, separator driven, For grain machines w/grain tank serial no. 19528 and above
1шт.
95
159280C1
SUPPORT, separator drive belt guide, Serial no. 16130 and above
1шт.
.
17475R1
BOLT, 5/8 x 1-1/2 hex-hd mach
1шт.
.
102637
NUT,1/2"-13, G5
5/8 hex.
1шт.
.
103325
LOCK WASHER,5/8"
WASHER, LOCK, 5/8"
1шт.
.
575810R1
WASHER
21/32 x 1-1/2 x 11 ga
1шт.
96
633221R1
STUD, separator drive belt guide support, Serial no. 16130 and above
4шт.
.
114505
JAM NUT,Jam, 1/2"-13, G5
8шт.
.
103323
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
8шт.
.
178373R1
WASHER
17/32 x 1 x 16 ga C-Z
8шт.
97
159265C1
PULLEY, separator drive, Serial no. 16130 and above, Not for use w/bagger att
1шт.
97
629813R1
PULLEY, separator drive, For use w/bagger att
1шт.
98
936161R1
PULLEY, straw chopper, For hydrostatic ground drive equipped with straw chopper
1шт.
99
170700C1
HUB, feeder drive, For grain machines w/grain tank, Serial no. 19528 and above
1шт.
.
18476R1
BOLT,Hex, 1/2"-13 x 2 1/2", G2
1/2 x 2-1/2 C-Z hex-hd mach.
4шт.
.
120378
NUT,Hex, 1/2" - 13, Gr 5
NUT, 1/2"-13, G5
4шт.
.
120384
WASHER,1/2"
LOCK, 1/2"
4шт.
Выбрано товаров: 212
