Запчасти Case IH 403 (088) - ELEVATOR CHAIN DRIVE (66) - THRESHING

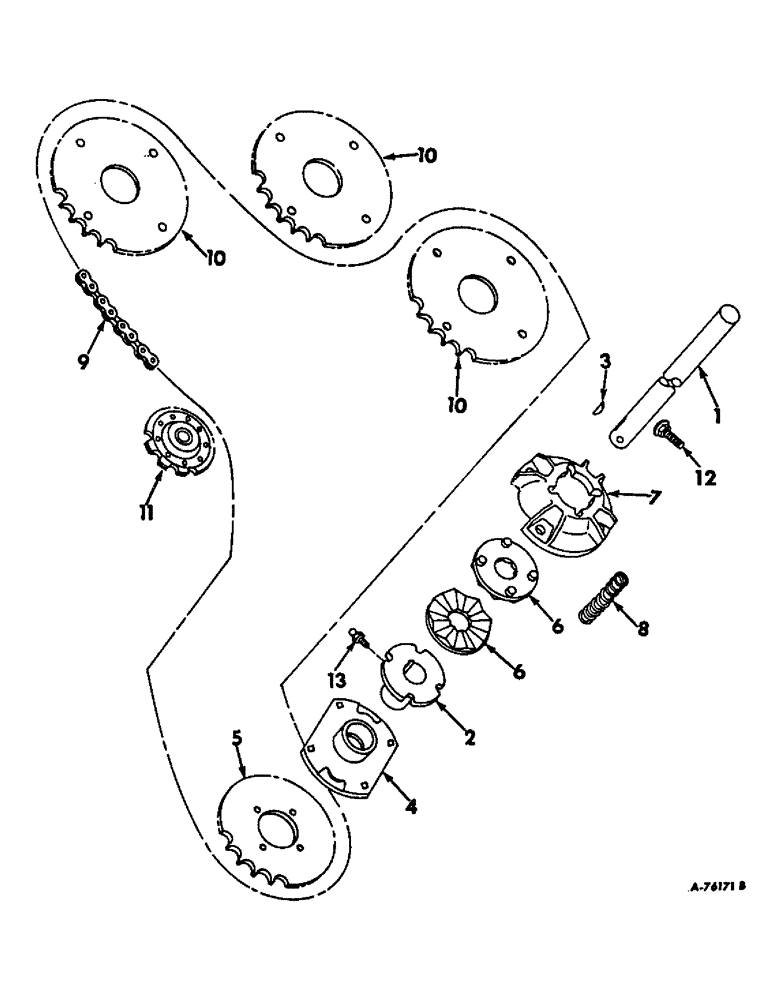

Схема запчастей Case IH 403 - (088) - ELEVATOR CHAIN DRIVE (66) - THRESHING
10
6
4
5
2
10
6
13
3
1
10
11
9
12
7
8

Артикул

Название

Примечание

Количество

1

155812C1

SHAFT

elevator drive

1шт.

2

583785R1

HOLDER

elevator drive slip clutch

1шт.

21825R1

LOCK PIN,5/16" x 1 3/4", Slotted

Pin, 5/16" x 1 3/4", Slotted

1шт.

3

117977

WOODRUFF KEY

KEY, 5/16 x 1 Woodruff

1шт.

4

155813C1

HUB

elevator drive slip clutch

1шт.

5

155814C1

SPROCKET ASSY.

SPROCKET, elevator drive 38-T

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

SCREW, 3/8 x 7/8 C-Z hex-hd cap

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

6

B12170

RATCHET,Clutch Slip, 94.49mm

elevator drive slip clutch

2шт.

7

632152R2

RETAINER

elevator drive slip clutch

1шт.

8

28395H

SPRING

elevator drive slip clutch

4шт.

12685R1

BOLT,Sq Nk, 3/8" x 3 1/4"

3/8 x 3-1/4 sq-nk crg dld

4шт.

9628503

NUT,3/8"-16, G5

4шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

4шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

8шт.

121222

COTTER PIN,3/32" x 3/4"

PIN, SPLIT (COTTER), 3/32" x 3/4"

4шт.

9

CHAIN ASSY, elevator drive, Order 127 links from 10-ft roll marked 569028R91, 1 connecting link 587372R91, and 1 offset link 456929R91, For grain combines

1шт.

9

CHAIN ASSY, elevator drive, Order 135 links from 10-ft roll marked 569028R91, 1 connecting link 587372R91, and 1 offset link 456929R91, For rice special combines

1шт.

9

CHAIN ASSY, elevator drive, Order 161 links from 10-ft roll marked 569028R91, 1 roller link 456979R91, 1 offset link 456929R91, and 2 connecting links 587372R91, For use w/bagger att

1шт.

10

155811C1

SPROCKET ASSY.

SPROCKET, elevator driven and grain tank leveling auger driven 50T, 3 used grain and rice 2 used w/bagger att

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16 x 7/8 C-Z hex-hd cap

12шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

12шт.

11

582415R91

DRIVE SPROCKET,9T

SPROCKET ASSY, elevator drive chain idler 9-T

1шт.

12

570028R91

BOLT

BOLT ASSY, elevator slip clutch alarm switch, For combines equipped with operators cab

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

13

109461

LUBE NIPPLE,1/8"-27 x .66 lg

FITTING, 1/2 npt str lub

1шт.

Выбрано товаров: 26
