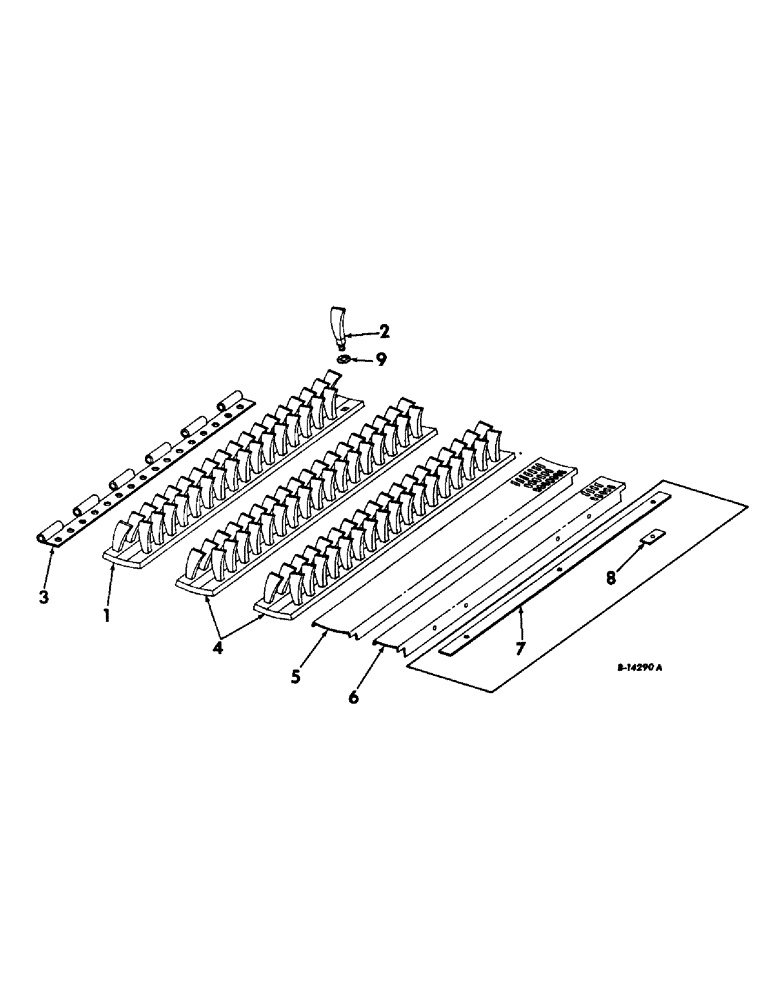

Запчасти Case IH 403 (065) - SPECIAL CONCAVE GRATE AND FILLER BARS (66) - THRESHING

1

570570R1

CONCAVE, front, See note, Serial no. 13062 and below

1шт.

1

155985C1

CONCAVE, front, See note, Serial no. 13063 and above

1шт.

2

M4647

TOOTH

concave, See note, Serial no. 13062 and below

105шт.

2

155982C1

TOOTH

concave, See note, Serial no. 13063 and above

105шт.

102638

9/16 NUT

105шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

105шт.

3

629406R1

HINGE, concave, See note, Serial no. 13062 and below

1шт.

3

155986C1

HINGE, concave, See note, Serial no. 13063 and above

1шт.

4

570570R1

CONCAVE, center and rear, See note, Serial no. 13062 and below

2шт.

4

155985C1

CONCAVE, center and rear, See note, Serial no. 13063 and above

2шт.

5

570571R1

GRATE, concave, 1/4 x 1 in. slot, 3 row, See note

2шт.

6

570572R1

GRATE, concave, 1/4 x 1 in. slot, See note

1шт.

7

654923R1

BAR, concave

3шт.

3/8 X 1 CRG BOLT W/NUT

9шт.

3/8 LOCK WASHER

9шт.

3587H

13/32 X 9/16 X 16 GA WASHER

27шт.

8

585209R1

WASHER, concave filler bolt, 9 used

9шт.

9

936476R1

SQ HOLE WASHER

concave tooth, Use as required

1шт.
