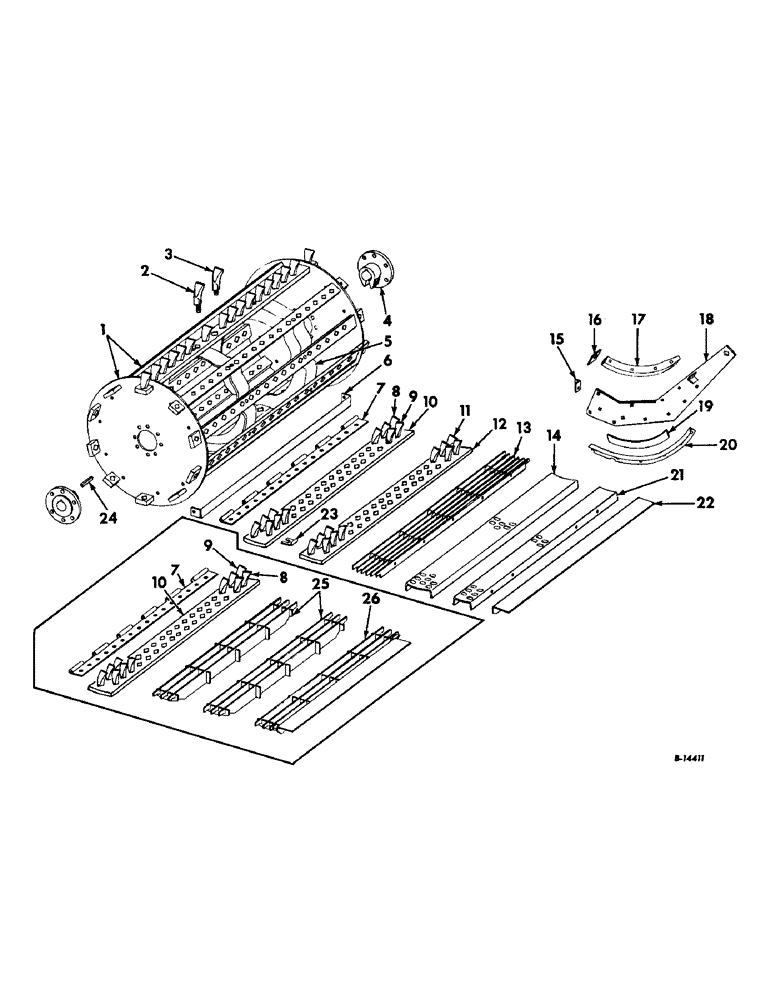

Запчасти Case IH 403 (063) - SPIKE TOOTH CYLINDER ATTACHMENT, SERIAL NO. 13063 AND ABOVE (66) - THRESHING

1

155995C91

CYLINDER ASSY, less shaft, Includes ref nos 2, 3, 4 and 5

1шт.

2

155992C1

TOOTH

cylinder middle

20шт.

124583

BRAKE SHOE

NUT, 9/16 C-Z hex.

20шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

20шт.

3

155993C1

TOOTH

cylinder

160шт.

124583

BRAKE SHOE

NUT, 5/16 C-Z hex.

160шт.

120898

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

160шт.

4

156390C1

HUB, cylinder

2шт.

104101

RIVET, 5/16 x 1-1/4 small B-hd

24шт.

5

567891R1

HEAD, cylinder center

1шт.

104118

RIVET, 3/8 x 1-5/8 small B-hd

20шт.

6

570557R91

SPREADER ASSY, concave adjusting arm

1шт.

7

155986C1

HINGE, concave front extension

1шт.

8

155992C1

TOOTH

concave front, long, 19 used grain, 16 used rice

1шт.

NLS

NO LONGER SERVICED

9/16 hex, 19 used grain, 16 used rice

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, , 19 used for grain, 16 used for rice 9/16"

1шт.

9

155993C1

TOOTH

concave front, short, 16 used grain, 19 used rice

1шт.

102638

9/16 hex., 16 used grain, 19 used rice

1шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, , 16 used for grain, 19 used for rice 9/16"

1шт.

936476R1

SQ HOLE WASHER

concave tooth, 16 used grain, 19 used rice

1шт.

10

155985C1

CONCAVE, front

1шт.

11

155993C1

TOOTH

concave rear, grain

35шт.

NLS

NO LONGER SERVICED

9/16 hex.

35шт.

103324

LOCK WASHER,9/16"

WASHER, LOCK, 9/16"

35шт.

936476R1

SQ HOLE WASHER

concave tooth

35шт.

12

155985C1

CONCAVE, rear, grain

1шт.

13

570567R1

GRATE ASSY, concave, grain

2шт.

14

570565R1

GRATE, concave

2шт.

15

568139R1

ANGLE

DEFLECTOR, concave LH

4шт.

15

568140R1

ANGLE

DEFLECTOR, concave RH

4шт.

16

567908R1

BAR

CLIP, concave locking

2шт.

17

568135R1

SUPPORT

RETAINER, upper LH

1шт.

17

568136R1

SUPPORT

RETAINER, upper RH

1шт.

179817

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5, Full Thd

2шт.

114502

JAM NUT,Jam, 5/16"-18, G5

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

Q397

WASHER

11/32 x 3/4 x 16 ga

1шт.

18

567901R11

SUPPORT ASSY, concave LH

1шт.

18

567902R11

SUPPORT ASSY, concave RH

1шт.

634122R1

BOLT,5/8"-11 x 2", G8, Full Thd

5/8 x 2 plow

2шт.

15551R1

BOLT,3/8"-16 x 1", G2, Full Thd

3/8 x 1 plow

20шт.

102639

NUT,5/8"-11, G5

2шт.

102635

NUT,3/8"-16, G5

20шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

350515R1

WASHER

21/32 x 1 x 11 ga

2шт.

569875R1

SQ HOLE WASHER

25/32 x 1-3/4 x 16 ga

4шт.

19

587764R1

SHIM

concave adjusting

8шт.

20

568137R1

RETAINER, concave lower LH

1шт.

20

568138R1

RETAINER, concave lower RH

1шт.

21

570566R1

GRATE, concave rear, grain

1шт.

22

570568R1

EXTENSION, concave rear, grain

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 x 3/4 hex-hd mach

4шт.

102635

NUT,3/8"-16, G5

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

23

155984C1

SPACER, front concave, grain

3шт.

24

Q3406

KEY,3/8" Sq x 5 1/4"

3/8 x 3/8 x 5-1/4 straight

1шт.

25

574437R91

CONCAVE ASSY, bar front, rice

2шт.

26

574461R91

CONCAVE ASSY, bar rear, rice

1шт.
