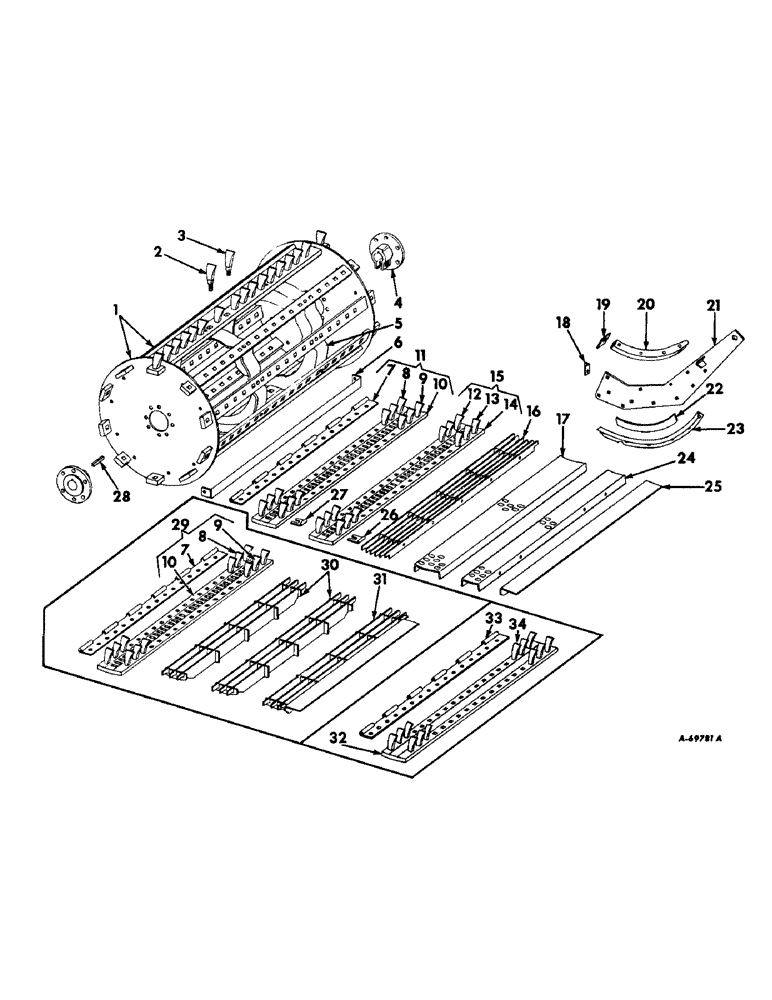

Запчасти Case IH 403 (061) - SPIKE TOOTH CYLINDER ATTACHMENT, SERIAL NO. 13062 AND BELOW (66) - THRESHING

1

155269C91

CYLINDER, less shaft, Includes ref. nos. 2, 4 and 5

1шт.

2

M3073

TOOTH

cylinder middle

1шт.

9/16 NUT

1шт.

9/16 LOCK WASHER

1шт.

3

M4498

TOOTH

cylinder

1шт.

9/16 NUT

1шт.

9/16 LOCK WASHER

1шт.

4

155113C1

HUB, cylinder

2шт.

3/8 X 1-1/4 B-HD RIVET

12шт.

5

567891R1

HEAD, cylinder center, 2 used

2шт.

3/8 X 1-5/8 CT-SK RIVET

20шт.

6

570557R91

SPREADER W/PLATE, concave adjusting arm

1шт.

634122R1

BOLT,5/8"-11 x 2", G8, Full Thd

5/8 X 2 NO. 3 PLOW BOLT

2шт.

5/8 NUT

2шт.

5/8 LOCK WASHER

2шт.

21/32 X 1 X 16 GA WASHER

2шт.

7

629406R1

HINGE, concave front extension

1шт.

8

M6073

TOOTH, concave front, short

2шт.

9/16 NUT

1шт.

9/16 LOCK WASHER

1шт.

936476R1

SQ HOLE WASHER

concave tooth

1шт.

9

M4498

TOOTH

concave front, long

33шт.

9/16 NUT

1шт.

9/16 LOCK WASHER

1шт.

936476R1

SQ HOLE WASHER

conave tooth

1шт.

10

570562R1

CONCAVE, front

1шт.

9/16 NUT

1шт.

9/16 LOCK WASHER

1шт.

11

NON-SERVICE

1шт.

12

M6073

TOOTH, concave rear, short, grain

2шт.

9/16 NUT

1шт.

9/16 LOCK WASHER

1шт.

936476R1

SQ HOLE WASHER

concave tooth

1шт.

13

M4498

TOOTH

concave rear, long, grain

33шт.

9/16 NUT

1шт.

9/16 LOCK WASHER

1шт.

936476R1

SQ HOLE WASHER

concave tooth

1шт.

14

570562R1

CONCAVE, rear, grain

1шт.

15

NON-SERVICE

1шт.

16

570567R91

GRATE W/BAR, concave, grain

2шт.

17

570565R1

GRATE, conave, grain

2шт.

18

568139R1

ANGLE

DEFLECTOR, concave LH

4шт.

18

568140R1

ANGLE

DEFLECTOR, concave RH

4шт.

19

567908R1

BAR

CLIP, concave locking

2шт.

20

568135R1

SUPPORT

RETAINER, upper LH

1шт.

20

568136R1

SUPPORT

RETAINER, upper RH

1шт.

5/16 JAM NUT

2шт.

5/16 X 7/8 CAP SCREW

2шт.

5/16 LOCK WASHER

2шт.

11/32 X 3/4 X 16 GA WASHER

2шт.

21

567901R11

SUPPORT W/STOP, concave LH

1шт.

21

567902R11

SUPPORT W/STOP, concave RH

1шт.

3/8 X 1 NO. 3 PLOW BOLT W/NUT

20шт.

634122R1

BOLT,5/8"-11 x 2", G8, Full Thd

5/8 X 2 NO. 3 PLOW BOLT W/NUT

2шт.

3/8 LOCK WASHER

20шт.

5/8 LOCK WASHER

2шт.

22

587764R1

SHIM

concave adjusting

8шт.

23

568137R1

RETAINER, concave lower LH

1шт.

23

568138R1

RETAINER, concave lower RH

1шт.

24

570566R1

GRATE, concave rear, grain

1шт.

25

570568R1

EXTENSION, concave rear, grain

1шт.

3/8 X 3/4 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

26

588849R1

SPACER, concave, grain

3шт.

27

588849R1

SPACER, concave, grain

3шт.

28

Q3406

KEY,3/8" Sq x 5 1/4"

3/8 x 3/8 x 5-1/4 straight

2шт.

29

NON-SERVICE

1шт.

30

574437R91

CONCAVE W/RAIL, bar grate front, rice

2шт.

31

574461R91

CONCAVE W/RAIL, bar grate rear, rice

1шт.

32

570570R1

CONCAVE, special for spike tooth cylinder attachment when threshing beans and peas

2шт.

33

629406R1

HINGE, concave front extension, special for spike tooth cylinder attachment when threshing beans and peas

1шт.

34

M5432

TOOTH, concave, special for spike tooth cylinder attachment when threshing beans and peas

70шт.

9/16 NUT

70шт.

9/16 LOCK WASHER

70шт.
