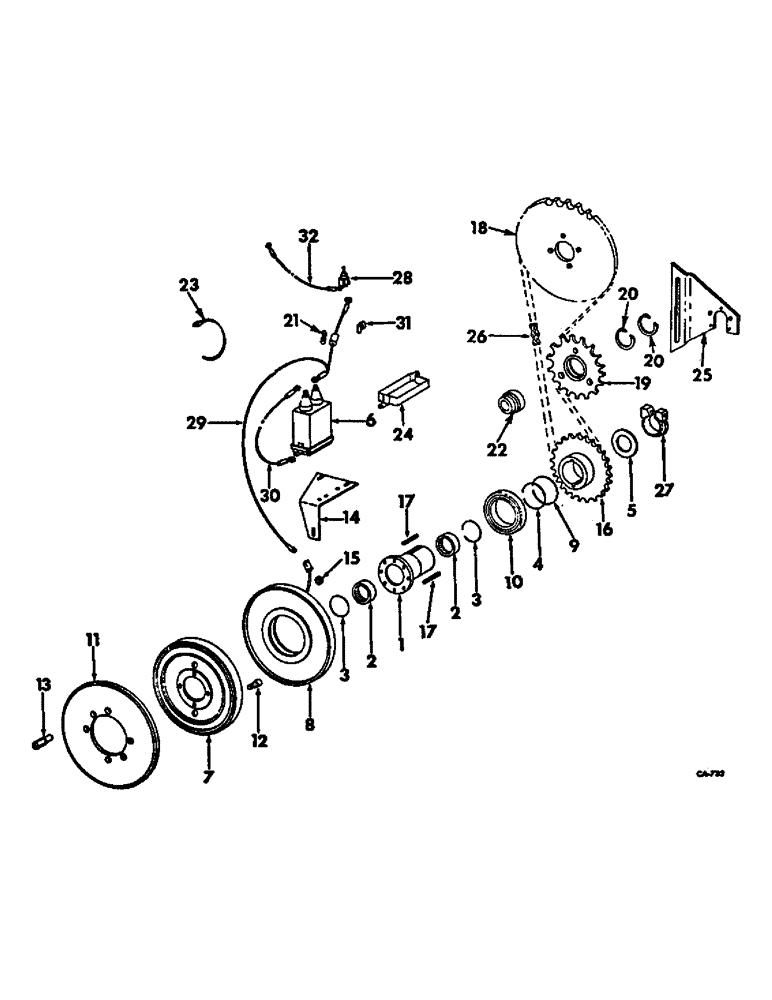

Запчасти Case IH 403 (035C) - ELECTRIC CLUTCH FOR CHAIN TYPE FEEDER DRIVE (60) - PRODUCT FEEDING

1

160240C11

HUB ASSY, feeder drive electric clut

1шт.

U14294

WASHER

1-15/16 x 2-7/8 x 16 ga

3шт.

24971R1

WASHER, 1-29/32 x 3-1/4 x 11 ga C-Z

1шт.

2

392680R91

NEEDLE BEARING

ASSY, feeder drive clutch hub

2шт.

3

158109C91

SEAL

FEEDER DRIVE CLUTCH HUB BRG OIL

2шт.

4

21588R1

RING

feeder clutch hub snap

1шт.

5

164683C1

THRUST WASHER

feeder clutch hub thrust

1шт.

6

161858C1

CAPACITOR

feeder drive electric clutch

1шт.

7

160891C1

ROTOR ASSY, feeder drive clutch

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

SCREW, 5/16 x 7/8 C-Z hex-hd cap

8шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

8

160892C1

FIELD ASSY, feeder drive clutch

1шт.

9

21589R1

SNAP RING,#452, 4.701, Int, Spiral

RING, feeder drive clutch field brg

2шт.

10

160894C91

BEARING ASSY,75 mm ID x 115 mm OD x 20 mm

feeder drive clutch field

1шт.

11

160312C1

RETAINER, feeder drive clutch face plate

1шт.

12

160673C1

STUD, feeder drive clutch

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

13

160309C1

STUD

feeder drive clutch lockout

2шт.

280954

NUT,3/4"-10, G5

2шт.

14

170707C1

STRAP, feeder clutch field tie

2шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach.

1шт.

18494R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga C-Z

2шт.

619856R1

WASHER

13/32 x 1 x 16 x ga C-Z

1шт.

15

556587R1

SPACER

feeder clutch field tie strap

1шт.

16

170691C1

SPROCKET ASSY.

SPROCKET ASSY, feeder drive 23T

1шт.

17

586879R1

KEY

5/16 x 2 sq parallel

2шт.

18

170690C1

SPROCKET, feeder driven 33T

1шт.

18784R1

BOLT,Hex, 3/8"-16 x 2 3/4", G2

3/8 x 2-3/4 C-Z hex-hd mach

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

19

589538R1

SPROCKET, feeder, drive tightener 17T

1шт.

22861R1

BOLT, 7/8 x 3 znd sq-nk crg

1шт.

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

1шт.

NLS

NO LONGER SERVICED

7/8"

1шт.

21714R1

WASHER

29/32 x 1-1/2 x 11 ga C-Z

4шт.

21213R1

WASHER

1-1/32 x 2 x 11 ga C-Z

1шт.

20

555602R1

RING

tightener sprocket brg snap

2шт.

21

117142

FUSE,10 Amp, Type 3AG

10 amp feeder clutch cable

1шт.

22

580095R91

BALL BEARING

BEARING, feeder drive tightener hub

1шт.

23

702093C1

CABLE TIE

STRAP, tie

4шт.

24

168134C1

BRACKET, feeder electric clutch capacitor support

1шт.

436803

SCREW, 4-40 x 3/8 C-Z slt pan-hd mach

1шт.

225-14104

NUT,#4-40

no. 4 C-Z hex.

1шт.

131043

LOCK WASHER,#4

Washer, Lock, #4

1шт.

436732

SCREW,Slotted Pan Hd, #10-24 x 1/2"

10-24 x 1/2 C-Z slt-pan-hd mach

2шт.

87304

NUT,#10-24

2шт.

120361

NUT,Hex Mach Screw, #10 - 24

2шт.

25

170694C1

BRACKET ASSY, feeder drive tightener

1шт.

17433C1

BOLT, 1/2 x 1 znd hex-hd mach.

3шт.

120384

WASHER,1/2"

LOCK, 1/2"

3шт.

21041R1

WASHER

17/32 x 2 x 16 ga C-Z

1шт.

26

CHAIN ASSY, feeder drive, Use 2 sections of 33 links and one section of 29 links form 10-ft roll marked 1794D, 4 connecting links 24973R1, one offset link 1398D and one roller link 1396D

1шт.

27

170695C1

CLAMP, feeder clutch hub

1шт.

21161R1

BOLT,Hex, 3/8"-16 x 3 3/4", G2

3/8 x 3-3/4 C-Z hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

28

244641R91

SWITCH

ASSY, feeder clutch throw out

1шт.

29

170689C91

CABLE ASSY, feeder clutch throw out switch

1шт.

30

357929R92

ELECTRIC CABLE

CABLE ASSY, feeder clutch throw-out switch ground, 6.5 in

1шт.

31

362127R1

CLIP

feeder clutch throw out switch cable

2шт.

32

170688C1

CABLE ASSY, oil pressure to electric clutch switch

1шт.
