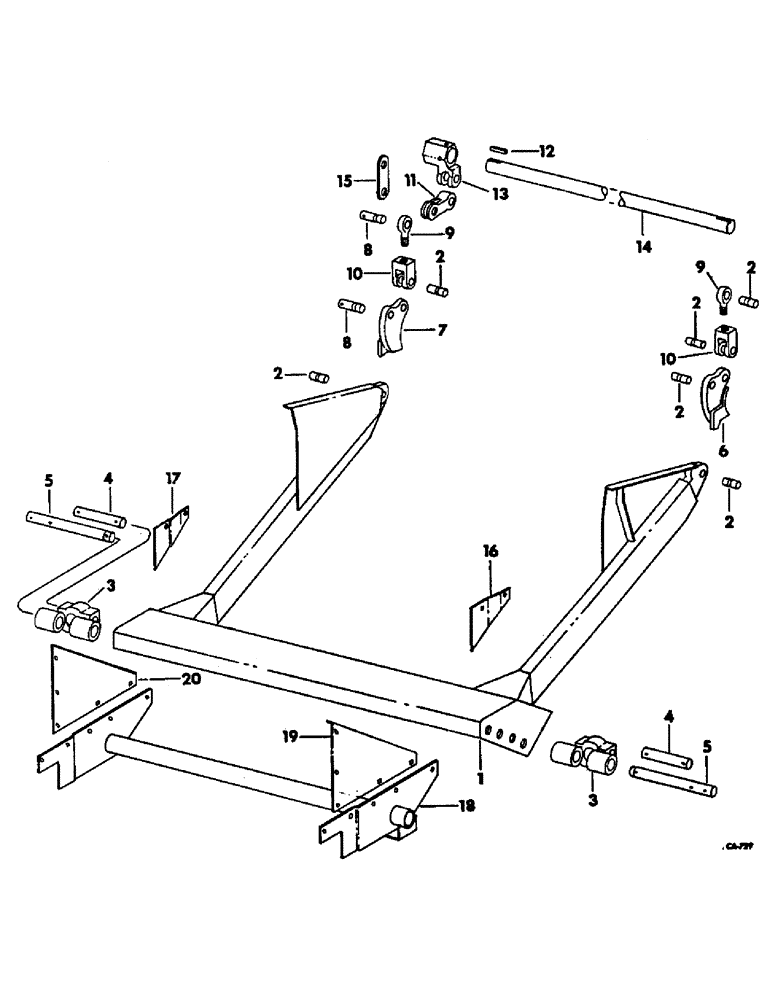

Запчасти Case IH 403 (035A) - FEEDER HITCH ATTATCHMENT (60) - PRODUCT FEEDING

1

170655C1

FRAME ASSY, feeder hitch

1шт.

2

170702C1

PIN, feeder hitch pivot section

6шт.

170703C1

SCREW, set

6шт.

3

170674C1

EXTENSION, hyd cyl

2шт.

4

574322R1

PIN, hyd cyl attaching

2шт.

20340R1

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

5

170673C1

PIN, feeder hitch extension

2шт.

21648R1

LOCK PIN,1/4" x 1 1/4", Slotted

Pin, 1/4" x 1 1/4", Slotted

2шт.

18561R1

LOCK PIN,1/4" x 3", Slotted

Pin, 1/4" x 3", Slotted

2шт.

150724C1

SPLIT PIN/SAFETY PIN

PIN, qa cot.

2шт.

6

170675C1

CLAMP, feeder pivot LH

1шт.

7

170676C1

CLAMP, feeder pivot RH

1шт.

8

170666C1

PIN, feeder pivot RH clamp

2шт.

170703C1

SCREW, set

2шт.

9

170672C1

EYEBOLT, pivot lock

2шт.

10

170667C1

YOKE, feeder lock

2шт.

11

170677C1

ARM, feeder pivot lock LH

1шт.

22210R1

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW, 5/1L x 1/2 C-Z set

2шт.

12

156664C1

KEY, 3/8 x 1-1/4 sq-parallel hardened

2шт.

13

170678C1

ARM, feeder pivot lock RH

1шт.

22210R1

SET SCREW,Hex Soc, 5/16"-18 x 1/2"

SCREW, 5/16 x 1/2 C-Z set

2шт.

14

170671C1

SHAFT, feeder hitch torque

1шт.

15

170670C1

STRAP, feeder hitch pivot lock safety

1шт.

517843R1

COTTER PIN

PIN, qa cot.

2шт.

16

170668C1

GUIDE, feeder hitch LH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

24822R1

BOLT, 1 x 1-1/4 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9849633

NUT,1"-8, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

492-11100

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

17

170669C1

GUIDE, feeder hitch RH

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

24822R1

BOLT, 1 x 1-1/4 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

9849633

NUT,1"-8, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

18

170679C1

SUPPORT ASSY, feeder hitch lift

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

6шт.

19475R1

BOLT,Hex, 1/2" - 13 x 3 1/4", Gr 2

1/2 x 3-1/4 znd hex-hd mach

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

10шт.

120384

WASHER,1/2"

LOCK, 1/2"

10шт.

19

170683C1

REINFORCEMENT, feeder side LH

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

20

170684C1

REINFORCEMENT, feeder side RH

1шт.

12872R1

BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd

CARRIAGE, Short NK, 5/16"-18 x 1", G2, Full Thd

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
