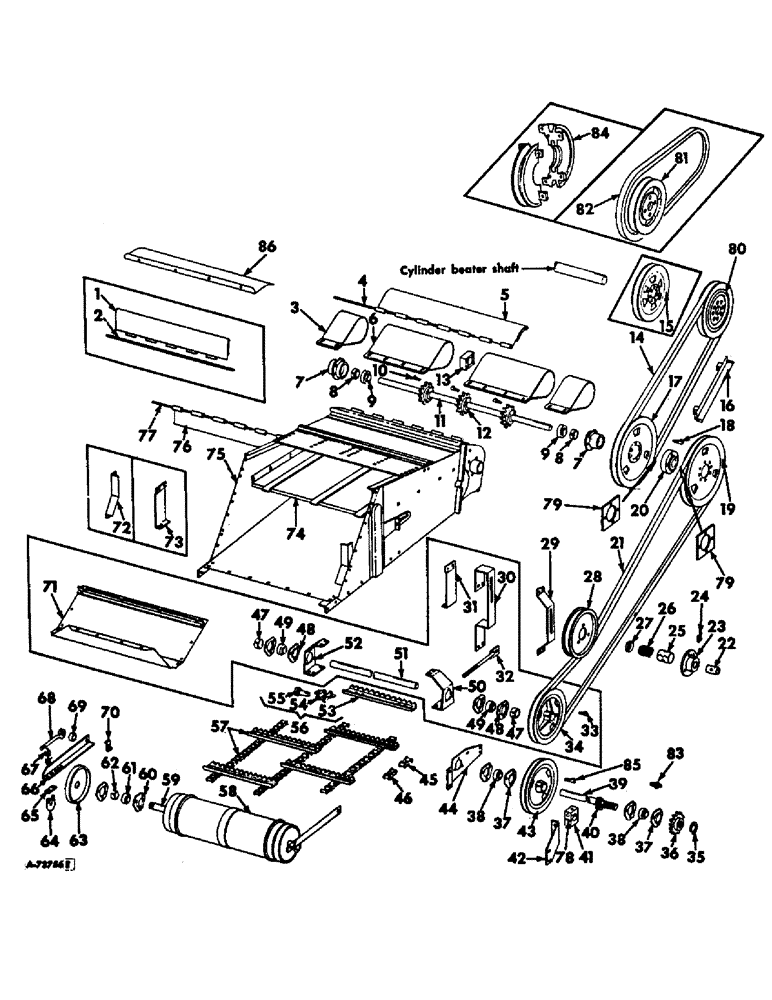

Запчасти Case IH 403 (032) - FEEDER AND FEED CONVEYOR CHAIN AND GRAIN DEFLECTOR (60) - PRODUCT FEEDING

1

NOT USED

1шт.

2

NOT USED

1шт.

3

626613R1

SHIELD

feeder pivot shaft end

2шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

5/16 LOCK WASHER

4шт.

11/32 X 3/4 X 16 GA WASHER

4шт.

4

568476R1

ROD

feeder upper door hinge, Serial no. 19527 and below

1шт.

5

569298R91

DOOR

W/FLANGE, feeder upper shaft, Serial no. 19527 and below, Not for 23.1/18-26 main wheel tires or track

1шт.

5

569651R91

DOOR

W/FLANGE, feeder upper shaft, Serial no. 19527 and below, For 23.1/18-26 main wheel tires or track attachment

1шт.

6

626620R1

SHIELD

feeder pivot shaft center

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

11/32 X 3/4 X 16 GA WASHER

1шт.

7

631633R1

CAGE

BOX, bearing

2шт.

8

455104R11

COLLAR

W/SET SCREW, locking

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

3/8 X 3/8 CUP-PT SET SCREW

2шт.

9

565672R91

BALL BEARING,1.25" ID x 72 mm OD x 1.53125"

ball

1шт.

10

Q3947

KEY,Gib, 3/8" Sq x 1 1/2"

3/8 x 3/8 x 1-1/2 gib

3шт.

11

569274R1

SHAFT

feeder pivot

1шт.

12

564968R1

SPROCKET ASSY.

SPROCKET, feeder upper, 10-T

3шт.

13

NOT USED

1шт.

14

568938R1

BELT

feeder drive, Serial no. 7223 and below

1шт.

14

937932R1

BELT

V-BELT, Feeder drive, Serial no. 7224 and above, Not windrow special, Not used on machines equipped w/chain type feeder

1шт.

14

156062C1

V-BELT,1.26" W x 114.48" L

Feeder Drive, Serial No. 13063 and Above, For Windrow Special, Not Used on Machines Equipped with Chain Type Feeder 1.26" W x 114.48" L

1шт.

15

586304R1

SHEAVE, feeder drive, Serial no. 7223 and below

1шт.

3/8 X 1-3/8 CAP SCREW

4шт.

3/8 NUT

4шт.

3/8 LOCK WASHER

4шт.

16

633516R91

GUIDE W/SUPPORT, feeder drive belt, Not used on machines equipped w/chain type feeder

1шт.

5/16 X 1/2 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

17

571467R1

SHEAVE, feeder driven, Serial no. 7223 and below

1шт.

17

568937R21

PULLEY

SHEAVE ASSY, feeder driven, Serial no. 7224 and above

1шт.

3/8 X 2-3/4 HEX-HD MACH BOLT

4шт.

3/8 HEX. NUT

4шт.

3/8 LOCK WASHER

4шт.

18

240

KEY,Gib, 3/8" Sq x 2 1/2"

3/8 x 3/8 x 2-1/2 gib

1шт.

19

571467R1

SHEAVE, platform jackshaft drive, Serial no. 7223 and below

1шт.

19

568937R21

PULLEY

ASSY, platform jackshaft drive, Serial no. 7224 to 9956, 13-ft grain, 14-ft grain, 15-ft and 16-ft, Serial no. 9957 and above

1шт.

19

150818C11

PULLEY ASSY, platform jackshaft drive, 13-ft rice, 14-ft rice and 18-ft, Serial no. 9957 and above

1шт.

20

571442R1

HUB CAP

HUB, feeder drive sheave

1шт.

3/8 X 2-3/4 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

21

633723R2

V-BELT,1.26" W

Platform jackshaft drive, 13-ft, 14-ft, 15-ft and 16-ft grain, Not for 23.1/18-26 main wheel tire or track 1.26" W

1шт.

21

633728R2

V-BELT,1.26" W

Platform jackshaft drive, For 23.1/18-26 main wheel tires or track attachment, Serial no. 9956 and below 1.26" W

1шт.

21

571434R1

V-BELT,1.26" W

Platform jackshaft drive, 18-ft grain, Not for 23.1/8-26 main wheel tires, Serial no. 9957 and above 1.26" W

1шт.

21

150816C1

V-BELT,1.26" W x 168.28" L

Platform Jackshaft Drive 13-ft Rice and 14-ft Rice, For 23.1/8-26 Main Wheel Tires or Tracks, Serial No. 9957 and Above 1.26" W x 168.28" L

1шт.

22

22847KA

BUSHING

SLEEVE, platform jackshaft drive belt tightener sheave

1шт.

23

632591R11

HUB

W/BEARING, race and washer assy, platform jackshaft sheave tightener, Includes ref. nos. 25, 26 and 27, Not used on machines equipped w/chain type feeder

1шт.

3/8 X 1 MACH BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

24

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, , Not used on machines equipped w/chain type feeder 1/8"-27 x .66 lg

1шт.

25

632592R1

BUSHING

RACE, outer, Not used on machines equipped w/chain type feeder

1шт.

26

ST1302

BEARING

roller, Not used on machines equipped w/chain type feeder

1шт.

27

M23538

WASHER

Not used on machines equipped w/chain type feeder

1шт.

28

568941R11

PULLEY

SHEAVE ASSY, platform jackshaft tightener, Not used on machines equipped w/chain type feeder

1шт.

29

569037R1

BRACKET, platform jackshaft belt tightener sheave

1шт.

5/8 X 4 CRG BOLT W/NUT

1шт.

5/8 LOCK WASHER

1шт.

21/32 X 1-1/4 X 11 GA WASHER

2шт.

575812R1

WASHER

23/32 X 1-1/2 X 11 GA WASHER

1шт.

557270R1

WASHER

29/32 X 1-1/4 X 11 GA WASHER

1шт.

30

NOT USED

1шт.

31

NOT USED

1шт.

32

588406R91

DRAWBOLT W/PLATE, platform jackshaft belt tightener

1шт.

1/2 NUT

2шт.

PO10535

WASHER

17/32 X 1-1/4 X 11 GA WASHER

1шт.

33

NOT USED

1шт.

34

NOT USED

1шт.

35

565644R1

RING, SNAP

SNAP RING, platform jackshaft, Serial no., Serial Range: 501-4643

1шт.

36

633715R1

SPROCKET ASSY.

SPROCKET, platform auger and reel drive, 17-T, 12-ft, 13-ft, 14-ft, 16-ft and 18-ft, Serial no. 9956 and below, 13-ft grain, 14-ft grain and 16-ft, Serial no. 9957 and above

1шт.

36

150819C91

DRIVE SPROCKET

SPROCKET ASSY, platform auger and reel drive 19-T, 13-ft rice, 14-ft rice and 18-ft, Serial no. 9957 and above

1шт.

36

632971R91

SPROCKET W/HUB, platform auger and reel drive, 17-T, 12-ft, 13-ft platform less cutting

1шт.

37

617863R1

FLANGED BEARING

platform jackshaft bearing, 4 used 12-ft, 13-ft, 14-ft, 16-ft and 18-ft, Serial no. 501 to 4643, 2 used outer, Serial no. 4644 and above

1шт.

37

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

platform jackshaft bearing, 2 used inner, 13-ft, 14-ft, 16-ft and 18-ft, Serial no. 4644 to 7223

1шт.

37

565631R1

BEARING CAP,2.441" ID x 4.4375" OD x 0.34375"

platform jackshaft bearing, 1 used inner, Serial no. 7224 and above

1шт.

37

937521R1

FLANGE

platform jackshaft bearing, 1 used inner, Serial no. 7224 and above

1шт.

3/8 X 3/4 CRG BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

38

571588R91

BALL BEARING

BEARING, ball, 2 used, Serial no. 501 to 4806, 1 used outer, Serial no. 4807 and above

1шт.

38

937520R91

BALL BEARING

platform jackshaft inner, Serial no. 4807 and above

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 ptf lub

1шт.

39

589141R12

JACKSHAFT W/COLLAR, platform 12-ft, Serial no., Serial Range: 501-4643

1шт.

39

654824R11

JACKSHAFT W/COLLAR, platform 13-ft, Serial no., Serial Range: 501-4643

1шт.

39

654607R11

JACKSHAFT W/COLLAR, platform 13-ft, Serial no. 4644 and above

1шт.

39

589140R12

JACKSHAFT W/COLLAR, platform 14-ft, Serial no. 501 and 4643

1шт.

39

654606R11

JACKSHAFT W/COLLAR, platform 14-ft, Serial no. 4644 and above

1шт.

39

156124C11

JACKSHAFT ASSY, platform 15-ft

1шт.

39

589139R12

JACKSHAFT W/COLLAR, platform 16-ft, Serial no., Serial Range: 501-4643

1шт.

39

654605R11

JACKSHAFT W/COLLAR, platform 16-ft, Serial no. 4644 and above

1шт.

39

654033R12

JACKSHAFT W/COLLAR, platform 18-ft, Serial no., Serial Range: 501-4643

1шт.

39

654612R11

JACKSHAFT W/COLLAR, platform 18-ft, Serial no. 4644 and above

1шт.

1/2 X 1 MACH BOLT W/NUT

1шт.

1/2 NUT

1шт.

1/2 LOCK WASHER

1шт.

550610R1

WASHER

17/32 X 1-1/2 X 3/16 WASHER

1шт.

551769R1

WASHER

1-13/32 X 2 X 16 GA WASHER

5шт.

40

654435R1

COLLAR

platform jackshaft

1шт.

19993R1

BOLT,Hex, 1/2"-13 x 2 3/4", G8

1/2-13 x 2-3/4 hex-hd type 4

1шт.

102637

NUT,1/2"-13, G5

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

41

571439R1

BEARING

platform jackshaft center, 1 used 13-ft, 14-ft, and 16-ft, serial no. 501 to 4643, 2 used 18-ft, Serial no., Serial Range: 501-4643

1шт.

41

936637R1

CYLINDER END CAP

BEARING, platform jackshaft center, 2 used 13-ft, 14-ft, 15-ft and 16-ft, 4 used 18-ft, Serial no. 4644 and above

1шт.

42

571438R1

SUPPORT, platform jackshaft bearing center, 1 used 14-ft, 15-ft and 16-ft, 2 used 18-ft

1шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

43

571435R1

SHEAVE, platform jackshaft driven, Serial no., Serial Range: 501-4643

1шт.

43

654592R1

SHEAVE, platform jackshaft driven, Serial no. 4644 and above

1шт.

44

571436R1

SUPPORT, platform jackshaft inner bearing, 12-ft, 13-ft, 14-ft, 16-ft and 18-ft, Serial no., Serial Range: 501-4643

1шт.

44

574535R1

SUPPORT, platform jackshaft inner bearing, 12-ft, 13-ft, 14-ft, 16-ft and 18-ft, Serial no. 4644 and above

1шт.

44

633683R1

SUPPORT, platform jackshaft inner bearing 15-ft

1шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

45

588564R11

LINK

W/COTTER AND PIN ASSY, connecting

1шт.

46

588562R91

CHAIN LINK

LINK W/COTTER AND PIN ASSY, offset

1шт.

47

NOT USED

1шт.

48

NOT USED

1шт.

49

NOT USED

1шт.

50

NOT USED

1шт.

51

NOT USED

1шт.

52

NOT USED

1шт.

53

569272R1

SLAT, feed conveyor chain, Not serviced separately

1шт.

54

588567R11

DRAG LINK

LINK W/COTTER AND PIN, attaching, Includes ref no. 55

1шт.

55

588565R1

AXLE PIN

PIN, attaching link

1шт.

1/8 X 1/2 COTTER PIN

1шт.

56

588569R91

SLAT

W/ATTACHING LINK, feed conveyor chain, LH

1шт.

56

588570R91

SLAT

W/ATTACHING LINK, feed conveyor chain, RH

1шт.

57

584415R91

CHAIN (AG)

CHAIN W/SLATS, feed conveyor, Not for 23.1/18-26 main wheel tires or track

1шт.

57

584418R91

CHAIN (AG)

CHAIN W/SLATS, feed conveyor for 23.1/18-26 main wheel tires or track attachment

1шт.

58

584421R91

DRUM

W/HUB, feed conveyor lower, Serial no. 9956 and below

1шт.

454862

BOLT,Hex, 5/16" - 18 x 3/4", Gr 8

5/16 X 3/4 CAP SCREW

6шт.

115548

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

6шт.

58

153316C91

ROLLER

DRUM ASSY, feed conveyor lower, Serial no. 9957 and above

1шт.

5/16 C-Z NUT

6шт.

5/16 C-Z LOCKWASHER

6шт.

59

569275R1

SHAFT

feeder lower

1шт.

60

571424R1

FLANGE

bearing, Serial no. 9956 and below

4шт.

61

554991R91

BEARING

ball, Serial no. 9956 and below

2шт.

61

565617R91

BALL BEARING

ball, optional for bearing 561210R92

2шт.

NOTE:REF 61B,SOME UNITS MAY REQUIRE 165360C1 WITH .4689 BOLT HOLES.USE BEARING 564991R92 11/13/96

1шт.

61

561210R92

BEARING

ball, optional for bearing 565617R91, Serial no. 9957 and above

2шт.

62

658006R11

COLLAR

W/SET SCREW, locking, serial no. 9956 and below

2шт.

62

565618R11

RETAINER

COLLAR W/SET SCREW, locking

2шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT. SET SCREW, For use with 565617R91 bearing

2шт.

62

561211R11

COLLAR

W/SET SCREW, locking

2шт.

5/16 X 5/16 CUP-PT SET SCREW, For use with 561210R92 bearing, Serial no. 9957 and above

2шт.

63

559096R91

SHIELD W/SUPPORT, feed conveyor lower sprocket

2шт.

64

558456R1

BOLT (SPREADER),3/8" - 16 x 2 1/4"

U-BOLT, feeder lower shaft

2шт.

3/8 NUT

4шт.

3/8 LOCK WASHER

4шт.

65

558455R1

STRAP

SHIM, feed shaft u-bolt

8шт.

66

583930R1

ARM

feeder lower shaft adjusting LH

1шт.

66

583931R1

ARM

feeder lower shaft adjusting RH

1шт.

3/8 X 7 MACH BOLT

2шт.

109886

NUT

3/8 SLT NUT

2шт.

3/32 X 3/4 COTTER PIN

2шт.

115549

LOCK WASHER,Int Tooth, 3/8"

WASHER, LOCK, Int Tooth, 3/8"

2шт.

13/32 X 3/4 X 16 GA WASHER

8шт.

67

PO144

SPRING

feeder lower shaft adjusting

4шт.

68

564979R1

BOLT (SPREADER),7/16" - 14 x 6"

BOLT, feed conveyor chain tightener

2шт.

271501

SOCKET

7/16 C-Z NUT

4шт.

69

M79156

BUSHING

feed conveyor chain tightener bolt

1шт.

70

584013R1

STOP

feeder lower adjusting shaft bolt

1шт.

3/8 X 1-1/4 SQ-HD MACH BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

71

NOT USED

1шт.

72

631318R1

DEFLECTOR, feed conveyor chain grain LH

1шт.

72

631319R1

DEFLECTOR, feed conveyor chain grain RH

1шт.

73

571224R91

STOP W/KEY, feeder lower shaft arm bottm RH

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

2шт.

74

626618R91

SHIELD W/STIFFENER AND STRIP, Not for 23.1/18-26 main wheel tires or track

1шт.

74

626621R91

SHIELD W/STIFFENER AND STRIP, For 23.1/18-26 main wheel tires or track attachment

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

75

631628R93

FEEDER ASSY, Includes ref. no. 7, Serial no. 19527 and below, Not for 23.1/18-26 main wheel tires or track

1шт.

75

631629R93

FEEDER ASSY, Includes ref. no. 7, Serial no. 19527 and below, For 23.1/18-26 main wheel tires or track attachment

1шт.

75

170631C91

FEEDER ASSY, Includes ref. no. 7, Serial no. 19528 and above, Not for 23.1/18-26 main wheel tires or track

1шт.

75

170643C91

FEEDER ASSY, Includes ref. no. 7, Serial no. 19528 and above, For 23.1/18-26 main wheel tires or track attachment

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 X 1/2 CRG BOLT W/NUT

1шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

5/16 X 1-1/4 CRG BOLT W/NUT

1шт.

7/16 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

1/2 X 1 CRG BOLT W/NUT

1шт.

7/16 X 1 MACH BOLT W/NUT

1шт.

7/16 X 1-1/4 MACH BOLT W/NUT

1шт.

1/2 X 3/4 MACH BOLT W/NUT

1шт.

1/2 X 1 MACH BOLT W/NUT

1шт.

1/2 X 1-1/4 MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

7/16 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

76

568689R1

EXTENSION

feed plate, Not for use with bean special or windrow special, See note

1шт.

77

568476R1

ROD

feed plate extension

1шт.

78

936639R1

SHIM

platform jackshaft center bearing, Used as required, Serial no. 4644 and above

1шт.

79

568939R2

SPACER

feeder driven pulley and jackshaft drive pulley, Serial no. 4644 and above

2шт.

80

150493C11

PULLEY ASSY, feeder drive, Serial no. 7224 and above, Not used on machines equipped w/chain type feeder

1шт.

3/8 X 1-1/4 CAP SCREW

4шт.

3/8 NUT

4шт.

3/8 LOCK WASHER

4шт.

81

588984R1

PULLEY, feeder drive, slow speed feeder drive attachment

1шт.

82

589145R1

V-BELT 1.26" W, Feeder drive, Slow speed feeder drive attachment 1.26" W

1шт.

83

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4-28 ptf str lub

1шт.

84

633764R11

SHEAVE ASSY, feeder drive split, For machines equipped with four row corn heads

1шт.

84

152307C11

PULLEY ASSY, feeder drive split, For machines equipped w/three row corn heads

1шт.

19328R1

LOCK PIN,3/8" x 3/4", Slotted

2шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

Q837

HEADED PIN,15.88mm OD x 38.1mm L

PIN, 5/8 x 1-1/2 std-hd dld

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

85

Q3952

KEY,Gib, 3/8" Sq x 2 3/4"

3/8 x 3/8 x 2-3/4 gib

1шт.

86

170653C1

DOOR, feeder upper, Serial no. 19528 and above, Not for 23.1/18-26 main wheel tires or track

1шт.

86

170654C1

DOOR, feeder upper, Serial no. 19528 and above, For 23.1/18-26 main wheel tires or track attachment

1шт.
