Запчасти Case IH 403 (333) - BAT ASSY, 18-FOOT (58) - ATTACHMENTS/HEADERS

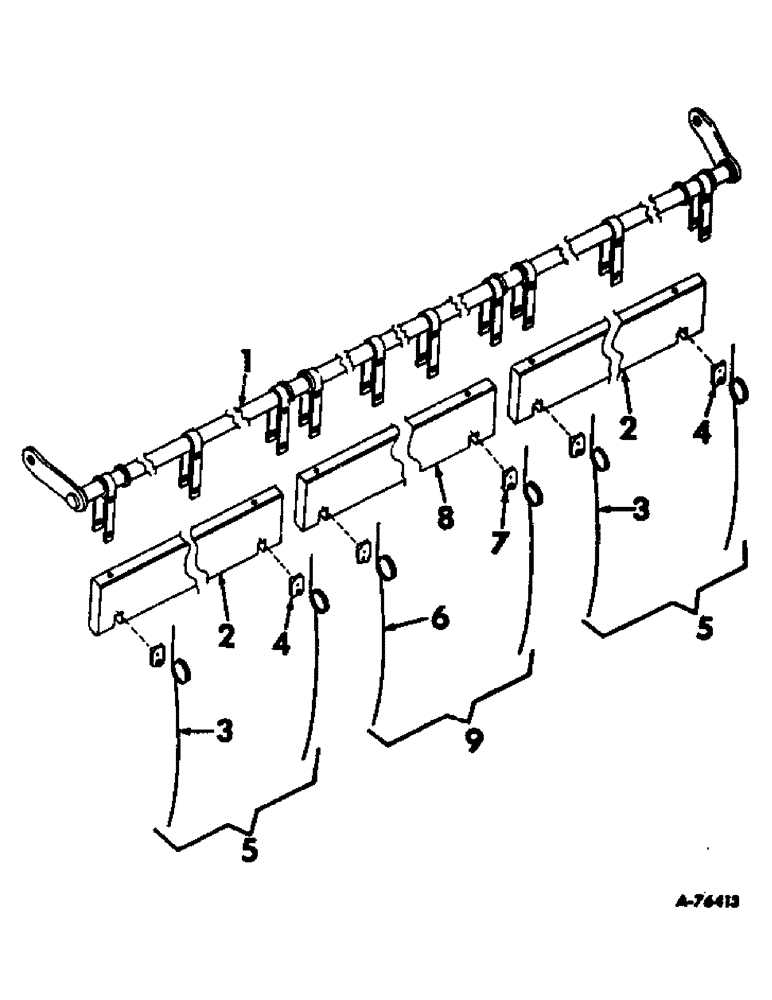

Схема запчастей Case IH 403 - (333) - BAT ASSY, 18-FOOT (58) - ATTACHMENTS/HEADERS
2
3
5
4
3
7
6
5
4
1
8
2
9

Артикул

Название

Примечание

Количество

167619C91

BAT

ASSY, batshaft 18-ft, Consists of the following

1шт.

1

167675R1

BATSHAFT

1шт.

23687R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1 3/8", Gr 2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 1 3/8", G2

24шт.

9413946

LOCK NUT,1/4"-20, GA

NUT, 1/4 C-Z hex. lock

24шт.

2

BAT, wood, Not serviced separately order bat assy 167689C91

2шт.

3

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat

30шт.

4

592616R1

CLIP

riveted tine

30шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

truss-hd tubular

30шт.

5

167689C91

BAT

ASSY, batshaft, Includes ref nos. 2, 3 & 4

2шт.

6

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat

14шт.

7

592616R1

CLIP

riveted tine

14шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

truss-hd tubular

14шт.

8

BAT, wood, Not serviced separately order bat assy 598194R91

1шт.

9

598194R91

BAT ASSY.

BAT ASSY, Includes ref nos. 6, 7 & 8

1шт.

Выбрано товаров: 14
