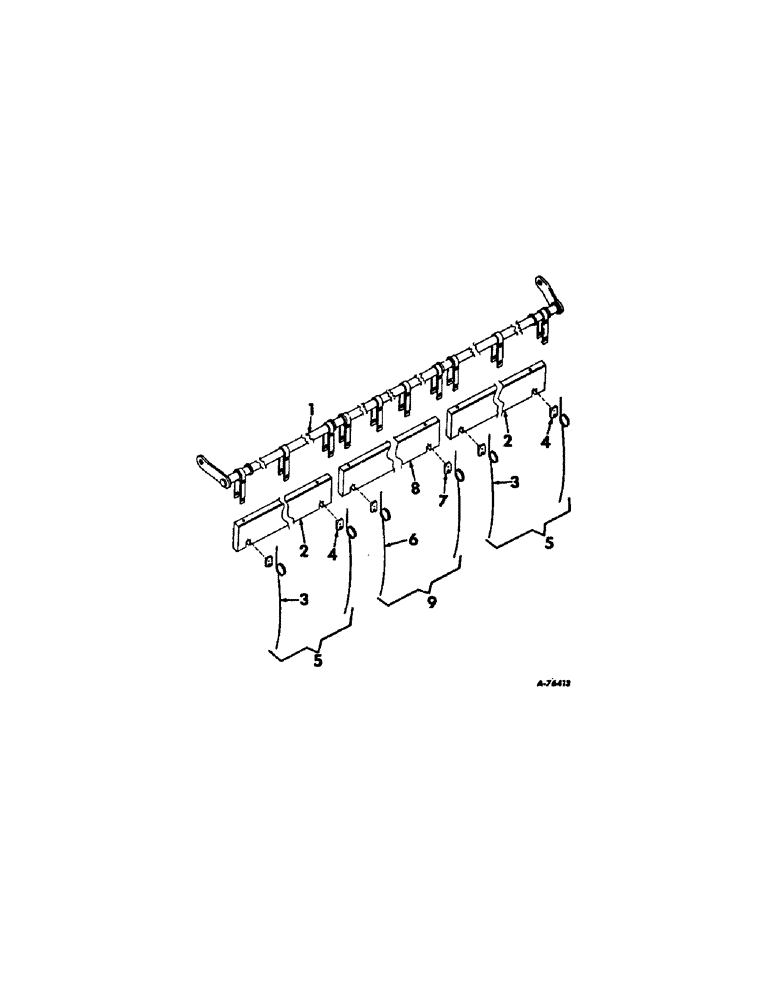

Запчасти Case IH 403 (332) - BAT ASSY, 15-FOOT (58) - ATTACHMENTS/HEADERS

Артикул

Название

Примечание

Количество

167615C91

BAT

ASSY, batshaft 15-ft, Consists of the following

1шт.

1

167678C1

SHAFT

BATSHAFT

1шт.

23687R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 1 3/8", Gr 2

BOLT, CARRIAGE, Short NK, 1/4"-20 x 1 3/8", G2

24шт.

9413946

LOCK NUT,1/4"-20, GA

NUT, 1/4 C-Z hex. lock

24шт.

2

BAT, wood, Not serviced separately order bat assy 598188R91

2шт.

3

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat

26шт.

4

598616R1

CLIP, riveted tine

26шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

truss-hd tubular

26шт.

5

598188R91

BAT

ASSY, Includes ref nos. 2, 3 & 4

2шт.

6

598171R1

TINE,Coiled, 1 Prong, 283mm L

bat

11шт.

7

592616R1

CLIP

riveted tine

11шт.

23055R1

RIVET,Tr Hd, 3/16" x 1"

truss-hd tubular

11шт.

8

BAT, wood, Not serviced separately order bat assy 167683C91

1шт.

9

167683C91

BAT ASSY, Includes ref nos. 6, 7 & 8

1шт.

Выбрано товаров: 14
