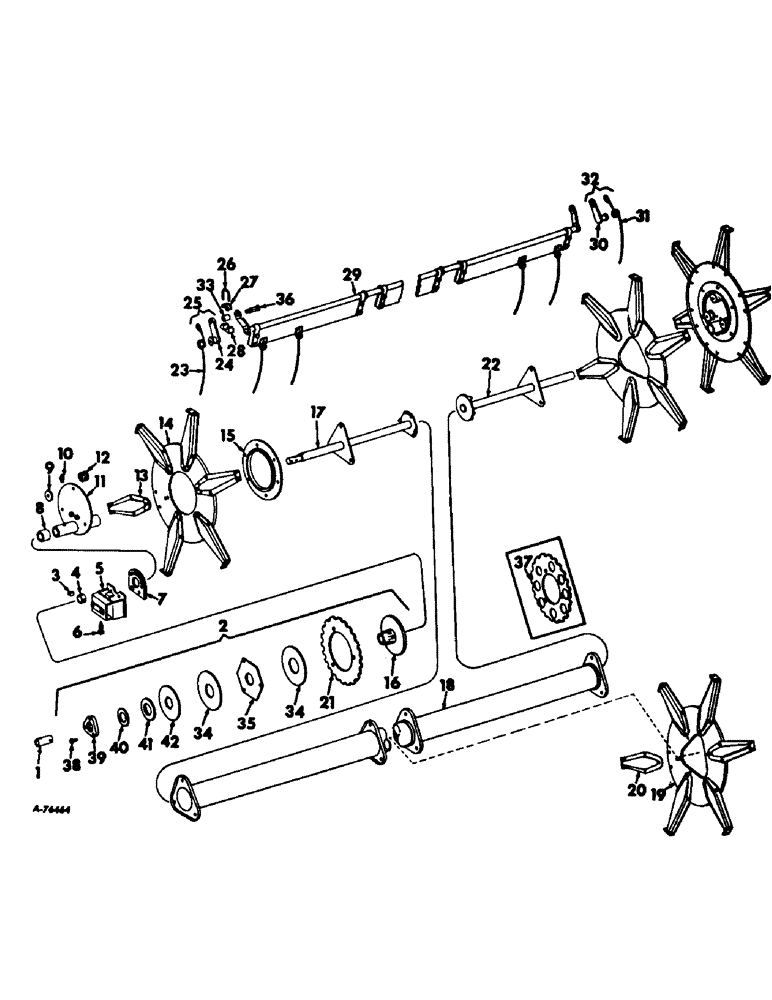

Запчасти Case IH 403 (329) - PICKUP REELS (58) - ATTACHMENTS/HEADERS

1

167612C1

SPACER

reel driven hub

1шт.

2

165329C91

COVER ASSY

CLUTCH ASSY, reel drive slip 29-T, Not for use w/hyd reel dr, Includes ref nos. 16, 21, 34, 35, and 38 thru 42

1шт.

3

117977

WOODRUFF KEY

KEY, 5/16 x 1 Woodruff, in reel driven sprocket hub

1шт.

4

598243R1

NO LONGER SERVICED

COLLAR

1шт.

139074

BRACKET

3/8 x 5/16 hex-soc-hd cup

4шт.

5

167609C1

BRACKET, eccentric adjusting

2шт.

6

633184R1

SET SCREW

1/2 x 2-1/4 C-Z sq-hd set

2шт.

120238

JAM NUT,Jam, 1/2"-13, G5

1/2 C-Z hex. jam

2шт.

20328R1

COTTER PIN,3/16" x 1 1/2"

3/16" x 1 1/2"

1шт.

7

598217R1

PLATE

eccentric adjusting

2шт.

18795R1

BOLT,Hex, 7/16"-14 x 1 1/4", G2

7/16 x 1-1/4 znp hex-hd mach

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16 C-Z hex.

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

8

167666C1

BUSHING

eccentric roller frame

4шт.

9

167685C1

KNOB

pitch adjustment

2шт.

17433R1

HARDWARE,Hex, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 znd hex-hd mach

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

10

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

4шт.

11

598241R11

HUB ASSY.

FRAME ASSY, eccentric roller, Includes ref nos. 8 & 10

2шт.

12

598242R91

ROLLER BEARING,0.376" ID x 2.25" OD x 1"

BEARING ASSY, roller ball

6шт.

18780R1

BOLT,Hex, 3/8"-16 x 1 3/4", G2

3/8 x 1-3/4 znd hex-hd mach

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

13

167657C1

ARM

ASSY, eccentric reel

12шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 znp hex-hd mach

12шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 znp hex-hd mach

24шт.

120376

NUT,5/16"-18, G5

36шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

36шт.

14

167658C1

PLATE

eccentric spider

2шт.

15

167661C1

RING,271.65mm ID x 320.68mm OD

eccentric control

2шт.

16

167624C1

HUB

slip clutch

1шт.

191950

SET SCREW,Hdls Hex Skt, 5/16" - 18 x 3/8", Cup Pt

SCREW, 5/16 x 3/8 C-Z hex-doc-hd cap

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

17

167607C1

SHAFT, driving end

1шт.

18

167601C1

SHAFT

center 13-ft

1шт.

18

167614C1

SHAFT, center 14-ft

1шт.

18

167616C1

SHAFT, center 15-ft

1шт.

18

167618C1

SHAFT

center 16-ft

1шт.

18

167620C1

SHAFT, center 18-ft

1шт.

18778R1

SCREW,Hex, 3/8"-16 x 3/4", G2

BOLT, 3/8 x 3/4 C-Z hex-hd mach

6шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z hex-hd mach

6шт.

443335

BOLT

NUT, 3/8 hex. lock

12шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

12шт.

619856R1

WASHER

13/32 x 1 x 16 ga C-Z

12шт.

19

167653C1

PLATE

spider

4шт.

20

167657C1

ARM

ASSY, reel

24шт.

18763R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 x 1/2 znp hex-hd mach

72шт.

120376

NUT,5/16"-18, G5

72шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

72шт.

21

167623C1

SPROCKET ASSY.

SPROCKET, slip clutch 29-T

1шт.

180075

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

SCREW, 5/16 x 5/8 znp hex-hd cap

3шт.

22

167608C1

SHAFT

driven end

1шт.

23

167652C1

TINE,Coiled, 1 Prong, 437mm L

FINGER, aux pickup LH

6шт.

24

592627R21

STRAP

ASSY, finger LH

6шт.

25

167605C91

TINE

FINGER ASSY, aux pickup LH, Includes ref no. 23 & 24

6шт.

26

598236R1

U-BOLT,U, 1/4" - 20

BOLT, U

36шт.

231-4144

NUT,1/4"-20, GB

NUT, 1/4-20 cdp hex. lock

72шт.

27

598235R1

BEARING CAP,1.025"

bearing

36шт.

28

598234R1

BASE

bearing

36шт.

29

167600C91

BAT

ASSY, batshaft, 13-ft, For components see list of parts under bat assy, 13-ft

6шт.

29

167613C91

BAT

ASSY, batshaft, 14-ft, For components see list of parts under bat assy, 14-ft

6шт.

29

167615C91

BAT

ASSY, batshaft, 15-ft, For components see list of parts under bat assy, 15-ft

6шт.

29

167617C91

BAT

ASSY, batshaft, 16-ft, For components see list of parts under bat assy, 16-ft

6шт.

29

167619C91

BAT

ASSY, batshaft, 18-ft, For components see list of parts under bat assy, 18-ft

6шт.

30

592627R21

STRAP

ASSY, finger RH

6шт.

31

167651C1

TORSION SPRING

FINGER, aux pickup RH

6шт.

32

167606C91

TINE

FINGER ASSY, aux pickup RH, Includes ref no. 30 & 31

6шт.

33

598246R1

SPACER

tubing

12шт.

34

167625C1

FRICTION WASHER

friction 2-1/8 x 7

2шт.

35

167628C1

WASHER

2-1/8 x 7 x 3/16 friction plate

1шт.

36

592631R1

BOLT

hex. shank

12шт.

472154R1

LOCK NUT,1/2"-20, GB

NUT, 1/2-20 hex. lock

12шт.

120384

WASHER,1/2"

LOCK, 1/2"

12шт.

21331R1

WASHER

15/32 x 1-1/4 x 16 ga C-Z

12шт.

37

167660C1

SPROCKET, reel driven 39-T

1шт.

37

168310C1

SPROCKET ASSY.

SPROCKET, reel driven 50-T, slow speed special, Not used w/hyd reel drive

1шт.

38

20900R1

SET SCREW

1/2 x 1 C-Z sq-hd cup pt set

3шт.

39

167629C1

NUT

adjustment

1шт.

40

167610C1

WASHER

2-1/8 x 3-1/2 x 1/4 special

1шт.

41

167626C1

WASHER

2-1/8 x 4-1/4 belleville

5шт.

42

167627C1

WASHER

2 x 7 x 3/16 special hex.

1шт.
