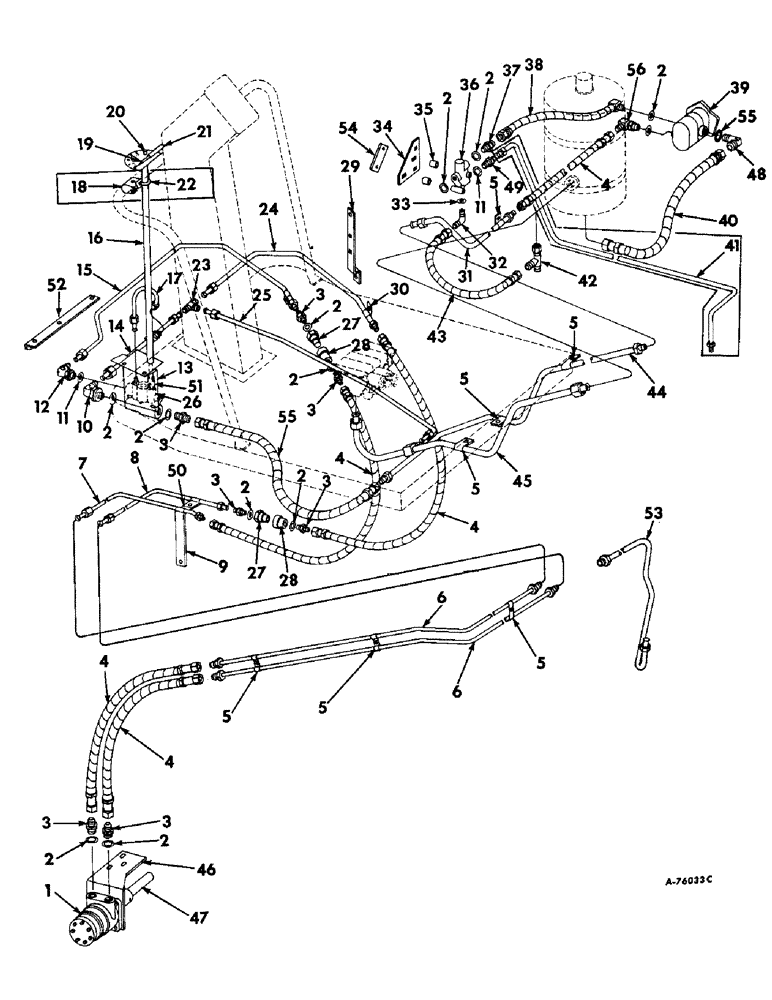

Запчасти Case IH 403 (295) - WINDROW PICKUP HYDRAULIC DRIVE DIAGRAM, BELT TYPE (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
1
935741R91
MOTOR ASSY, hydraulic pickup drive, For components see list of parts under details of reel drive motor
1шт.
2
364885R1
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
12шт.
3
481352R1
HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring
CONNECTOR
7шт.
4
587582R91
HOSE ASSY.
HOSE ASSY
6шт.
5
587501R2
CLAMP
CLIP, tube
10шт.
5/16 X 1 HEX-HD MACH BOLT
4шт.
5/16 X 1 CRG BOLT
1шт.
5/16 HEX. NUT
5шт.
5/16 MED LOCK WASHER
5шт.
6
935745R11
PIPE ASSY, drive to motor lower, 10-ft
2шт.
6
936590R11
PIPE ASSY, drive to motor lower, 12-ft
2шт.
7
935742R11
PIPE ASSY, drive upper
1шт.
8
935746R11
PIPE ASSY, drive upper
1шт.
9
628562R1
BRACKET, clip
1шт.
5/16 NUT
1шт.
5/16 X 3/4 CAP SCREW
1шт.
5/16 LOCK WASHER
1шт.
10
574874R91
ELBOW
2шт.
12
9410977
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, O-Ring
1шт.
13
634781R1
BRACKET, flow divider support, 10-ft and 12-ft serial no. 7223 and below
1шт.
13
939681R1
BRACKET, flow divider support, 10-ft and 12-ft serial no. 7224 and above
1шт.
1/4 NUT
2шт.
1/4 X 2-1/4 CAP SCREW
2шт.
1/4 LOCK WASHER
2шт.
14
935701R91
PIPE ASSY, flow divider to return tee, 10-ft and 12-ft serial no. 7223 and below
1шт.
14
939672R91
PIPE ASSY, flow divider to return tee, 10-ft and 12-ft serial no. 7224 and above
1шт.
15
935644R11
PIPE ASSY, flow divider to feeder hose, 10-ft and 12-ft serial no. 7223 and below
1шт.
15
939679R91
PIPE ASSY, flow divider to feeder hose, 10-ft and 12-ft serial no. 7224 and above
1шт.
16
634767R92
MOUNTING W/INDICATOR, control handle, 10-ft and 12-ft serial no. 7223 and below
1шт.
16
939671R91
MOUNTING ASSY, control handle, 10-ft and 12-ft serial no. 7224 and above
1шт.
5/16 X 1/2 CRG BOLT W/NUT
1шт.
5/16 X 1 CRG BOLT W/NUT
2шт.
5/16 LOCK WASHER
3шт.
18673R1
CARRIAGE BOLT,Short Sq Nk, 5/16" - 18 x 1/2", Gr 2
5/16 X 1/2 C-Z CRG BOLT W/NUT
1шт.
12872R1
BOLT,Short NK, 5/16"-18 x 1", G2, Full Thd
CARRIAGE, , w/nut Short NK, 5/16"-18 x 1", G2, Full Thd
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
17
935702R11
PIPE ASSY, relief valve return
1шт.
18
935671R1
BRACKET, control hand mounting, 10-ft and 12-ft serial no. 7223 and below
1шт.
1/4 X 1-3/4 MACH BOLT W/NUT
1шт.
1/4 LOCK WASHER
1шт.
19
634765R92
ARM W/HANDLE, flow control valve, 10-ft and 12-ft serial no. 7223 and below
1шт.
19
939708R91
HANDLE ASSY, flow divider, 10-ft and 12-ft serial no. 7223 and above
1шт.
20
634980R1
STOP, flow control valve handle
1шт.
1/4 NUT
1шт.
1/4 LOCK WASHER
1шт.
21
634976R1
GRIP, control valve handle, 10-ft and 12-ft serial no. 7223 and below
1шт.
21
939928R1
GRIP, control valve handle, 10-ft and 12-ft serial no. 7224 and above
1шт.
22
634824R1
U-BOLT, control to support, 10-ft and 12-ft serial no. 7223 and below
1шт.
1/4 NUT
2шт.
1/4 LOCK WASHER
2шт.
23
9402982
TEE,3/4"-16, 37 Degree
1шт.
24
935645R11
PIPE ASSY, return to tee, 10-ft and 12-ft serial no. 7223 and below
1шт.
24
939677R91
PIPE ASSY, return to tee, 10-ft and 12-ft serial no. 7224 and above
1шт.
25
935684R11
PIPE ASSY, drive return, 10-ft and 12-ft serial no. 7223 and below
1шт.
25
939680R91
PIPE ASSY, drive return, 10-ft and 12-ft serial no. 7224 and above
1шт.
26
634743R91
DIVIDER ASSY, flow, For components see list of parts under details of flow divider
1шт.
27
385149R1
COUPLING ASSY, self sealing male
2шт.
28
395150R91
COUPLING, QUICK, FEM
COUPLING ASSY, self sealing female
2шт.
29
935642R1
BRACKET, hydraulic clip holder
1шт.
30
277889R1
CLIP
1шт.
5/16 X 1 CRG BOLT W/NUT
2шт.
5/16 X 1 MACH BOLT W/NUT
3шт.
5/16 LOCK WASHER
5шт.
31
935686R11
PIPE ASSY, pump to flow divider upper
1шт.
32
9410976
ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring
1шт.
33
O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro
6-1, 90 Duro, .468" ID x .078" Thk
1шт.
34
653903R1
BRACKET, flow divider mounting
1шт.
1/4 X 2-3/4 CRG BOLT W/NUT
2шт.
3/8 X 1 CRG BOLT WNUT
2шт.
1/4 LOCK WASHER
2шт.
3/8 LOCK WASHER
2шт.
35
U13039
SPACER
flow divider
2шт.
36
570830R91
VALVE ASSY, flow divider, For components see list of parts under details of flow divider valve
1шт.
37
9410204
HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring
CONNECTOR
1шт.
38
653319R91
HOSE ASSY, hydraulic
1шт.
39
632862R91
PUMP ASSY, hydraulic, For components see list of parts under details of hydraulic pump, Serial no. 9956 and below
1шт.
39
154680C92
PUMP
ASSY, hyd, For components see list of parts under details of hydraulic pump, Serial no. 9957 and above
1шт.
40
935703R91
HOSE ASSY, suction, Serial no. 9956 and below
1шт.
40
154683C91
HOSE ASSY, suction, Serial no. 9957 and above
1шт.
41
937576R11
PIPE ASSY, upper pressure
1шт.
42
9410332
TEE,37 Degree, 9/16"-18, x 9/16"-18, Fem Sw Run
1шт.
43
632455R91
HOSE
ASSY, hydraulic
1шт.
44
935689R11
PIPE ASSY, pump to flow divider lower, 10-ft and 12-ft serial no. 7223 and below
1шт.
44
939676R91
PIPE ASSY, pump to flow divider lower, 10-ft and 12-ft serial no. 7224 and above
1шт.
45
935685R91
PIPE ASSY, lower return, Serial no. 7223 and below
1шт.
45
935673R91
PIPE ASSY, lower return, Serial no. 7224 and above
1шт.
46
935744R1
BRACKET, motor mounting, 10-ft, 12-ft serial no. 13063 and above
1шт.
46
938127R1
BRACKET, motor mounting, 12-ft
1шт.
3/8 X 3/4 MACH BOLT W/NUT
4шт.
3/8 X 1 MACH BOLT W/NUT
3шт.
3/8 LOCK WASHER
7шт.
13/32 X 3/4 X 16 GA WASHER
3шт.
47
935743R1
COUPLING, motor, 10-ft, 12-ft, Serial no. 9957 and above
1шт.
1/8 X 3/4 COT. PIN
1шт.
AB5331
5/16 X 2-1/8 DLD PIN
1шт.
48
9402867
ELBOW,90 Degree, 1 1/16"-12, 37 Degree x 3/4"-14, NPTF
Serial no. 9956 and below
1шт.
48
9410981
ELBOW,90 Degree, 1 5/16"-12, 37 Degree x 1 5/16"-12, O-Ring
Serial no. 9957 and above
1шт.
49
587639R1
HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring
CONNECTOR, valve
1шт.
50
567711R1
SPACER
1шт.
51
634762R1
COLLAR, control valve
1шт.
1/8 X 1-1/4 COT. PIN
1шт.
1/4 X 1 ROLL PIN
1шт.
52
939688R1
ANGLE, control support, 10-ft and 12-ft serial no. 7724 and above
1шт.
53
654581R11
PIPE ASSY, rear pressure, 10-ft and 12-ft serial no. 7224 and above
1шт.
54
154987C1
STRAP, steering flow divider pad, Serial no. 9957 and above
1шт.
55
296247R1
O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk
For 1 in. OD tubing, Serial no. 9957 and above
1шт.
56
936450R91
ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring
7/8-14 37 deg hyd flare tube 90 deg
1шт.
