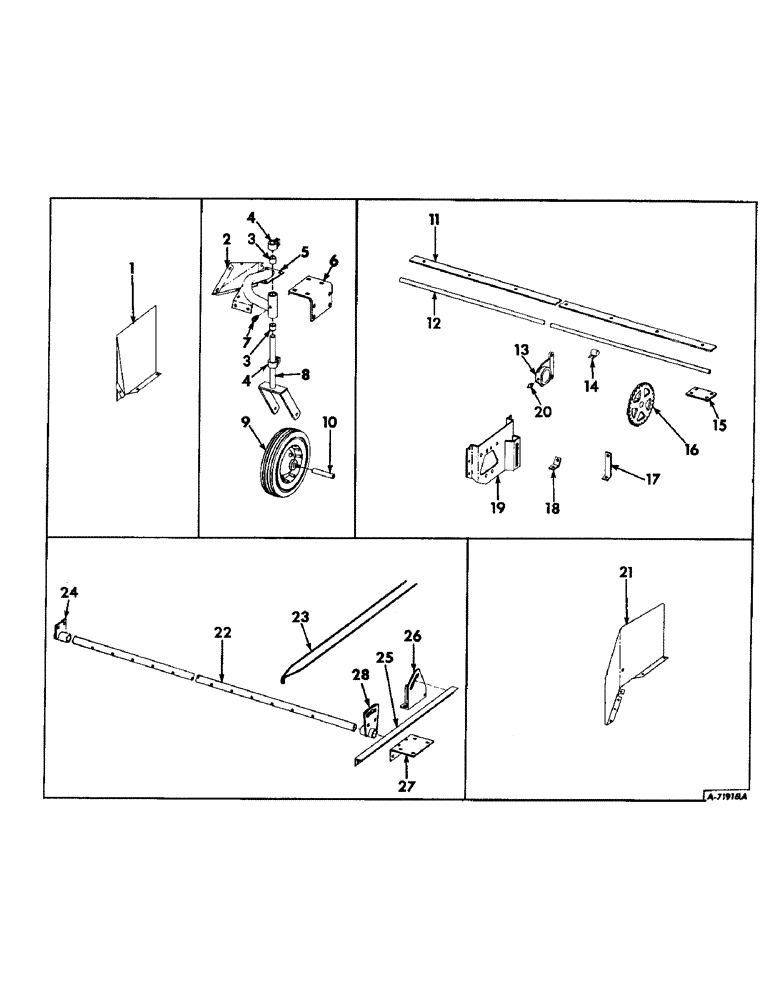

Запчасти Case IH 403 (293) - WINDROW PICKUP, BELT TYPE, KEY TO UNITS (58) - ATTACHMENTS/HEADERS

1

634098R1

SHIELD, wind deflector LH, for use with gauge wheels, grain

1шт.

1

634099R1

SHIELD, wind deflector RH, for use with gauge wheels, grain

1шт.

1/4 X 1/2 CRG BOLT W/NUT

2шт.

5/16 X 3/4 CRG BOLT W/NUT

4шт.

1/4 LOCK WASHER

2шт.

5/16 LOCK WASHER

4шт.

2

633002R1

SHIELD, wheel support LH, gauge, grain

1шт.

2

633003R1

SHIELD, wheel support RH, gauge, grain

1шт.

1/4 X 1/2 CRG BOLT W/NUT

4шт.

1/4 LOCK WASHER

4шт.

3

454172R1

BUSHING

wheel pivot shaft housing, gauge, grain

4шт.

4

633000R1

CLAMP, yoke pivot shaft, gauge wheels, grain

4шт.

7/16 X 1-1/2 CRG BOLT W/NUT

4шт.

7/16 LOCK WASHER

4шт.

5

155261C91

SUPPORT ASSY, gauge wheel LH, Includes ref no. 3, grain

1шт.

5

155262C91

SUPPORT ASSY, gauge wheel RH, Includes ref no. 3, grain

1шт.

6

632998R91

STIFFENER W/GUSSET, wheel anchor, gauge, grain

1шт.

1/4 X 1/2 CRG BOLT W/NUT, parts necessary to repostion pickup attachment belt type on platforms for use in grass crops, 12 ft. platforms, not 12 ft. pickups

2шт.

3/8 X 1-3/4 CRG BOLT W/NUT

8шт.

1/4 LOCK WASHER

2шт.

3/8 LOCK WASHER

8шт.

7

219-8

LUBE NIPPLE,1/4" - 28 NPTF

FITTING, 1/4 straight lubrication, gauge wheels, grain

2шт.

8

632993R91

YOKE W/SIDES, gauge wheel, grain

2шт.

1/2 X 5-3/4 MACH BOLT W/NUT

2шт.

1/2 LOCK WASHER

2шт.

9

633001R92

WHEEL W/TIRE ASSY, gauge, grain

2шт.

10

632990R1

BUSHING

SLEEVE, gauge wheel hub, grain

2шт.

25/32 X 1-1/2 X 16 GA WASHER

4шт.

615168R1

WASHER

25/32 X 1-1/2 X 11 GA WASHER

4шт.

551658R1

WASHER

25/32 X 1-1/4 X 22 GA WASHER

4шт.

11

633140R1

PAD, finger wear, parts necessary to repostion pickup attachment belt type on platforms for use in grass crops, 12 ft. platforms, not 12 ft. pickups

1шт.

12

633130R1

STRIPPER, finger, parts necessary to repostion pickup attachment belt type on platforms for use in grass crops, 12 ft. platforms, not 12 ft. pickups

1шт.

13

633134R1

BRACKET

LH pivot, parts necessary to repostion pickup attachment belt type on platforms for use in grass crops, 12 ft. platforms, not 12 ft. pickups

2шт.

7/16 X 1-1/4 MACH BOLT W/NUT

4шт.

14

633131R1

CLIP, finger stripper, parts necessary to repostion pickup attachment belt type on platforms for use in grass crops, 12 ft. platforms, not 12 ft. pickups

12шт.

3/8 X 1 CRG BOLT W/NUT

12шт.

3/8 LOCK WASHER

12шт.

15

633139R1

STRAP, pickup support anchor, parts necessary to repostion pickup attachment belt type on platforms for use in grass crops, 12 ft. platforms, not 12 ft. pickups

2шт.

3/8 X 1 CRG BOLT W/NUT

8шт.

3/8 LOCK WASHER

8шт.

16

633147R1

SPROCKET, main drive, parts necessary to repostion pickup attachment belt type on platforms for use in grass crops, 12 ft. platforms, not 12 ft. pickups

1шт.

1/8 X 3/4 COTTER PIN

1шт.

AB5331

5/16 X 2-1/8 DLD PIN

1шт.

17

633143R1

STRAP, jackshaft shield upper, parts necessary to repostion pickup attachment belt type on platforms for use in grass crops, 12 ft. platforms, not 12 ft. pickups

1шт.

18

633144R1

STRAP, jackshaft shield lower

2шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

5/16 X 3/4 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

4шт.

19

633136R91

SUPPORT W/BRACKET, jackshaft drive bearing bracket, parts necessary to repostion pickup attachment belt type on platforms for use in grass crops, 12 ft. platforms, not 12 ft. pickups

1шт.

20

16964R1

FITTING

1/4 90 deg elbow lubrication

1шт.

21

634095R11

SHIELD W/ROD ASSY, wind deflector LH, for use with belt type pickup attachment, grass

1шт.

21

634096R11

SHIELD W/ROD ASSY, wind deflector RH, for use with belt type pickup attachment, grass

1шт.

5/16 X 3/4 CRG BOLT W/NUT

12шт.

5/16 LOCK WASHER

12шт.

22

653932R91

HOLDER, finger, gauge deflector, for use with gauge wheels and belt type pickup with runners, not 12 ft. pickup

1шт.

23

634092R1

FINGER, gauge deflector, for use with gauge wheels and belt type pickup with runners, not 12 ft. pickup

13шт.

1/4 X 1-1/4 CRG BOLT W/NUT

13шт.

1/4 LOCK WASHER

13шт.

24

634081R91

SUPPORT ASSY, finger holder RH, gauge deflector, for use with gauge wheels and belt type pickup with runners, not 12 ft. pickup

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8 X 1 SQ-HD CUP-PT SET SCREW

1шт.

3/8 LOCK WASHER

2шт.

25

634090R1

ARM, finger holder LH, gauge deflector, for use with gauge wheels and belt type pickup with runners, not 12 ft. pickup

1шт.

25

634091R1

ARM, finger holder RH, gauge deflector, for use with gauge wheels and belt type pickup with runners, not 12 ft. pickup

1шт.

26

634084R91

BRACKET W/GUSSET,LH arm, gauge deflector, for use with gauge wheels and belt type pickup with runners, not 12 ft. pickup

1шт.

26

634085R91

BRACKET W/GUSSET, RH arm, gauge deflector, for use with gauge wheels and belt type pickup with runners, not 12 ft. pickup

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

4шт.

1/2 X 1 CRG BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

1/2 LOCK WASHER

4шт.

27

634482R1

STIFFENER, anchor, gauge deflector, for use with belt type pickup with runners, not 12 ft. pickup

2шт.

3/8 X 1-1/4 CRG BOLT W/NUT

8шт.

5/16 X 1-1/4 MACH BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

3/8 LOCK WASHER

8шт.

28

653930R91

SUPPORT ASSY, finger holder LH, gauge deflector, for use with gauge wheels and belt type pickup with runners, not 12 ft. pickup

1шт.

3/8 X 1 CRG BOLT W/NUT

2шт.

485-13816

SET SCREW,Sq Hd, 3/8"-16 x 1"

3/8 X 1 SQ-HD CUP-PT SET SCREW

1шт.

3/8 LOCK WASHER

2шт.
