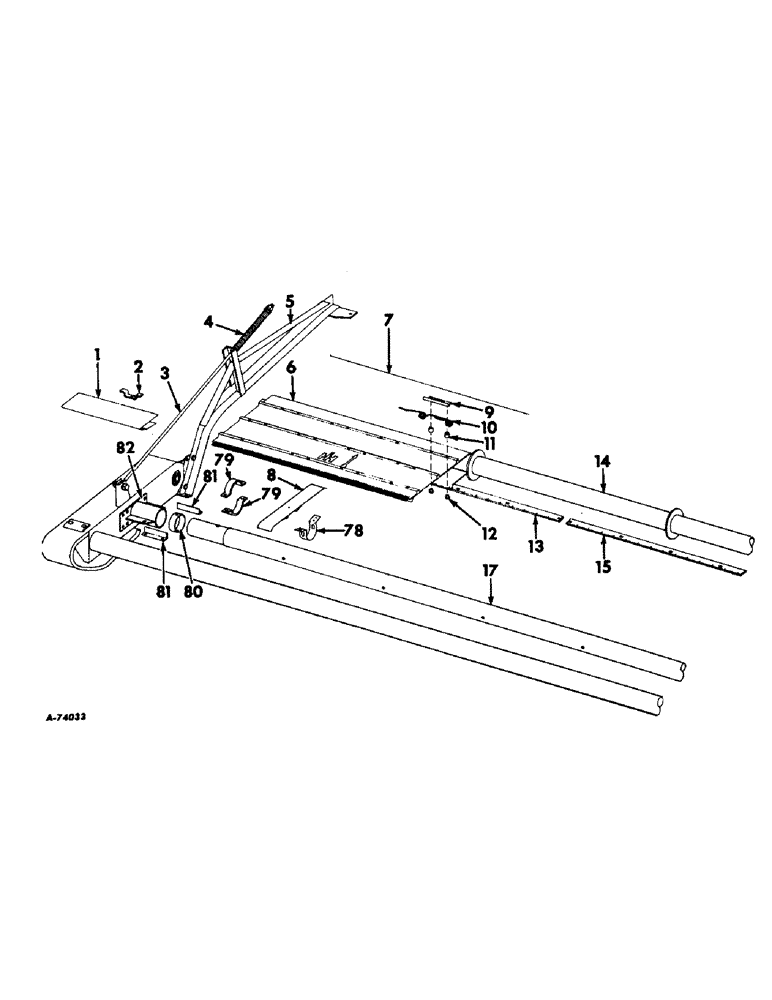

Запчасти Case IH 403 (282) - WINDROW PICKUP, BELT TYPE, 10-FT (58) - ATTACHMENTS/HEADERS
№
Артикул
Название
Примечание
Количество
2
23658K
CLIP, knife guard shield, 12-ft, 13-ft, 14-ft, 16-ft and 18-ft platforms
1шт.
33
CHAIN, lower roll drive roll, 5/8 pitch standard, Use83 links from a 10-ft roll marked 1791D, 1 roller link 1309D, 2 connecting links 1310D and 1 offset connecting link 1360D
1шт.
50
629033R91
BRACKET W/STRAP, jackshaft drive inner bearing, chain drive, serial no. 9956 and below
1шт.
51
565336R91
BEARING
SPROCKET ASSY, jackshaft drive chain idler, optional for sprocket assy 565511R91, chain drive
1шт.
51
563511R91
SPROCKET ASSY, jackshaft drive chain idler, optional for sprocket assy 565336R91, chain drive
1шт.
52
CHAIN, pickup roller drive, Use 75 links from a 10-ft roll marked 569088R91, 2 roller links 457112R91, 1 offset connecting links 457113R91, chain drive, serial no. 9956 and below
1шт.
52
CHAIN ASSY, pickup drive, Order 119 links of 5/8 in. pitch standard roller chain from a 10 ft roll marked 1791D four connecting links 1310D four offset connecting links 1315D and three roller links 1309D, serial no. 9957 and above
1шт.
53
109461
LUBE NIPPLE,1/8"-27 x .66 lg
NIPPLE, LUBE, , Chain drive 1/8"-27 x .66 lg
1шт.
55
568029R91
BEARING ASSY,25.4mm ID x 35mm OD x 25.4mm W
BEARING, cylindrical roller unit, chain drive
2шт.
57
587874R1
STIFFENER, divider sheet, chain drive, serial no. 13062 and below
1шт.
60
155087C1
BRACKET, drive sprocket outer, chain drive, serial no. 9957 and above
1шт.
61
CHAIN, auger drive roller extension, Use 5 links of 3/4 in. pitch roller chain, standard, from 10-ft roll marked 1793D, 1 connecting link 1317D, 12-ft and 13-ft platform, chain drive
1шт.
62
561479R1
BEARING
RACE, cylindrical roller unit, chain drive, serial no. 9956 and below
2шт.
63
631596R91
SPROCKET W/HUB, pickup drive, 12-ft and 13-ft platforms, chain drive, serial no. 9956 and below
1шт.
64
631601R1
SPROCKET, pickup drive shaft driver, 27-T, regular, chain drive, serial no. 9956 and below
1шт.
64
155084C1
SPROCKET, pickup drive shaft driver, 22-T regular, serial no. 9957 and above
1шт.
64
634080R1
SPROCKET, pickup drive shaft driver, 24-T, regular, chain drive, serial no. 9956 and below
1шт.
64
155085C1
SPROCKET, pickup drive shaft driver, 25-T regular, serial no. 9957 and above
1шт.
64
631599R1
SPROCKET, drive, 30-T, special fast speed, chain drive, serial no. 9956 and below
1шт.
64
155104C1
SPROCKET, pickup drive shaft driver, special fast speed, chain drive, serial no. 9957 and above
1шт.
64
631600R1
SPROCKET, driver, 22-T, special slow speed, chain drive, serial no. 9956 and below
1шт.
64
155105C1
SPROCKET, pickup drive shaft driver, 20-T, special slow speed, serial no. 9957 and above
1шт.
66
584283R91
SHIELD W/CLIP, slip clutch, chain drive, serial no. 16129 and below
1шт.
67
565336R91
BEARING
SPROCKET ASSY, jackshaft drive chain tightener, optional for sprocket assy 565511R91, chain drive
1шт.
67
565511R91
BEARING
SPROCKET ASSY, jackshaft drive chain tightener, optional for sprocket assy 565336R91, chain drive, serial no. 9956 and below
1шт.
67
SPROCKET
ASSY, jackshaft drive chain tightener, serial no. 9957 and above
1шт.
68
155099C91
SPROCKET ASSY, pickup driven 54-T, grass, chain drive, serial no. 9957 and above
1шт.
80
935389R1
COLLAR, center support, key to units, A- wind deflector, for use with guage wheels
2шт.
1/8 X 3/4 COTTER PIN, key to units, A- wind deflector, for use with guage wheels
1шт.
3/8 X 3-3/8 DLD PIN, key to units, A- wind deflector, for use with guage wheels
1шт.
81
935387R1
ANGLE, cradle support, key to units, A- wind deflector, for use with guage wheels
2шт.
82
935383R91
SUPPORT W/SPACER, center stiffener, key to units, A- wind deflector, for use with guage wheels
1шт.
3/8 X 3/4 CRG BOLT W/NUT, key to units, A- wind deflector, for use with guage wheels
2шт.
7/16 X 1 CRG BOLT W/NUT, key to units, A- wind deflector, for use with guage wheels
2шт.
83
935402R1
GUIDE, balance spring rod, key to units, A- wind deflector, for use with guage wheels
2шт.
1/4 X 1 MACH BOLT W/NUT, key to units, A- wind deflector, for use with guage wheels
4шт.
84
935401R1
STRAP, pivot bracket, key to units, A- wind deflector, for use with guage wheels
2шт.
85
155106C1
BRACE, main drive sprocket, chain drive, serial no. 9957 to 16129, key to units, A- wind deflector, for use with guage wheels
1шт.
1/2 X 1-1/4 MACH BOLT W/NUT, key to units, A- wind deflector, for use with guage wheels
1шт.
85
161466C1
BRACE, main drive sprocket, serial no. 16130 and above, key to units, A- wind deflector, for use with guage wheels
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd, key to units, A- wind deflector, for use with guage wheels
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock, key to units, A- wind deflector, for use with guage wheels
2шт.
86
155109C1
BRACKET, auger drive shield, chain drive, serial no. 9957 and above, key to units, A- wind deflector, for use with guage wheels
2шт.
87
155282C1
WASHER, drive shaft driver sprocket, chain drive, serial no. 9957 and above, key to units, A- wind deflector, for use with guage wheels
1шт.
88
155092C91
BRACKET ASSY, jackshaft drive inner, crain, chain drive, serial no. 9957 and above, key to units, A- wind deflector, for use with guage wheels
1шт.
5/16 X 1-1/4 C-Z CRG BOLT W/NUT, key to units, A- wind deflector, for use with guage wheels
1шт.
5/16 X 3/4 C-Z HEX-HD MACH W/NUT, key to units, A- wind deflector, for use with guage wheels
1шт.
3/8 X 1-1/4 C-Z CRG BOLT W/NUT, key to units, A- wind deflector, for use with guage wheels
1шт.
1/2 X 1-1/4 C-Z CRG BOLT W/NUT, key to units, A- wind deflector, for use with guage wheels
2шт.
5/16 C-Z LOCK WASHER, key to units, A- wind deflector, for use with guage wheels
3шт.
3/8 C-Z LOCK WASHER, key to units, A- wind deflector, for use with guage wheels
1шт.
1/2 C-Z LOCK WASHER, key to units, A- wind deflector, for use with guage wheels
2шт.
11/32 X 3/4 X 16 GA C-Z, key to units, A- wind deflector, for use with guage wheels
1шт.
89
155101C91
BRACKET ASSY, jackshaft drive brg, grass, chain drive, serial no. 9957 and above, key to units, A- wind deflector, for use with guage wheels
1шт.
5/16 X 3/4 C-Z CRG BOLT W/NUT, key to units, A- wind deflector, for use with guage wheels
3шт.
3/8 X 3/4 C-Z CRG BOLT W/NUT, key to units, A- wind deflector, for use with guage wheels
3шт.
5/16 C-Z LOCK WASHER, key to units, A- wind deflector, for use with guage wheels
3шт.
3/8 C-Z LOCK WASHER, key to units, A- wind deflector, for use with guage wheels
3шт.
90
P2066
SPACER, auger drive shield, chain drive, serial no. 9957 and above, key to units, A- wind deflector, for use with guage wheels
1шт.
91
155709C1
ANGLE, chain tightener block, grain, key to units, A- wind deflector, for use with guage wheels
1шт.
18494R1
BOLT,Hex, 3/8" - 16 x 1", Gr 2
3/8 X 1 C-Z HEX-HD MACH BOLT, key to units, A- wind deflector, for use with guage wheels
1шт.
120377
NUT,3/8" - 16, Gr 5
Key to units, A- wind deflector, for use with gauge wheels 3/8"-16, G5
1шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, , Key to units, a- wind deflector, for use with guage wheels 3/8"
1шт.
92
936878R1
BLOCK
chain tightener, grain, key to units, A- wind deflector, for use with guage wheels
1шт.
17140R1
CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd
1/2 X 1-1/4 C-Z SQ-NK CRG BOLT, key to units, A- wind deflector, for use with guage wheels
1шт.
120387
WASHER,3/8" x 3/4" x .060"
1/2 C-Z HEX. NUT, key to units, A- wind deflector, for use with guage wheels
1шт.
120384
WASHER,1/2"
LOCK, , Key to units, A - wind deflector, for use with guage wheels 1/2"
1шт.
93
161467C1
SHIELD, slip clutch, chain drive, key to units, A- wind deflector, for use with guage wheels
1шт.
94
161461C91
SHIELD ASSY, main drive front, key to units, A- wind deflector, for use with guage wheels
1шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd mach, key to units, A- wind deflector, for use with guage wheels
1шт.
470-1258
SCREW,Slotted Pan Hd, 1/4"-20 x 1/2"
1/4 x 1/2 C-Z slt-pan-hd mach, key to units, A- wind deflector, for use with guage wheels
4шт.
120376
NUT,5/16"-18, G5
Key to units, A- wind deflector, for use with gauge wheels 5/16"-18, G5
1шт.
120375
NUT,Hex, 1/4" - 20, Gr 5
Key to units, A- wind deflector, for use with gauge wheels 1/4"-20, G5
4шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, , Key to units, A- wind deflector, for use with guage wheels 5/16"
1шт.
492-11025
LOCK WASHER,1/4"
WASHER, LOCK, , Key to units, A- wind deflector, for use with guage wheels 1/4"
4шт.
95
161465C1
BRACKET, main drive shield front, key to units, A- wind deflector, for use with guage wheels
1шт.
16897R1
CARRIAGE BOLT,Short Nk, 5/16" - 18 x 3/4", Gr 2, Full Thd
BOLT, 5/16 x 3/4 C-Z sq-nk crg, key to units, A- wind deflector, for use with guage wheels
2шт.
17351R1
CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2
BOLT, 3/8 x 1 C-Z sq-nk crg, key to units, A- wind deflector, for use with guage wheels
1шт.
120376
NUT,5/16"-18, G5
Key to units, A- wind deflector, for use with gauge wheels 5/16"-18, G5
2шт.
120377
NUT,3/8" - 16, Gr 5
Key to units, A- wind deflector, for use with gauge wheels 3/8"-16, G5
1шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, , Key to units, A- wind deflector, for use with guage wheels 5/16"
2шт.
120382
LOCK WASHER,Helical Spring, 3/8"
WASHER, LOCK, , Key to units, a- wind deflector, for use with guage wheels 3/8"
1шт.
96
163591C1
BRACE, pickup drive shield, key to units, A- wind deflector, for use with guage wheels
1шт.
135270
SERRATED SCREW,5/16" - 18 x 3/4"
5/16 x 3/4 C-Z slt-truss-hd, key to units, A- wind deflector, for use with guage wheels
2шт.
18764R1
HARDWARE,Hex, 5/16"-18 x 3/4", G2
BOLT, 5/16 x 3/4 C-Z hex-hd mach, key to units, A- wind deflector, for use with guage wheels
2шт.
938017R1
FLANGE NUT,Flg, USR, 5/16"-18
5/16 C-Z flange lock, key to units, A- wind deflector, for use with guage wheels
2шт.
120376
NUT,5/16"-18, G5
Key to units, A- wind deflector, for use with gauge wheels 5/16"-18, G5
2шт.
80681
LOCK WASHER,5/16"
WASHER, LOCK, , Key to units, A- wind deflector, for use with guage wheels 5/16"
2шт.
