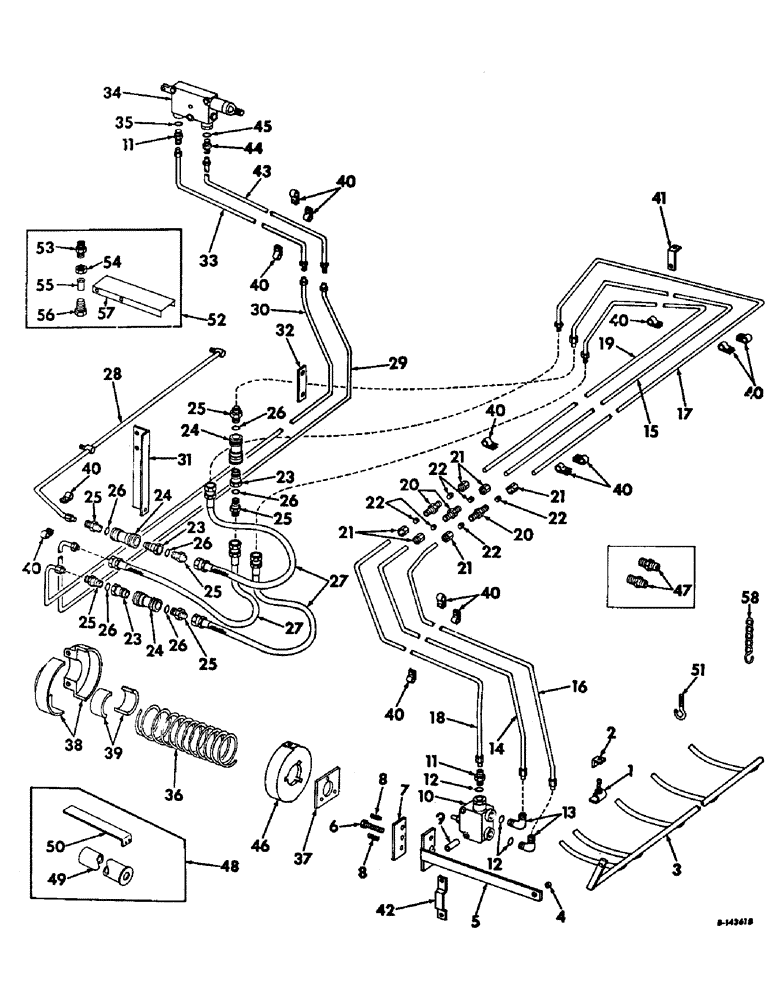

Запчасти Case IH 403 (216) - PLATFORM AUTOMATIC CONTROL ATTACHMENT WITHOUT LOCKOUT VALVE (58) - ATTACHMENTS/HEADERS

1

151204C91

BRACKET ASSY, finger retainer

6шт.

120377

NUT,3/8" - 16, Gr 5

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

Q1597

WASHER

13/32 X 3/4 X 16 GA WASHER

6шт.

2

589138R1

ANGLE, finger retainer bracket

6шт.

3

159784C91

FINGER

ASSY, auto control

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 X 1-1/4 C-Z MACH BOLT

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

Q1597

WASHER

13/32 X 3/4 X 16 GA WASHER

1шт.

4

556587R1

SPACER

valve control bar

1шт.

5

936751R1

BAR ASSY, valve control

1шт.

18770R1

BOLT,Hex, 5/16"-18 x 2 3/4", G2

5/16 X 2-3/4 C-Z MACH BOLT

2шт.

124824

NUT,Hex, 5/16" - 18

JAM .313 UNC GR5 YZD

4шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

6

159711C1

BOLT, bar & spring retainer

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

7

936759R1

BAR, spring retainer

1шт.

8

15258E

SPRING

2шт.

9

23323H

SPACER,1/4" Pipe x 1/2"

platform auto control valve

2шт.

10

936898R91

VALVE ASSY, flow control, For components see list of parts under details of flow control valve, Serial no., Serial Range: 7224-9956

1шт.

10

155199C91

VALVE

ASSY, flow control, For components see list of parts under details of flow control valve, Not 18-foot platform, Serial no. 9957 and above

1шт.

11

574478R1

UNION

CONNECTOR, 3/4-16 37 deg hyd flared tube

2шт.

12

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3шт.

13

NOT USED

1шт.

14

936899R11

TUBE ASSY, flow control valve to lower return, Serial no. 9956 and below

1шт.

14

936899R11

TUBE ASSY, flow control valve to lower pressure, Serial no. 9957 and above

1шт.

15

936900R11

TUBE ASSY, flow control valve to upper return, Serial no. 9956 and below

1шт.

15

155196C91

TUBE ASSY, flow control valve to upper pressure, Serial no. 9957 and above

1шт.

16

936901R11

TUBE ASSY, flow control valve to platform lift cylinder lower

1шт.

17

936902R11

TUBE ASSY, flow control valve to platform lift cylinder upper

1шт.

18

936907R11

TUBE ASSY, flow control valve to lower pressure, Serial no. 9956 and below

1шт.

18

936907R11

TUBE ASSY, flow control valve to lower return, Serial no. 9957 and above

1шт.

19

936908R11

TUBE ASSY, flow control valve to upper pressure, Serial no. 9956 and below

1шт.

19

155197C91

TUBE ASSY, flow control valve to upper return, Serial no. 9957 and above

1шт.

20

9409301

UNION, 7/8-14 hyd flare

3шт.

21

9409525

NUT, 7/8-14 hyd flare

6шт.

22

272986

HUB

FERRULE, 5/8

6шт.

23

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self sealing male

3шт.

24

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, self sealing female

3шт.

25

481352R1

HYD CONNECTOR,3/4"-16, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/16-14 37 deg, 3 used serial no. 9956 and below

6шт.

25

9410204

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, 7/8-14 37 deg hyd flared, 3 used serial no. 9957 and above

1шт.

26

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

6шт.

27

574230R91

HOSE ASSY.

HOSE ASSY, self sealing connector, Serial no. 9956 and below

3шт.

27

155255C91

HOSE

ASSY, self sealing connector, Serial no. 9957 and above

2шт.

28

936903R91

TUBE ASSY, platform lift cylinder

1шт.

29

936906R11

TUBE ASSY, main axle upper

1шт.

30

936905R11

TUBE ASSY, main axle lower

1шт.

31

936909R1

ANGLE, main axle pipe clip support

1шт.

32

936911R1

STRAP, main axle pipe clip support

2шт.

33

936904R11

TUBE ASSY, control valve to main axle

1шт.

34

936897R91

VALVE ASSY, lift, For components see list of parts under lift valve, Serial no. 9956 and below

1шт.

34

159376C91

VALVE

ASSY, control, For components see list of parts under lift valve, For rice and windrow special serial no. 9957 and above, For grain and bean special serial no., Serial Range: 9957-13062

1шт.

35

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

36

159710C1

SPRING

2шт.

37

NOT USED

1шт.

38

936779R2

FLANGE, platform lift helper spring rear

4шт.

18476R1

BOLT,Hex, 1/2"-13 x 2 1/2", G2

1/2 X 2-1/2 C-Z MACH BOLT

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

1/4 X 1/2 ROLL PIN

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

39

154675C1

BAR, platform lift helper spring rear filler, Serial no. 9957 and above

4шт.

40

567895R2

CLIP, hyd pipe

16шт.

18674R1

BOLT,Short NK, 5/16"-18 x 1 1/2", G2

5/16 X 1-1/2 C-Z CRG BOLT

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

41

632931R1

ANGLE, hyd pipe clip holder

2шт.

18656R1

BOLT,Hex, 1/4" - 20 x 1 1/4", Gr 2

1/4 X 1-1/4 C-Z MACH BOLT

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

8шт.

42

936758R1

STRAP, automatic control valve control bar retainer

1шт.

20344R1

BOLT

5/16 X 3-1/4 C-Z MACH BOLT

2шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

43

PIPE ASSY, Installed on basic machine as platform lift cylinder upper pipe and being relocated it now becomes axle lift return pipe

1шт.

44

CONNECTOR, Use same as basic machine

1шт.

45

O-RING, Use same as basic machine

1шт.

46

936778R2

FLANGE

platform lift helper spring front

2шт.

576517R1

LOCK PIN,1/4" x 1 1/2", Slotted

Pin, 1/4" x 1 1/2", Slotted

4шт.

51107V

WASHER, 1-17/32 X 3 X 7 GA

2шт.

47

574478R1

UNION

CONNECTOR, 3/4 37 deg

2шт.

48

PLATFORM AUTOMATIC CONTROL LIFT CYLINDER HELPER SPRING FRONT SPACER ATT., special

1шт.

49

154676C91

TUBE ASSY, lift cylinder front spacer, For combines w/cylinder having 1-7/8 O.D. x 17 in. or 2 O.D. x 17 in. stroke

1шт.

49

154740C91

TUBE ASSY, lift cylinder front spacer, For combines w/cylinder having 2-1/4 O.D. x 17 in. stroke

1шт.

50

154703C1

SUPPORT, lift cylinder helper spring guide, For combines w/cylinder having 2-1/4 O.D. x 5-1/2 in. stroke

1шт.

51

159780C1

EYEBOLT,3/8" - 16 x 2.20", Full Thd

BOLT, bar and spring retainer

10шт.

120377

NUT,3/8" - 16, Gr 5

10шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

10шт.

52

INCLUDES REF NOS. 53 THRU 57 FOR USE W/COMBINES EQUIPPED W/FEEDER DUST FAN ATT.

1шт.

53

9409301

UNION, 7/8-14 hyd flareless tube

1шт.

54

9409525

NUT, 7/8-14 hyd flareless tube

1шт.

55

272986

HUB

FERRULE, 5/8 hyd flareless tube

1шт.

56

567504R1

SPUD

2шт.

57

159798C1

CHANNEL, hyd tube

1шт.

58

167570C1

CHAIN,203.2mm L

finger stop

1шт.

18655R1

BOLT,Hex, 1/4"-20 x 1", G2

1/4 x 1 znd hex-hd mach

1шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

1шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

21870R1

WASHER

17/64 x 3/4 x 16 ga C-Z

2шт.
