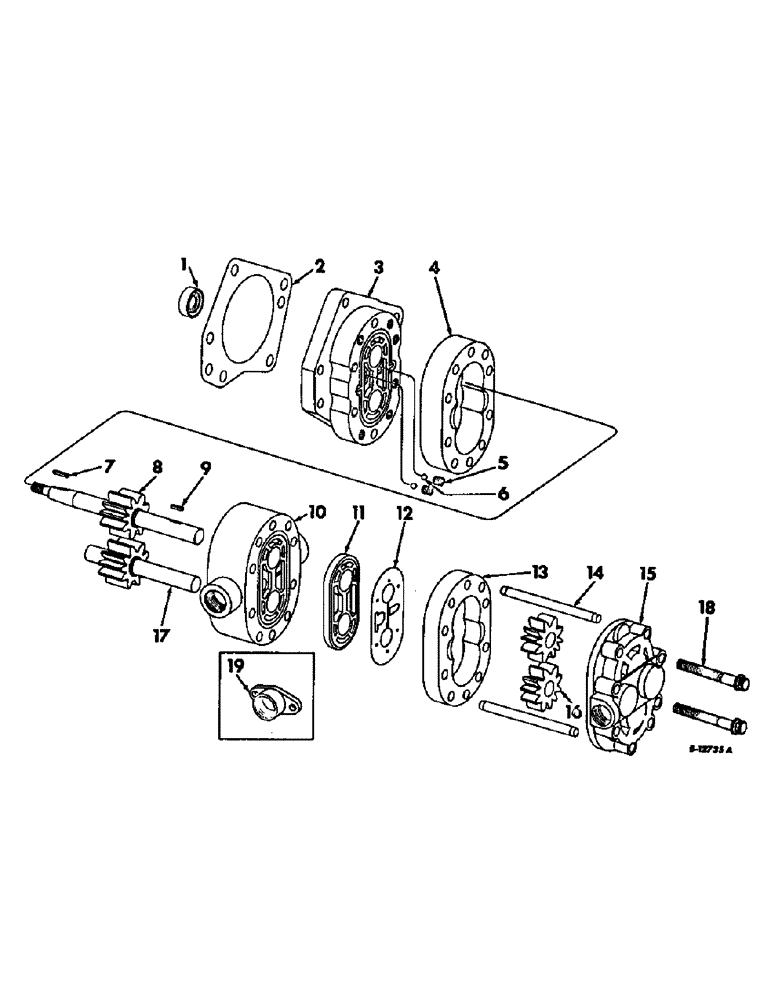

Запчасти Case IH 403 (215) - HYDRAULIC REEL DRIVE CHAIN REDUCTION PUMP (58) - ATTACHMENTS/HEADERS

632862R91

PUMP ASSY, hydraulic double, Includes ref nos. 1 thru 18, Serial no. 9956 and below

1шт.

154680C92

PUMP

ASSY, hyd, Includes ref nos. 1 thru 19, Serial no. 9957 and above

1шт.

5/16 X 4-3/4 CAP SCREW

4шт.

5/16 X 5 CAP SCREW

2шт.

632878R1

5/16 X 5 CAP SCREW

2шт.

159349C91

KIT, major seal repair, Consists of

1шт.

371523R1

SPRING

2шт.

383533R1

DIAPHRAGM SEAL

1шт.

371551R1

DIAPHRAGM

1шт.

371553R1

BACK-UP GASKET

2шт.

381155R1

PROTECTOR GASKET

2шт.

THRUST PLATE

2шт.

636628R91

SEAL

SHAFT SEAL

1шт.

GASKET, flange

1шт.

632866R1

DIAPHRAGM SEAL

1шт.

17007R1

BALL

STEEL BALL, 7/32 D.

2шт.

632868R1

DIAPHRAGM

1шт.

632870R1

KEY

1шт.

1

632855R1

SEAL, shaft, For 632862R91 pump

1шт.

1

636628R91

SEAL

shaft, For 154680C91 pump

1шт.

2

632851R1

GASKET

flange

1шт.

3

159373C91

PLATE ASSY, front, For 632862R91 pump

1шт.

4

632853R1

BODY

1шт.

5

371523R1

SPRING

check

2шт.

6

17007R1

BALL

7/32 dia steel

2шт.

7

628965R1

KEY

5/32 x 5/32 x 5/8 straight

1шт.

8

632872R91

GEAR ASSY, drive

1шт.

9

632870R1

KEY, 3/16 x 1/8 x 7/16

1шт.

10

632869R91

PLATE ASSY, adapter, For 632862R91 pump

1шт.

11

632866R1

SEAL, diaphragm

1шт.

12

632868R1

DIAPHRAGM

1шт.

13

632867R1

BODY

1шт.

14

20228R1

PIN, 5/16 x 3-3/4 dowel, For 154680C91 pump

2шт.

14

632854R1

DOWEL

PIN, 5/16 x 3-1/4 dowel, For 632862R91 pump

2шт.

15

632864R91

PLATE ASSY, back

1шт.

16

632863R1

GEAR

2шт.

17

632871R91

GEAR ASSY, idler

1шт.

18

632878R1

SCREW, 5/16 x 5 cap

2шт.

19

154681C1

ADAPTER, port, For 154680C91 pump

1шт.
