Запчасти Case IH 403 (203) - HYDRAULIC REEL LIFT, FOR HYDROSTATIC GROUND DRIVE (58) - ATTACHMENTS/HEADERS

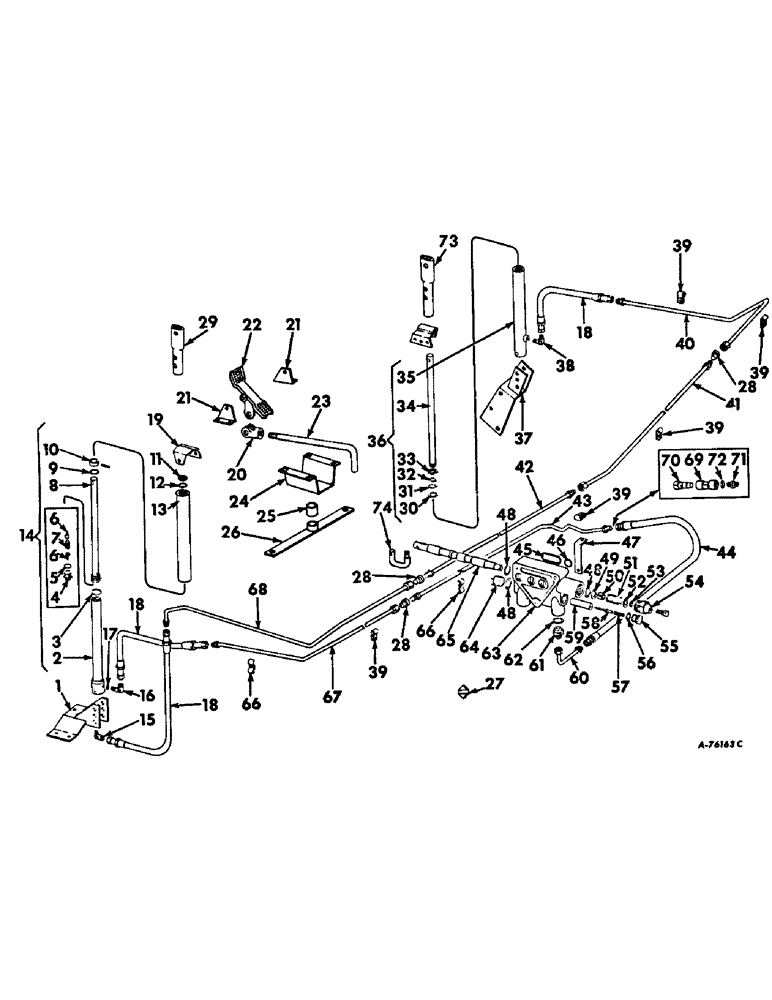

Схема запчастей Case IH 403 - (203) - HYDRAULIC REEL LIFT, FOR HYDROSTATIC GROUND DRIVE (58) - ATTACHMENTS/HEADERS
34
12
11
3
10
60
69
48
22
2
41
18
29
70
6
66
1
61
47
74
48
39
39
25
73
43
54
56
64
13
58
40
39
39
26
20
67
36
68
21
32
48
18
66
21
33
4
52
65
45
28
6
62
30
57
49
23
72
35
44
7
17
18
28
51
37
31
27
53
19
15
59
50
38
42
71
55
39
8
14
46
24
16
28
5
63
9

Артикул

Название

Примечание

Количество

1

150367C91

BRACKET ASSY, cylinder lift support LH

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

Q3549

PIN, 1/2 x 2-13/16 std-hd dld

1шт.

2

632463R91

HEAD ASSY

1шт.

3

298384R1

OIL SEAL

O-RING, 1-11/16 x 1-7/8 x 3/32

1шт.

4

632458R1

PLUG, seat

1шт.

6

632460R91

POPPET ASSY

1шт.

7

632459R1

VALVE SPRING

SPRING

1шт.

8

632464R91

ROD ASSY, piston

1шт.

9

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1-1/4 x 1-1/2 x 1/8

1шт.

10

632461R1

COLLAR

1шт.

17045R1

LOCK PIN,5/32" x 1 3/8", Slotted

PIN, 5/32" x 1 3/8", Slotted

1шт.

11

564808R91

WIPER

SEAL, 1-1/8 shaft

1шт.

12

356005R1

O-RING,1.109" ID x 0.139" Width

1-1/8 x 1-3/8 x 1/8

1шт.

13

632462R91

BEARING ASSY

1шт.

14

632457R91

CYLINDER

ASSY, reel master, Includes ref nos. 2 thru 13

1шт.

159836C91

KIT

reel lift cylinder repair, Consists of

1шт.

632460R91

POPPET ASSY

2шт.

632459R1

VALVE SPRING

SPRING

1шт.

564808R91

WIPER

OIL SEAL

1шт.

356005R1

O-RING,1.109" ID x 0.139" Width

1шт.

252483R1

O-RING,-218, 70 Duro, 1.234" ID x .139" Thk

1шт.

298384R1

OIL SEAL

O-RING

1шт.

15

585694R1

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

master cyl

1шт.

16

9410976

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, O-Ring

master cyl 90º, 9/16"-18, 37º x 9/16"-18, O-Ring

1шт.

17

364839R1

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

18

632455R91

HOSE

ASSY, cyl to lower tubing

3шт.

19

634112R1

SUPPORT, reel lift cyl upper

2шт.

17452R1

BOLT,Hex, 1/2"-13 x 1 1/4", G2

1/2 x 1-1/4 C-Z hex-hd

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

654415R1

PIN,1/2" x 3 3/4"

1/2 x 3-3/4 hex. dld

2шт.

20

104038

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, 3/8 in.

1шт.

103496

CLEVIS PIN,3/8" x 1.060"

PIN, 3/8 x 1-3/32 rod end

1шт.

103373

COTTER PIN,3/32" x 3/4"

Pin, Split (Cotter), 3/32" x 3/4"

1шт.

103396

PIN, SPLIT (COTTER),5/32" x 1"

5/32" x 1"

1шт.

21

574471R1

BRACKET, control petal

2шт.

18764R1

HARDWARE,Hex, 5/16"-18 x 3/4", G2

BOLT, 5/16 x 3/4 C-Z hex-hd

4шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

U5363

PIN, 7/16 x 2-7/8 std-hd dld

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

22

631486R1

PEDAL, lift control

1шт.

23

938295R1

ROD, front control

1шт.

24

627429R1

SUPPORT, control pivot strap

1шт.

17351R1

CARRIAGE BOLT,Short Sq Nk, 3/8" - 16 x 1", Gr 2

BOLT, 3/8 x 1 C-Z sq-nk crg

4шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

Q1505

WASHER

13/32 x 1 x 16 ga

2шт.

25

574464R1

BUSHING, control pivot strap

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

510579R1

WASHER

13/32 x 1-1/4 x 16 ga

1шт.

26

627425R91

STRAP ASSY, control pivot

1шт.

18781R1

BOLT,Hex, 3/8"-16 x 2", G2

3/8 x 2 C-Z hex-hd

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

510579R1

WASHER

13/32 x 1-1/4 x 16 ga

1шт.

27

164787C1

PLATE, orifice

1шт.

28

631162R1

LUBE NIPPLE

FITTING, crossover pipe stud

3шт.

29

935599R1

COUPLING, master cyl extension

1шт.

465839R1

PIN, 1/2 x 2-5/16 std-hd dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

30

SNAP RING, Order repair kit 609986R91

1шт.

31

O-RING, Order repair kit 609986R91

1шт.

32

WASHER, back-up, Order repair kit 609986R91

1шт.

33

SEAL ASSY, Order repair kit 609986R91

1шт.

34

609985R1

ROD

piston

1шт.

35

609984R91

BARREL ASSY

1шт.

36

610899R92

CYLINDER BLOCK

CYLINDER ASSY, slave

1шт.

37

634115R91

BRACKET ASSY, lift cylinder right

1шт.

20485R1

BOLT,Short NK, 7/16"-14 x 3/4", G5. Full Thd

7/16 x 3/4 C-Z hex-hd

1шт.

18707R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT, 1/2 x 1 C-Z sq-nk crg

1шт.

17140R1

CARRIAGE BOLT,Short Nk, 1/2" - 13 x 1 1/4", Gr 2, Full Thd

BOLT, 1/2 x 1-1/4 C-Z sq-nk crg

1шт.

271501

SOCKET

NUT, 7/16 C-Z hex.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

Q5035

WASHER

17/32 x 1 x 16 ga

9шт.

LC175

PIN

1/2 x 2-1/2 std-hd dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

38

9402864

ELBOW,90 Degree, 9/16"-18, 37 Degree x 1/4"-18, NPTF

slave cylinder

1шт.

39

589980R2

CLIP

5шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

5шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

5шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

40

632022R11

PIPE ASSY, lower right crossover

1шт.

41

632023R22

PIPE ASSY, upper right crossover 0.375" OD, 111, 1.78" Length

1шт.

42

632456R22

PIPE ASSY, upper left crossover 0.375" OD, 98.75" Length

1шт.

43

935542R11

PIPE ASSY, upper pressure

1шт.

44

632454R91

HYDRAULIC HOSE,0.31" ID x 30.00", SAE 100R1 Class B

HOSE ASSY, valve to upper tube

1шт.

45

587594R1

O-RING

1-1/2 x 1-11/16 x 3/32

1шт.

46

587579R1

O-RING

3/4 x 7/8 x 1/16

10шт.

47

628562R1

SUPPORT, pipe clip

1шт.

48

252707R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3/4 x 15/16 x 3/32

1шт.

49

11002VA

WASHER

1шт.

50

588345R1

SLEEVE

spool

1шт.

51

588353R1

SPRING

spool centering

1шт.

52

557268R1

WASHER

1шт.

53

572998R1

SNAP RING

1шт.

5

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk, For 5/16 OD tubing

1шт.

54

588343R91

CAP ASSY

1шт.

369384R1

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.

181336

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

114493

JAM NUT,Jam, 5/16"-24, G5

1шт.

55

588347R1

PLUG

1шт.

56

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1/2 x 11/16 x 3/32

1шт.

57

574789R1

SPRING

lockout

1шт.

58

588351R91

VALVE

POPPET ASSY

1шт.

59

935586R1

PLUNGER, lockout

1шт.

60

632452R11

PIPE ASSY, valve to hose 0.375" OD, 5.81, 2.03" Length

1шт.

61

587639R1

HYD CONNECTOR,9/16"-18, 37 Degree x 3/4"-18, O-Ring

CONNECTOR, valve

1шт.

62

570828R1

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

.644 x .818 x .087

1шт.

63

935585R92

VALVE ASSY, three way, Includes ref. nos. 48 thru 59, 62, 64 and 65

1шт.

20484R1

BOLT,Hex, 5/16" - 18 x 6 1/2", Gr 5

SCREW, 5/16 x 6-1/2 C-Z cap

3шт.

159644C91

KIT

seal repair, Consists of

1шт.

252739R1

O-RING,0.103" Thk x 0.487" ID, -112, Cl 5, 75 Duro

1шт.

310925R1

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

3шт.

588351R1

POPPET

1шт.

64

588342R1

PLUG

hex.

1шт.

65

SPOOL, single action, Order valve assy 935585R91

1шт.

66

561529R2

CLIP

2шт.

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

67

632021R11

PIPE ASSY, lower pressure

1шт.

68

632453R11

PIPE ASSY, lower left crossover

1шт.

69

395150R91

COUPLING, QUICK, FEM

COUPLING ASSY, self-sealing female

1шт.

70

395149R1

QUICK MALE COUPLING

COUPLING ASSY, self-sealing male

1шт.

71

935433R1

HYD CONNECTOR,9/16"-18, 37 Degree x 7/8"-14, O-Ring

CONNECTOR, self-sealing coupling

2шт.

72

364885R1

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

For 5/8 OD tubing

4шт.

73

935598R1

COUPLING, slave cylinder extension

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

465839R1

PIN, 1/2 x 2-5/16 std-hd dld

1шт.

74

633673R1

ROD, rear control

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

Выбрано товаров: 138
