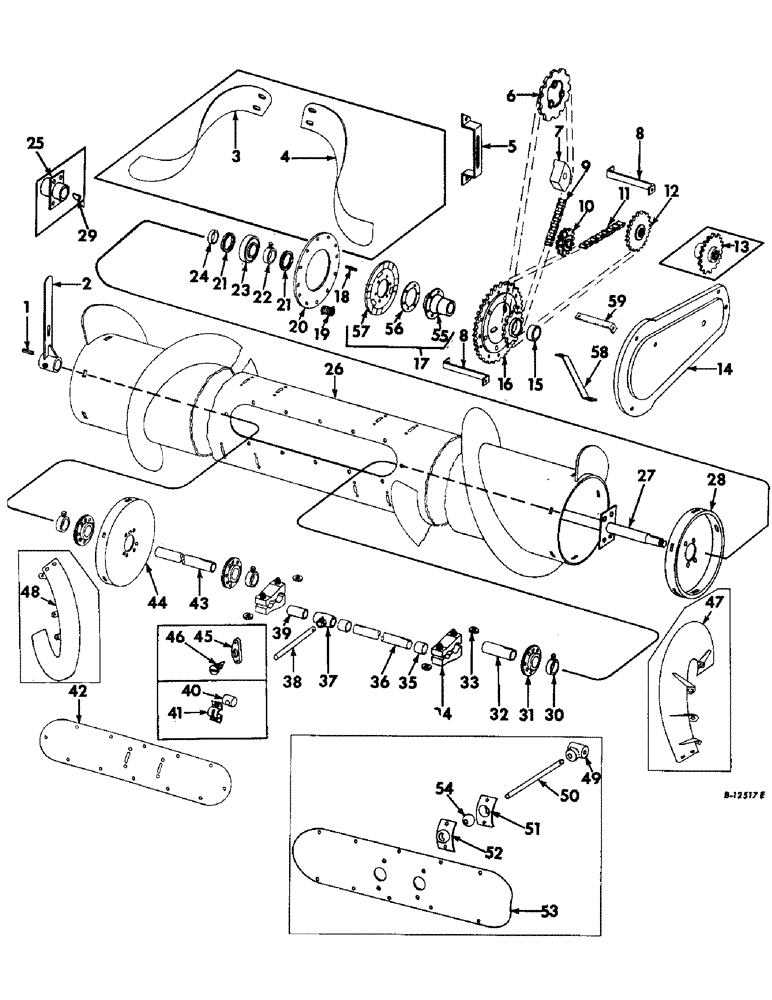

Запчасти Case IH 403 (023) - PLATFORM AUGER DRIVE, PLATFORM AUGER EXTENSION ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

Q98

KEY, straight, 1/4 x 1/4 x 1-7/8 1/4" Sq x 1 7/8", Par

1шт.

2

155200C91

LEVER ASSY, platform auger finger adj

1шт.

114502

JAM NUT,Jam, 5/16"-18, G5

1шт.

106839

SET SCREW,Sq Hd, 5/16"-18 x 1"

5/16 X 1 SQ-HD-DOG-PT SET SCREW

1шт.

3

569587R91

EXTENSION

W/CLIP, platform auger RH, platform auger extension att

1шт.

5/16 X 3/4 C-Z CRG BOLT W/NUT

2шт.

5/16 X 1 C-Z MACH BOLT

1шт.

459063R1

SPRING NUT

5/16 TINNERMAN NUT W/RETAINER

1шт.

5/16 LOCK WASHER

2шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

1шт.

4

569586R91

EXTENSION W/CLIP, platform auger LH, platform auger extension att

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

5/16 X 1 MACH BOLT

1шт.

558384R91

NUT

5/16 TINNERMAN NUT W/RETAINER

1шт.

5/16 LOCK WASHER

2шт.

11/32 X 3/4 X 16 GA WASHER

1шт.

5

564924R1

BRACKET, auger drive chain tightener

1шт.

6

569018R2

SPROCKET ASSY.

SPROCKET, reel idler driven, slow speed 16-T

1шт.

6

569019R2

DRIVE SPROCKET

SPROCKET, reel idler driven, intermediate speed, 14-T

1шт.

6

588771R2

SPROCKET ASSY.

SPROCKET, reel idler driven, 19-T, rice

1шт.

6

569020R2

SPROCKET ASSY.

SPROCKET, reel idler driven, fast speed, 12-T, grain

1шт.

7

575875R1

BLOCK

reel drive chain tightener

1шт.

5/16 X 2 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

11/32 X 1 X 16 GA WASHER

1шт.

8

564946R1

BRACKET, platform auger drive shield, Not for 24 in. OD auger

2шт.

5/16 X 3/4 MACH BOLT W/NUT

3шт.

5/16 LOCK WASHER

3шт.

9

CHAIN, reel jackshaft drive roller, Use 43 links of 1-1/4 extended pitch stock roller chain, agricultural, from a 10-ft roll marked 569089R91, 3 roller links 456979R91, 3 connecting links 456980R91, and 4 offset connecting links 456929R91

1шт.

9

456979R91

CHAIN LINK

LINK, roller 1-1/4 extended pitch, agricultural, For use with 558771R1 idler driven sprocket, rice

1шт.

9

456980R91

CHAIN LINK

LINK, connecting, 1-1/4 extended pitch, agricultural, For use with 558771R1 idler driven sprocket, rice

1шт.

10

571441R91

SPROCKET ASSY.,15T

SPROCKET, platform auger, 15-T

1шт.

1/2 X 1-3/4 CRG BOLT

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

1/2 LOCK WASHER

1шт.

17/32 X 1 X 16 GA WASHER

2шт.

M83536

WASHER

17/32 X 1-1/4 X 11 GA SQ-HOLE WASHER

1шт.

551658R1

WASHER

25/32 X 1-1/4 X 22 GA WASHER

1шт.

CHAIN, platform auger drive roller, ind. no. 60H 1/8 in. thick side bar, Use 85 links from 10-ft roll marked 1793D and one connecting link 1786D, ind. no. 60 3/32 in. thick side bar, Use 85 links from 10-ft roll marked 611362R91 and one connecting link 574532R91

1шт.

12

633715R1

SPROCKET ASSY.

SPROCKET, platform auger and reel drive, 17-T, regular, 12-ft, 13-ft, 14-ft, 16-ft, and 18-ft, Serial no. 9956 and below

1шт.

12

633715R1

SPROCKET ASSY.

SPROCKET, platform auger and reel rive, 17-T, 13-ft grain, 14-ft grain, 15-ft and 16-ft, Serial no. 9957 and above

1шт.

12

150819C91

DRIVE SPROCKET

SPROCKET ASSY, platform auger and reel drive, 19-T, 13-ft rice, 14-ft rice and 18-ft, Serial no. 9957 and above

1шт.

12

633713R91

SPROCKET ASSY, auger and reel drive 13-T, 12-ft, 13-ft, 14-ft, 16-ft or 18-ft, special slow speed

1шт.

12

589148R91

SPROCKET ASSY, platform auger and reel drive, 15-T, special slow speed

1шт.

13

632971R91

SPROCKET W/HUB, platform auger drive 17-T, special for machines equipped with platform less cutting parts

1шт.

14

564931R1

SHIELD, platform auger drive

1шт.

15

568239R1

BEARING

BUSHING, platform auger slip clutch, 13-ft, 14-ft, 15-ft, 16-ft and 18-ft serial no. 13062 and below, 12-ft, 13-ft rice and 14-ft rice

1шт.

16

571460R1

SPROCKET ASSY.

SPROCKET, platform auger drive slip clutch, 13-ft, 14-ft, 15-ft, 16-ft and 18-ft serial no. 13062 and below, 12-ft, 13-ft rice and 14-ft rice

1шт.

16

156867C1

SPROCKET ASSY.

SPROCKET, platform auger drive slip clutch driven, 13-ft, 14-ft, 15-ft, 16-ft and 18-ft serial no. 13063 and above

1шт.

17

152772C91

HUB CAP

HUB ASSY, platform auger drive slip clutch, 13-ft, 14-ft, 15-ft, 16-ft and 18-ft serial no. 13062 and below, 12-ft, 13-ft rice and 14-ft rice

1шт.

575814R1

WASHER

25/32 x 2 x 11 ga

1шт.

18

192

KEY,5/16" Sq x 1 5/8", Par

straight, 5/16 x 5/16 x 1-5/8, 13-ft, 14-ft, 15-ft, 16-ft and 18-ft serial no. 13062 and below, 12-ft, 13-ft rice and 14-ft rice

1шт.

19

568243R1

SPRING

platform auger drive slip clutch, 13-ft, 14-ft, 15-ft, 16-ft and 18-ft serial no. 13062 and below, 12-ft, 13-ft rice and 14-ft rice

1шт.

20

568241R1

PLATE ASSY.

PLATE, platform auger drive slip clutch friction, 13-ft, 14-ft, 15-ft, 16-ft and 18-ft serial no. 13062 and below, 12-ft, 13-ft rice and 14-ft rice

1шт.

230-4115

LOCK NUT,5/16"-18, GA

5/16 STOVER LOCK NUT, 8 used grain, 6 used rice

1шт.

5/16 X 1-1/2 NO. 3 PLOW BOLT, 8 used grain, 6 used rice

1шт.

11/32 X 1 X 16 GA WASHER, 8 used grain, 6 used rice

1шт.

21

561088R1

SNAP RING,#244, 2.588", Int, Spiral

platform auger LH bearing retainer

2шт.

22

557995R11

COLLAR

W/SET SCREW ASSY, locking

1шт.

115321

SET SCREW,Hex Skt, 5/16"-18 x 5/16"

5/16 X 5/16 CUP-PT SET SCREW

1шт.

23

563883R91

BALL BEARING,31.75mm ID x 62mm OD x 16mm W

BEARING, ball

1шт.

24

569260R1

SPACER, platform auger LH shaft, Serial no. 13062 and below

1шт.

24

153311C1

SPACER

platform auger LH shaft, serial no. 13063 and above

1шт.

25

935965R1

HUB CAP

HUB W/COLLAR, platform auger drive shaft support, Serial no. 13062 and below

1шт.

26

629589R91

AUGER W/TUBE, platform 12-ft

1шт.

26

654840R91

AUGER W/TUBE, platform 13-ft, Serial no. 9956 and below

1шт.

26

153064C91

AUGER ASSY, platform 13-ft, Serial no. 9957 and above

1шт.

26

589072R91

AUGER W/TUBE, platform 14-ft, Serial no. 9956 and below

1шт.

26

153067C91

AUGER ASSY, platform 14-ft, Serial no. 9957 and above

1шт.

26

168371C1

AUGER ASSY, platform 15-ft

1шт.

26

573646R91

AUGER W/TUBE, platform 16-ft grain, Serial no. 9956 and below

1шт.

26

153069C91

AUGER ASSY, platform 16-ft, Serial no. 9957 and above

1шт.

26

654019R91

AUGER W/TUBE, platform 18-ft grain, Serial no. 9956 and below

1шт.

26

153071C91

AUGER ASSY, platfrom 18-ft, Serial no. 9957 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

27

153310C11

SHAFT

ASSY, platform auger LH

1шт.

7/8 SLT-JAM NUT

1шт.

1/8 X 1-1/2 COTTER PIN

1шт.

550999R1

WASHER

29/32 X 2 X 11 GA WASHER

1шт.

F18476

WASHER

1-9/32 X 1-3/4 X 16 GA WASHER

10шт.

28

565669R91

DISC W/STUD, platform auger LH

1шт.

7/16 NUT

4шт.

7/16 LOCK WASHER

4шт.

29

113879

KEY

woodruff, 5/16 x 1-1/4, Serial no. 13062 and below

1шт.

30

564853R11

COLLAR

W/SET SCREW ASSY, locking

3шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

1/4 X 1/4 CUP-PT SET SCREW

3шт.

31

564851R91

BALL BEARING,1.002" ID x 3.75" OD x 0.9"

ball

3шт.

32

558353R1

SHAFT

PIN, platform auger stub

1шт.

33

29459KA

KEY, platform auger shaft arm

4шт.

34

566608R11

CLAMP

ARM W/BOLT, nut and lockwasher, platform auger shaft

2шт.

3/8 X 2-1/4 MACH BOLT W/NUT

4шт.

3/8 LOCK WASHER

4шт.

35

NOT USED

1шт.

36

569250R1

SHAFT

platform auger center, Serial no. 9956 and below

1шт.

36

150829C1

SHAFT

platform auger center, Serial no. 9957 and above

1шт.

25/32 X 1-1/4 X 16 GA WASHER

1шт.

37

558316R2

HUB

platform auger finger bearing, Serial no. 501 to 4643, Serial no., Serial Range: 7224-9956

1шт.

5/16 X 1 SQ-HD CUP-PT SET SCREW

1шт.

5/16 JAM NUT

1шт.

37

617182R1

BUSHING

HUB, platform auger finger, Serial no., Serial Range: 4644-7224

1шт.

38

564954R1

FINGER

platform auger, Serial no. 501 to 4643, Serial no., Serial Range: 7224-9956

1шт.

38

936655R1

FINGER

PIN, platform auger, Not for 24 in. OD auger, Serial no., Serial Range: 4644-7224

1шт.

3/16 X 1-1/2 COT. PIN

1шт.

39

558318R1

HALF-BUSHING

BUSHING, platform auger finger, Serial no. 501 to 4643, Serial no., Serial Range: 7224-9956

1шт.

40

557173R2

RING

PIVOT, platform auger finger, platform serial no. 2332 and below

1шт.

41

566613R11

RETAINER

W/NUT, platform auger pivot, platform serial no. 2332 and below

1шт.

42

569259R1

PLATE, platform auger inspection, Serial no. 9956 and below

1шт.

113859

BOLT (SPREADER),Rd Hd, 5/16" - 18 x 1/2"

5/16 X 1/2 SLT-RD-HD MACH SCREW

1шт.

5/16 LOCK WASHER

1шт.

43

570338R1

SHAFT, platform auger adjusting 12-ft

1шт.

43

654818R1

SHAFT, platform auger adjusting 13-ft

1шт.

43

570923R1

SHAFT, platform auger adjusting 14-ft

1шт.

43

569251R1

SHAFT, platform auger adjusting 15-ft

1шт.

43

573650R1

SHAFT, platform auger adjusting 16-ft

1шт.

43

654023R1

SHAFT, platform auger adjusting 18-ft grain

1шт.

44

563246R1

FLANGE

DISC, platform auger end RH

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, Short NK, 5/16"-18 x 3/4", G2

3шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 hex.

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

45

653935R2

GUIDE

platform auger pin, platform serial no., Serial Range: 2333-9956

1шт.

46

936693R1

CAPSCREW,Tapping, 1/4" x 7/8"

SCREW, platform auger pin guide, platform serial no., Serial Range: 2833-9956

1шт.

47

NOT USED

1шт.

48

NOT USED

1шт.

49

150725C1

HUB CAP

HUB, platform auger finger, Serial no. 9957 and above

12шт.

50

150728C1

SHAFT

PIN, platform auger, Serial no. 9957 and above

12шт.

150724C1

SPLIT PIN/SAFETY PIN

PIN, quick attachable

12шт.

51

150723C1

RETAINER

platform auger pin bushing inner, Serial no. 9957 and above

12шт.

52

150726C1

RETAINER

platform auger pin bushing outer

12шт.

1/4 C-Z NUT

1шт.

1/4 X 1/2 C-Z SLT-TRUSS-HD MACH SCREW

1шт.

1/4 C-Z LOCK WASHER

1шт.

53

150731C1

COVER

platform auger inspection, Serial no. 9957 and above

1шт.

5/16 X 3/4 C-Z PAN-HD SELF TAPPING SCREW

1шт.

5/16 C-Z LOCK WASHER

1шт.

54

170720C1

BUSHING,13.13mm ID x 28.4mm OD

platform auger pin, Serial no. 9957 and above

12шт.

55

CENTER, keyed, Serial no. 9957 to 13062, Not serviced separately order hub assy 152772C91

1шт.

56

PLATE, rivet, Serial no. 9957 to 13062, Not serviced separately order hub assy 152772C91

1шт.

118072

NUT

RIVET, fl-hd

6шт.

57

PLATE AND FACING ASSY, Serial no. 9957 to 13062, Not serviced separately order hub assy 152772C91

1шт.

58

NOT USED

1шт.

59

NOT USED

1шт.
