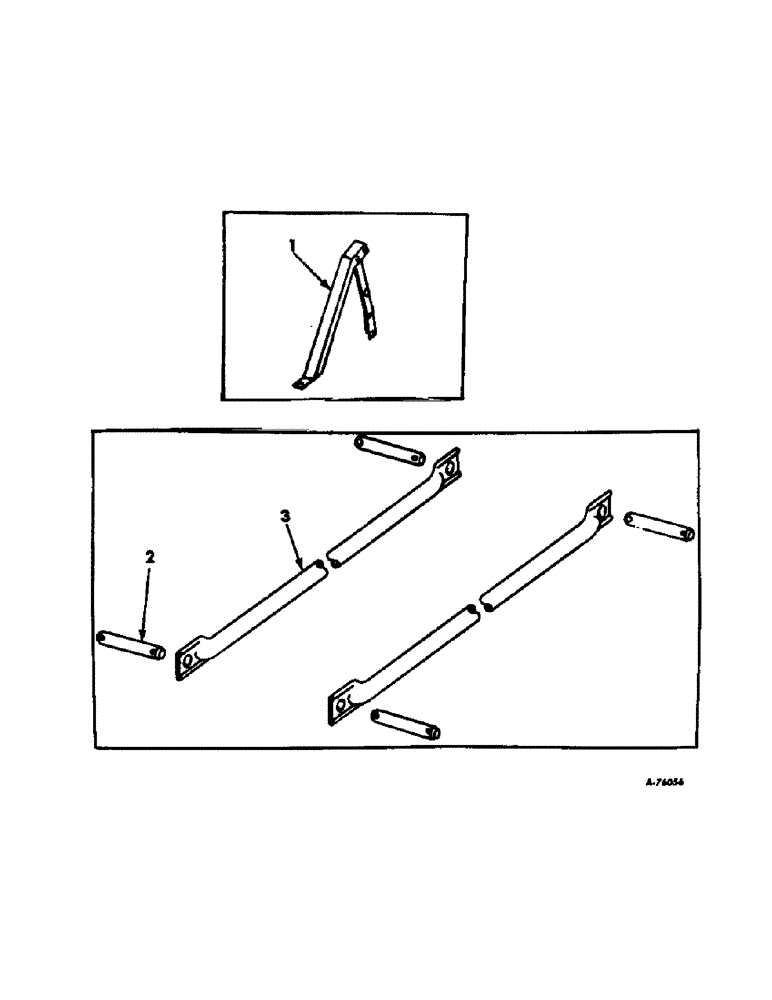

Запчасти Case IH 403 (019) - DIVIDER RUNNER BRACE ATTACHMENT, PLATFORM TRANSPORT ATTACHMENT (58) - ATTACHMENTS/HEADERS

1

628100R92

BRACE W/STIFFENER, divider runner LH

1шт.

1

628103R92

BRACE W/STIFFENER, divider runner RH, divider runner brace attachment

1шт.

5/16 X 1-1/4 C-Z CRG BOLT W/NUT

2шт.

3/8 X 3/4 C-Z CRG BOLT W/NUT

4шт.

3/8 X 1-3/4 C-Z CRG BOLT W/NUT

2шт.

5/16 X 3/4 C-Z CAP SCREW

4шт.

5/16 C-Z LOCK WASHER

6шт.

3/8 C-Z LOCK WASHER

6шт.

11/32 X 3/4 X 16 GA WASHER

8шт.

615090R1

WASHER

17/32 X 2 X 11 GA WASHER

12шт.

2

573762R1

PIN,25.4mm OD x 130.97mm L

platform lift cylinder transport, platform transport attachment

4шт.

1/4 X 1-3/4 COTTER PIN

8шт.

3

574524R91

LIFT, platform transport, platform transport attachment

2шт.
