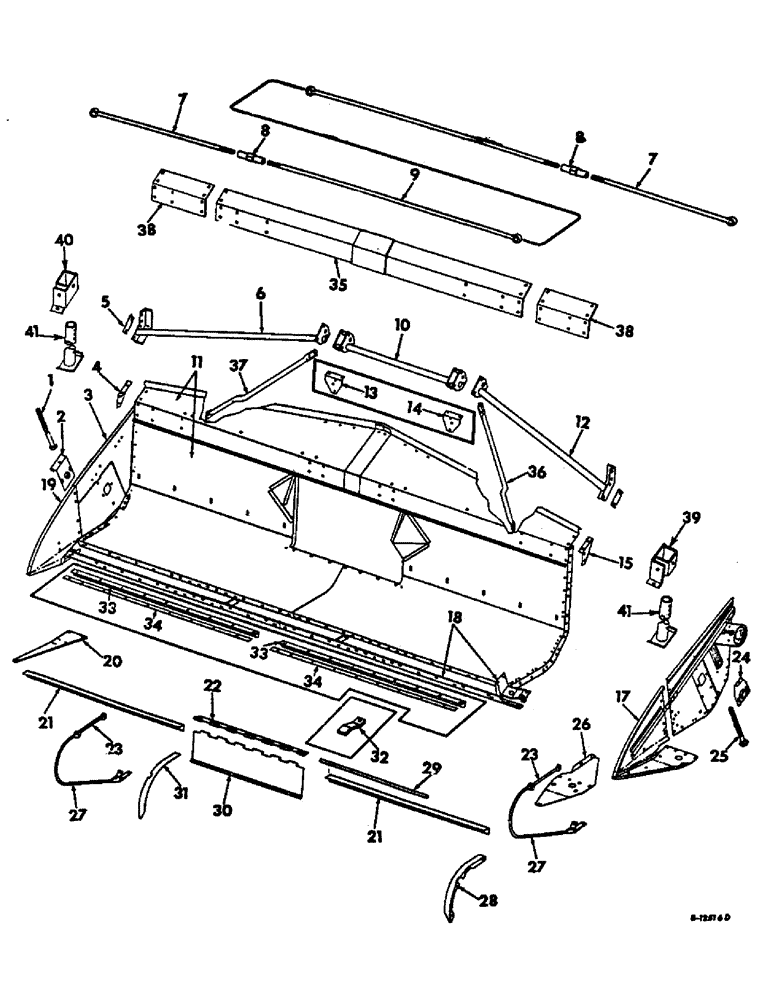

Запчасти Case IH 403 (015) - PLATFORM (58) - ATTACHMENTS/HEADERS

1

565392R1

BOLT, platform auger RH adjusting, 3/8 x 7-1/2

1шт.

3/8 NUT

2шт.

13/32 X 1 X 16 GA WASHER

1шт.

2

569244R21

PLATE W/HUB, platform auger adjusting RH

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

3

633722R91

END W/STIFFENER AND SUPPORT, platform RH

1шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

3/8 X 7/8 CRG BOLT W/NUT

1шт.

1/2 X 1-1/4 CRG BOLT W/NUT

1шт.

5/16 X 1/2 MACH BOLT W/NUT

1шт.

5/16 X 3/4 HEX-HD MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

11/32 X 3/4 X 16 GA WASHER

1шт.

17/32 X 1-1/2 X 11 GA C-Z WASHER

1шт.

4

564911R1

GUSSET, platform support RH, platform serial no. 2332 and below

1шт.

4

631293R1

GUSSET, platform upper support RH, platform serial no. 2333 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

4шт.

5

570369R1

SHIM, platform lower brace outer

1шт.

5

587860R1

SHIM, platform lower brace outer

1шт.

6

574878R92

BRACE W/PIPE, platform lower RH 12-ft

1шт.

6

654785R91

BRACE W/PIPE, platform lower RH 13-ft

1шт.

6

574880R92

BRACE W/PIPE, platform lower RH 14-ft

1шт.

6

574882R91

BRACE ASSY, platform lower RH 15-ft

1шт.

6

582553R92

BRACE W/PIPE, platform lower RH 16-ft

1шт.

6

654026R91

BRACE W/PIPE, platform lower RH 18-ft

1шт.

1/2 X 1-3/4 CRG BOLT W/NUT

1шт.

7/16 X 1-1/4 CRG BOLT W/NUT

1шт.

7/16 X 1 MACH BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

7

573062R1

ROD, platform lower truss, 14-ft, 15-ft and 16-ft

2шт.

7

654797R1

ROD, platform lower truss, 13-ft

2шт.

7

654032R1

ROD, platform lower truss, 18-ft

2шт.

5/8 X 1-3/4 MACH BOLT

2шт.

5/8 NUT

3шт.

5/8 LOCK WASHER

2шт.

8

M4175

TURNBUCKLE, platform truss rod

2шт.

5/8 NUT

2шт.

9

654796R1

ROD, platform upper truss 13-ft

1шт.

9

574884R1

ROD, platform upper truss 14-ft

2шт.

9

574883R1

ROD, platform upper truss 15-ft

2шт.

9

573061R1

ROD, platform upper truss 16-ft

2шт.

9

573062R1

ROD, platform upper truss 18-ft

2шт.

17525R1

BOLT

5/8 X 2 HEX-HD MACH BOLT

2шт.

5/8 LOCK WASHER

2шт.

10

170685C1

LIFT W/GUSSET

1шт.

1/2 X 3 MACH BOLT W/NUT

1шт.

1/2 LOCK WASHER

1шт.

11

570301R91

PLATFORM W/BACKSHEET AND BOTTOM 12-FT

1шт.

11

654735R91

PLATFORM W/BACKSHEET AND BOTTOM 13-FT, For platforms less cutting parts, Serial no. 13062 and below for platform w/cutting parts

1шт.

11

159659C91

PLATFORM ASSY, 13-ft, Serial no. 13063 and above for platform w/cutting parts

1шт.

11

572892R91

PLATFORM W/BACKSHEET AND BOTTOM 14-FT

1шт.

11

159707C91

PLATFORM ASSY, 15 foot

1шт.

11

572894R91

PLATFORM W/BACKSHEET AND BOTTOM 16-FT

1шт.

11

654010R91

PLATFORM W/BACKSHEET AND BOTTOM 18-FT

1шт.

5/16 X 1/2 CRG BOLT W/NUT

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

7/16 X 1 CRG BOLT W/NUT

1шт.

7/16 X 1-1/2 CRG BOLT W/NUT

1шт.

1/2 X 1-3/4 CRG BOLT W/NUT

1шт.

5/16 X 3/4 MACH BOLT W/NUT

1шт.

3/8 X 3/4 MACH BOLT W/NUT

1шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

7/16 X 1 MACH BOLT W/NUT

1шт.

1/2 X 1-1/2 MACH BOLT W/NUT

1шт.

1/4 X 5/8 WAGON-BOX-HD RIVET

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

7/16 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

615009R1

WASHER

17/64 X 3/4 X 16 GA WASHER

1шт.

12

574877R92

BRACE W/PIPE, platform lower LH 12-ft

1шт.

12

654784R91

BRACE W/PIPE, platform lower LH 13-ft

1шт.

12

574879R92

BRACE W/PIPE, platform lower LH 14-ft

1шт.

12

574881R91

BRACE ASSY, platform lower LH 15-ft

1шт.

12

582552R92

BRACE W/PIPE, platform lower LH 16-ft

1шт.

12

654025R91

BRACE W/PIPE, platform lower LH 18-ft

1шт.

7/16 X 1-1/2 CRG BOLT W/NUT

1шт.

7/16 X 1 MACH BOLT W/NUT

1шт.

1/2 X 1-3/4 CRG BOLT W/NUT

1шт.

7/16 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

13

631366R1

REINFORCEMENT, platform top rail RH, For platforms less cutting parts, Serial no. 13062 and below for platforms w/cutting parts

1шт.

13

159649C1

SUPPORT, platform top rail right, Serial no. 13063 and above for platforms w/cutting parts

1шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

7/16 X 3/4 MACH BOLT W/NUT

1шт.

114503

JAM NUT,Jam, 3/8"-16, G5

1шт.

3/8 LOCK WASHER

1шт.

7/16 LOCK WASHER

1шт.

14

631365R1

STIFFENER

REINFORCEMENT, platform top rail LH, For platforms less cutting parts, Serial no. 13062 and below for platforms w/cutting parts

1шт.

14

159648C1

SUPPORT, platform top rail left, Serial no. 13063 and above for platforms w/cutting parts

1шт.

3/8 X 1 MACH BOLT

1шт.

7/16 X 3/4 MACH BOLT W/NUT

2шт.

114503

JAM NUT,Jam, 3/8"-16, G5

2шт.

3/8 LOCK WASHER

2шт.

7/16 LOCK WASHER

2шт.

15

564910R1

GUSSET, platform upper support LH, platform serial no. 2332 and below

1шт.

15

631292R1

GUSSET, platform upper support LH, platform serial no. 2333 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

2шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

4шт.

16

633721R91

END W/STIFFENER AND SUPPORT, platform LH

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1-1/4 CRG BOLT W/NUT

1шт.

3/8 X 7/8 CRG BOLT W/NUT

1шт.

7/16 X 1 CRG BOLT W/NUT

1шт.

7/16 X 1-1/2 CRG BOLT W/NUT

1шт.

1/2 X 1-1/4 CRG BOLT W/NUT

1шт.

1/2 X 1-1/2 CRG BOLT W/NUT

1шт.

5/16 X 1/2 MACH BOLT W/NUT

1шт.

5/16 X 3/4 MACH BOLT W/NUT

1шт.

3/8 X 1-1/4 MACH BOLT W/NUT

1шт.

1/4 X 3/4 HEX-HD MACH BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

7/16 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

11/32 X 3/4 X 16 GA WASHER

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

15/32 X 1 X 16 GA WASHER

1шт.

1/4 LOCK WASHER

1шт.

17

627812R91

DIVIDER W/STIFFENER AND STRAP, LH, Not for use with windrop special, Serial no., Serial Range: 501-4643

1шт.

17

634557R91

DIVIDER W/STIFFENER AND STRAP, LH, For use with windrop special, Serial no., Serial Range: 501-4643

1шт.

17

634557R91

DIVIDER W/STIFFENER AND STRAP, LH, regular, Serial no. 4644 and above

1шт.

5/16 X 1/2 CRG BOLT W/NUT

2шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 X 1 CRG BOLT W/NUT

1шт.

1/4 NUT

1шт.

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

5/16 LOCK WASHER

4шт.

1/4 LOCK WASHER

1шт.

18

571464R91

SUPPORT W/ANCHOR, cutter bar 12-ft

1шт.

18

654767R91

SUPPORT W/ANCHOR, cutter bar 13-ft, Serial no. 7223 and below

1шт.

18

939608R91

SUPPORT ASSY, cutter bar 13-ft, Serial no. 7224 and above

1шт.

18

571465R91

SUPPORT W/ANCHOR, cutter bar 14-ft, Serial no. 7223 and below

1шт.

18

939609R91

SUPPORT ASSY, cutter bar 14-ft, Serial no. 7224 and above

1шт.

18

156138C91

SUPPORT ASSY, cutter bar 15-ft

1шт.

18

571466R91

SUPPORT W/ANCHOR, cutter bar 16-ft, Serial no. 7223 and below

1шт.

18

939610R91

SUPPORT ASSY, cutter bar 16-ft, Serial no. 7224 and above

1шт.

18

654024R91

SUPPORT W/ANCHOR, cutter bar 18-ft, Serial no. 7223 and below

1шт.

18

939611R91

SUPPORT ASSY, cutter bar 18-ft, Serial no. 7224 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

7/16 X 1 CRG BOLT W/NUT

1шт.

7/16 X 1-1/4 CRG BOLT W/NUT

1шт.

1/2 X 3/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

1шт.

7/16 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

19

627819R91

DIVIDER W/STIFFENER AND STRAP, RH, Not for use with windrow special, Serial no., Serial Range: 501-4643

1шт.

19

634558R91

DIVIDER W/STIFFENER AND STRAP, RH, For use with windrow special, Serial no., Serial Range: 501-4643

1шт.

19

634558R91

DIVIDER W/STIFFENER AND STRAP, RH, regular, Serial no. 4644 and above

1шт.

5/16 X 1/2 CRG BOLT W/NUT

4шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

1/4 NUT

1шт.

1/4 X 1/2 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

1шт.

5/16 LOCK WASHER

5шт.

20

633293R1

STIFFENER, platform RH divider runner, Not for use with windrow special, Serial no., Serial Range: 501-4643

1шт.

20

634580R1

PLATE

STIFFENER, platform RH divider runner, For use with windrow special, Serial no., Serial Range: 501-4643

1шт.

20

634580R1

PLATE

STIFFENER, platform RH divider runner, regular, Serial no. 4644 and above

1шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

3/8 X 1-1/4 CRG BOLT W/NUT

2шт.

3/8 LOCK WASHER

5шт.

21

570306R1

STRIPPER, platform auger 12-ft

2шт.

21

570945R1

STRIPPER, platform auger 14-ft

2шт.

21

573058R1

STRIPPER, platform auger 16-ft

2шт.

21

654034R1

STRIPPER, platform auger 18-ft

2шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

3420H

13/32 X 1-3/4 X 16 GA WASHER

1шт.

22

569176R1

HINGE, feeder front shield door

1шт.

23

564825R1

LINK, divider rod

1шт.

7/16 X 1-1/2 WAGON BOX-HD RIVET

2шт.

15/32 X 1 X 11 GA WASHER

4шт.

24

564810R91

PLATE W/HOUSING, platform auger adjusting left

1шт.

25

M86308

BOLT, platform auger LH adjusting, 3/8 x 5-1/2

1шт.

3/8 NUT

1шт.

13/32 X 1 X 16 GA WASHER

1шт.

26

633292R1

STIFFENER, platform LH divider runner, Not for use with windrow special, Serial no., Serial Range: 501-4643

1шт.

26

634579R1

PLATE

STIFFENER, platform LH divider runner, For use with windrow special, Serial no., Serial Range: 501-4643

1шт.

26

634579R1

PLATE

STIFFENER, platform LH divider runner, regular, Serial no. 4644 and above

1шт.

5/16 X 1 CRG BOLT W/NUT

2шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

1/2 X 1-1/2 C-Z SQ-NK CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

2шт.

3/8 LOCK WASHER

3шт.

1/2 LOCK WASHER

3шт.

27

568309R91

ROD

W/LINK, divider, includes ref. no. 23

2шт.

28

568443R2

DEFLECTOR, platform end sheet LH, regular for rice, special for grain

1шт.

1/4 NUT

4шт.

1/4 X 1/2 SLT-HD-HD MACH SCREW

3шт.

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

4шт.

29

568476R1

ROD

feeder front shield door hinge

1шт.

30

569175R1

DOOR, feeder front shield

1шт.

31

568444R2

DEFLECTOR, platform end sheet RH, regular for rice, special for grain, For 20 in. OD auger

1шт.

1/4 NUT

4шт.

440-1258

SCREW,Cross Pan Hd, 1/4"-20 x 1/2"

1/4 X 1/2 SLT-RD-HD MACH SCREW

1шт.

113957

SCREW,Sl Rnd Hd, 1/4" - 20 x 3/4"

1/4 X 3/4 SLT-RD-HD MACH SCREW

1шт.

1/4 LOCK WASHER

4шт.

32

936544R91

BRACKET PLATFORM EXTENSION SUPPORT LESS CUTTING PARTS, Serial no. 4644 and above

3шт.

3/8 X 1 CRG BOLT W/NUT

3шт.

3/8 LOCK WASHER

3шт.

33

654773R1

ANGLE, auger stripper LH 13-ft

1шт.

33

156152C1

ANGLE, auger stripper LH 15-ft

1шт.

33

654774R1

ANGLE, auger stripper RH 13-ft

1шт.

33

156153C1

ANGLE, auger stripper RH 15-ft

1шт.

14995R1

BOLT

3/8 x 3/4 sq-nk crg

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT, 3/8 x 1 sq-nk crg

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

17448R1

BOLT (SPREADER)

BOLT, 1/2 x 1-1/4 hex-hd mach

1шт.

102635

NUT,3/8"-16, G5

1шт.

102637

NUT,1/2"-13, G5

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

3420H

WASHER, 13/32 x 1-3/4 x 16 ga

1шт.

34

654775R1

STRIPPER, platform auger 13-ft

2шт.

34

156151C1

STRIPPER, platform auger 15-ft

2шт.

35

150797C91

PLATE ASSY, platform upper rail, 16-ft, Serial no. 7224 and above

1шт.

35

156126C91

PLATE ASSY, platform upper rail, 15-ft, Serial no. 16129 and below

1шт.

35

159704C91

PLATE ASSY, platform upper rail, 15-ft, Serial no. 16130 and above

1шт.

35

150802C91

PLATE ASSY, platform upper rail, 18-ft, Serial no. 7224 and above

1шт.

3/8 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 1 CRG BOLT W/NUT

1шт.

1/2 X 1 CRG BOLT W/NUT

1шт.

3/8 X 1 MACH BOLT W/NUT

1шт.

1/2 X 1-1/4 MACH BOLT W/NUT

1шт.

3/8 LOCK WASHER

1шт.

1/2 LOCK WASHER

1шт.

36

150798C1

BRACE, feeder to platform LH, 16-ft, Serial no. 7224 and above, 18-ft, Serial no. 9957 and above

1шт.

1/2 X 1-1/4 C-Z CRG BOLT W/NUT

3шт.

3/8 X 2-1/2 C-Z MACH BOLT W/NUT

1шт.

3/8 C-Z LOCK WASHER

1шт.

1/2 C-Z LOCK WASHER

3шт.

550618R1

17/32 X 1-1/2 X 3/16 WASHER

1шт.

1/2 X 1-1/4 C-Z CRG BOLT W/NUT

3шт.

3/8 X 2-1/2 C-Z MACH BOLT W/NUT

1шт.

3/8 C-Z LOCK WASHER

1шт.

1/2 C-Z LOCK WASHER

3шт.

550618R1

17/32 X 1-1/2 X 3/16 WASHER

1шт.

37

150799C1

BRACE, feeder to platform RH, 16-ft, Serial no. 7224 and above

1шт.

37

150806C1

BRACE, feeder to platfom RH, 18-ft, Serial no. 7224 and above

1шт.

1/2 X 1-1/4 C-Z CRG BOLT W/NUT

3шт.

3/8 X 2-1/2 C-Z MACH BOLT W/NUT

1шт.

3/8 C-Z LOCK WASHER

1шт.

1/2 C-Z LOCK WASHER

3шт.

550618R1

17/32 X 1-1/2 X 3/16 WASHER

1шт.

38

150843C1

SHEET, platform upper rail LH reinforcing, 14-ft rice, Serial no. 7224 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

5/16 LOCK WASHER

1шт.

38

150844C1

SHEET, platform upper rail RH reinforcing, 14-ft rice, Serial no. 7224 and above

1шт.

5/16 X 3/4 CRG BOLT W/NUT

1шт.

3/8 X 3/4 CRG BOLT W/NUT

2шт.

5/16 LOCK WASHER

1шт.

3/8 LOCK WASHER

2шт.

39

170740C1

CLAMP ASSY, platform stand LH

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8 x 2 znd hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

23473R1

PIN, 3/8 x 3-1/8 C-Z std-hd

1шт.

586591R1

COTTER PIN

PIN, qa cot.

1шт.

40

170741C1

CLAMP ASSY, platform stand RH

1шт.

18495R1

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4 znd hex-hd mach

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

18823R1

BOLT,Hex, 5/8"-11 x 2", G2

5/8 x 2 znd hex-hd mach

1шт.

280374

NUT,Hex, 5/8" - 11, Gr 5

5/8 znd hex.

1шт.

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

23473R1

PIN, 3/8 x 3-1/8 C-Z std-hd

1шт.

586591R1

COTTER PIN

PIN, qa cot.

1шт.

41

160790C92

STAND ASSY, platform

1шт.
