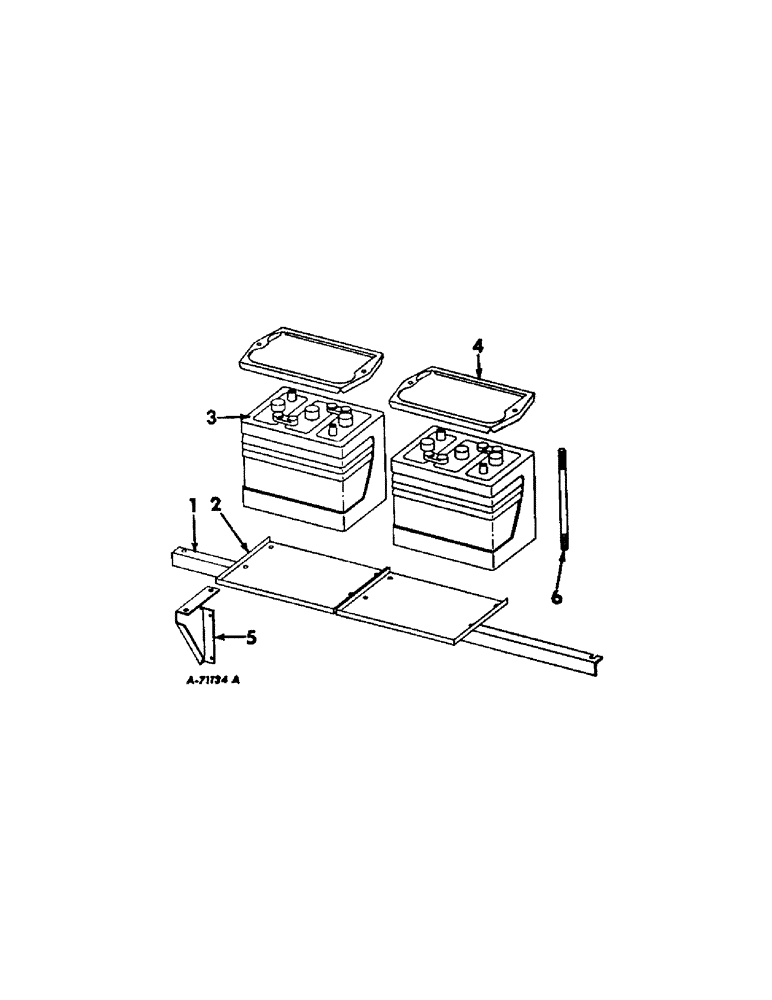

Запчасти Case IH 403 (396) - BATTERY, COVER AND SUPPORTS, FOR D-282 ENGINE (55) - ELECTRICAL SYSTEMS

1

628593R1

ANGLE, support battery, Not hydrostatic ground drive

1шт.

2

155866C1

CARRIER, battery, Not hydrostatic ground drive

2шт.

2

150934C1

CHANNEL, battery support, For hydrostatic ground drive

2шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

3/8 X 3/4 MACH BOLT

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

102635

NUT,3/8"-16, G5

4шт.

3

391546R91

BATTERY, Prestolite 2-A9Z 6 volt

2шт.

4

316329R1

CLAMP, battery hold-down

2шт.

18012R1

SCREW,Hex, 5/16" - 18 x 9 1/2"

5/16 X 9-1/2 MACH BOLT

4шт.

129-419

WING NUT,5/16"-18

5/16 WING NUT

4шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

5

629625R1

BRACKET, battery support, Not hydrostatic ground drive

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 X 1 MACH BOLT

2шт.

111640

1/4 X 3/4 TAPPING SCREW

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

102635

NUT,3/8"-16, G5

2шт.

6

NOT USED IN THIS APPLICATION

1шт.
