(396[1]) - BATTERY AND COVER, FOR C-263 ENGINE

Запчасти Case IH 403 (396[1]) - BATTERY AND COVER, FOR C-263 ENGINE (55) - ELECTRICAL SYSTEMS

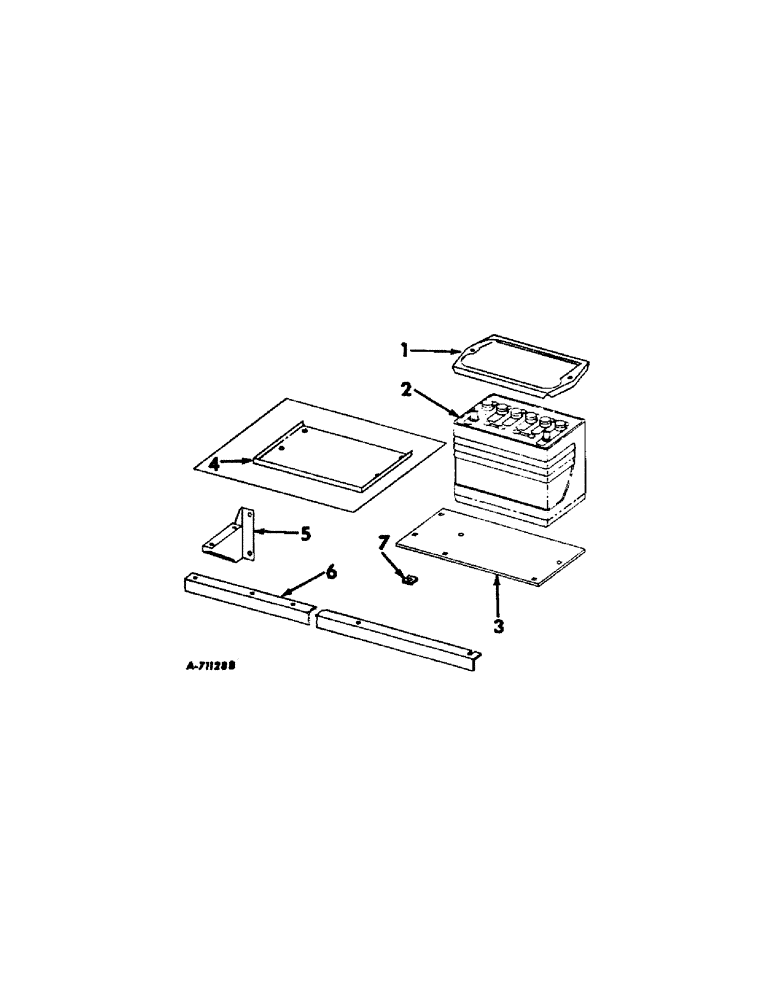

Схема запчастей Case IH 403 - (396[1]) - BATTERY AND COVER, FOR C-263 ENGINE (55) - ELECTRICAL SYSTEMS
6
2
7
3
5
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

72924R1

CLAMP

battery hold-down

1шт.

18012R1

SCREW,Hex, 5/16" - 18 x 9 1/2"

5/16 X 9-1/2 MACH BOLT

2шт.

935736R1

NUT, WING

5/16 WING NUT

2шт.

Q397

WASHER

11/32 X 3/4 X 16 GA WASHER

4шт.

2

395587R91

BATTERY, Prestolite 24H-A8Z 12 volt

1шт.

3

939522R1

SUPPORT, battery, Combine serial no. 7224 & above

1шт.

4

NOT USED IN THIS APPLICATION

1шт.

5

NOT USED IN THIS APPLICATION

1шт.

6

NOT USED IN THIS APPLICATION

1шт.

7

NOT USED IN THIS APPLICATION

1шт.
