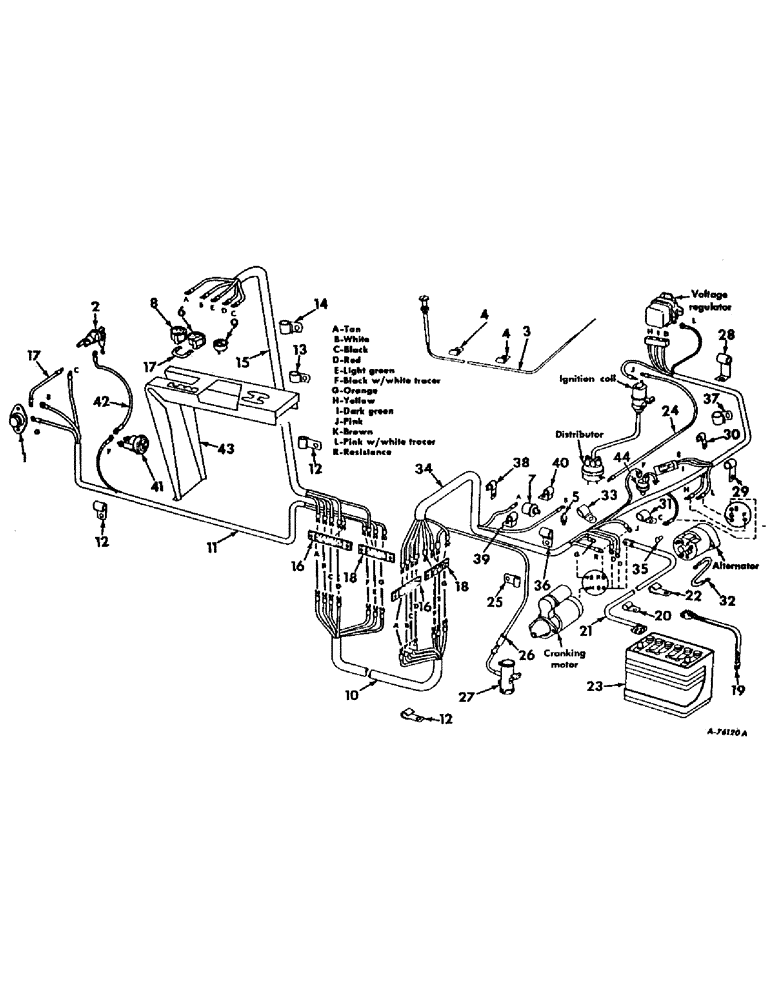

Запчасти Case IH 403 (392) - ELECTRICAL SYSTEM, WIRING DIAGRAM, FOR C-263 ENGINE, COMBINE SERIAL NO. 9957 AND ABOVE (55) - ELECTRICAL SYSTEMS

1

366317R91

IGNITION SWITCH

SWITCH ASSY, push button starting

1шт.

120611

NUT,#10 - 32

10-30 C-Z sq mach screw

2шт.

100751

SCREW,Slotted Rd Hd, #8-32 x 1/2"

8-32 x 1/2 slt-rd-hd mach

1шт.

132903

ADAPTER

SCREW, 10-32 x 7/16 C-Z slt-rd-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

615226R1

WASHER

1-1/32 x 1-1/2 x 22 ga

2шт.

2

365522R92

SWITCH

ASSY, ignition, key type

1шт.

365502R1

NUT

switch mounting

1шт.

112871

SCREW, 6-32 x 5/16 slt-rd-hd mach

2шт.

125793

LOCK, Int Tooth, 13/16"

1шт.

118872

DECAL

WASHER, no. 6 light lock

2шт.

3

564534R91

CABLE

ASSY, choke, gasoline

1шт.

3

588063R91

CABLE

ASSY, choke, LP gas

1шт.

4

362127R1

CLIP

choke cable

2шт.

5

665016R91

TEMPERATURE SENDER

UNIT ASSY, water temperature sending

1шт.

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

BUSHING, 1/2 x 3/8 reducer

1шт.

6

939262R91

GAUGE ASSY.

GAUGE ASSY, water temperature

1шт.

7

UNIT ASSY, oil pressure sending, Refer to Eng-2 parts catalog

1шт.

8

GAUGE ASSY, oil pressure, Refer to Eng-2 parts catalog

1шт.

9

154818C91

GAUGE ASSY.

GAUGE ASSY, charge indicator, Optional with 264431R91

1шт.

9

264431R91

AMMETER

GAUGE ASSY, charge indicator, Optional with 154818C91

1шт.

10

154829C91

HARNESS ASSY, cable, Serial no. 16129 and below

1шт.

10

161289C91

HARNESS ASSY, cable, Serial no. 16130 and above

1шт.

11

154828C91

HARNESS ASSY, starter and starter switch cable, Serial no. 16129 and below

1шт.

11

161291C91

HARNESS ASSY, starter and starter switch cable, Serial no. 16130 and above

1шт.

12

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness

10шт.

13

140582

CLAMP

CLIP, cable harness

1шт.

14

140571

CLIP

cable harness

1шт.

15

154855C91

HARNESS ASSY, instrument gauge cable

1шт.

16

565481R91

BAR

BLOCK ASSY, four terminal junction

2шт.

100779

BOLT,Rd Hd, #12 - 24 x 3/4"

SCREW, 12-24 x 3/4 slt-rd-hd mach

4шт.

103102

NUT, 12-24 sq mach screw

4шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

4шт.

17

565553R91

CABLE ASSY, switch and gauge

2шт.

18

155219C91

BLOCK ASSY, three terminal junction

2шт.

100779

BOLT,Rd Hd, #12 - 24 x 3/4"

SCREW, 12-24 x 3/4 slt-rd-hd mach

4шт.

103102

WASHER, no. 12 med lock

4шт.

19

629029R92

NEG BATTERY CABLE

CABLE ASSY, Serial Range: battery-ground

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

SCREW, 7/16-14 x 3/4 hex-hd cap

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

61252H

WASHER

15/32 x 3/4 x 11 ga

1шт.

20

140571

CLIP

closed

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16-18 x 3/4 hex-hd

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16-18 hex.

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

21

632106R91

CABLE

ASSY, battery to cranking motor

1шт.

22

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, battery cable

1шт.

23

395587R91

BATTERY, Prestolite 24H-A8Z 12 volt

1шт.

24

CABLE ASSY, coil to distributor primary, Refer to Eng-2 parts catalog

1шт.

25

362127R1

CLIP

fuel pump cable

3шт.

26

632095R91

CABLE ASSY, fuel pump, gasoline engines

1шт.

27

PUMP ASSY, fuel, gasoline engines only, Refer to Eng-2 parts catalog

1шт.

28

370383R1

CLIP

cable harness, On LH water outlet housing mounting bolt

1шт.

29

365584R1

CLIP

cable harness, On governor housing RH upper mounting bolt

1шт.

30

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, cable harness, On governor housing upper RH tapped hole

1шт.

31

384559R1

CLIP

cable harness, On crankcase oil pan 6th from rear RH side mounting bolt

1шт.

32

385006R91

CABLE ASSY, alternator to ground, Serial no. 16129 and below

1шт.

33

384559R1

CLIP

cable harness, On crankcase oil pan 3rd from rear RH side mounting bolt

1шт.

34

401137R1

HARNESS

ASSY, main cable, Will work for 393836R91

1шт.

35

399470R1

BOOT

INSULATOR, terminal cover boot

1шт.

36

358986R1

CABLE CLIP

CLIP, cable harness, On crankcase RH upper tapped hole

1шт.

37

384559R1

CLIP

cable harness, On pump lower RH mounting bolt

1шт.

38

370535R1

CLIP

cable harness, On valve push rod cover rear lower mounting bolt

1шт.

386871R1

WASHER, valve push rod cover bolt

1шт.

39

365584R1

CLIP

cable harness, On valve cover center mounting bolt

1шт.

40

365584R1

CLIP

cable harness, On valve cover rear mounting bolt

1шт.

41

389871R91

GAUGE

INDICATOR ASSY, air cleaner restriction

1шт.

42

161293C91

CABLE ASSY, air cleaner restriction indicator

1шт.

43

SHROUD, See unit listed under operators lever shroud

1шт.

44

389682R91

SWITCH

electric air cleaner

1шт.
