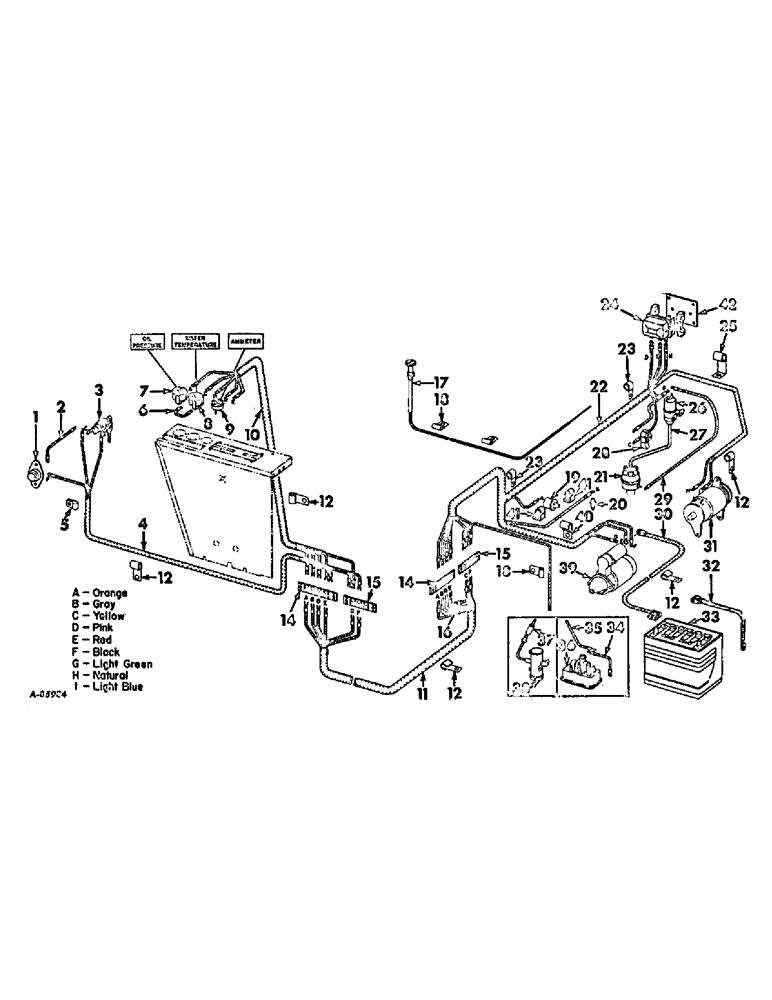

Запчасти Case IH 403 (386) - ELECTRICAL SYSTEM, WIRING DIAGRAM, FOR C-263 ENGINE, COMBINE SERIAL NO. 9956 AND BELOW (55) - ELECTRICAL SYSTEMS

1

366317R91

IGNITION SWITCH

SWITCH ASSY, push button starting

1шт.

120611

NUT,#10 - 32

NO. 10-32NF SQ NUT

2шт.

100751

SCREW,Slotted Rd Hd, #8-32 x 1/2"

NO. 8 X 1/2 SLT-RD-HD SCREW

1шт.

132903

ADAPTER

NO. 10-32NF X 7/16 C-Z SLT-HD SCREW

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

615226R1

WASHER

1-1/32 X 1-1/2 X 22 GA WASHER

2шт.

2

565553R91

CABLE ASSY, ignition switch to starter switch

1шт.

3

365522R92

SWITCH

ASSY, ignition, key type

1шт.

365502R1

NUT

switch mounting

1шт.

NLS

NO LONGER SERVICED

LOCK, Int Tooth, 13/16"

1шт.

112871

NO. 6 X 5/16 SLT-RD-HD SCREW

1шт.

118872

DECAL

NO. 6 LOCK WASHER

1шт.

4

629442R91

HARNESS ASSY, starter and starter switch

1шт.

5

140582

CLAMP

CLIP, closed

1шт.

5

140571

CLIP

cable

1шт.

6

565553R91

CABLE ASSY, oil pressure gauge to water temperature gauge

1шт.

7

GAUGE ASSY, oil pressure, Refer to Eng-2 parts catalog

1шт.

8

629032R91

GAUGE

ASSY, water temperature, Combine serial no. 7223 & below

1шт.

8

939262R91

GAUGE ASSY.

GAUGE ASSY, water temperature, Combine serial no. 7224 & above

1шт.

9

269467R92

INDICATOR

GAUGE ASSY, charge indicator

1шт.

10

632107R91

HARNESS ASSY, instrument gauge cable

1шт.

11

629441R91

HARNESS W/FUSE ASSY, cable

1шт.

12

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLIP, open

1шт.

17404R1

BOLT,Hex, 5/16" - 18 x 1/2", Gr 2

5/16 X 1/2 MACH BOLT

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 NUT

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

13

NOT USED IN THIS APPLICATION

1шт.

14

565481R91

BAR

BLOCK ASSY, four terminal

2шт.

103102

NO. 12 SQ NUT

4шт.

100779

BOLT,Rd Hd, #12 - 24 x 3/4"

NO. 12 X 3/4 SLT-RD-HD SCREW

4шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

4шт.

15

300559R91

BLOCK

ASSY, junction three terminal

2шт.

103102

NO. 12 SQ NUT

4шт.

100779

BOLT,Rd Hd, #12 - 24 x 3/4"

NO. 12 X 3/4 SLT-RD-HD SCREW

3шт.

100781

NO. 12 X 1 SLT-RD-HD SCREW

1шт.

106498

LOCK WASHER,#12

Washer, Lock, #12

4шт.

16

223-31

FUSE,10 Amp, Type 3AG

30 amp, cartridge type

1шт.

17

564534R91

CABLE

ASSY, choke, Optional for 634522R91 cable, Gasoline engines

1шт.

17

634522R91

CONTROL

CABLE ASSY, choke, Optional for 564534R91 cable, Gasoline engines

1шт.

17

588063R91

CABLE

ASSY, choke, LP gas engines

1шт.

18

362127R1

CLIP

choke and fuel pump cable

1шт.

19

UNIT ASSY, oil pressure sending, Refer to Eng-2 parts catalog

1шт.

20

665016R91

TEMPERATURE SENDER

UNIT ASSY, water temperature

1шт.

221-89

REDUCER,Hex, 1/2" x 3/8" NPT

1/2 X 3/8 REDUCING BUSHING

1шт.

21

DISTRIBUTOR ASSY, Refer to Eng-2 parts catalog

1шт.

22

379392R91

HARNESS ASSY, cable

1шт.

23

362121R1

CLIP

cable harness, On push rod cover screw

2шт.

24

1119270E

REGULATOR ASSY, voltage, For components see list of parts under details of voltage regulator, Also order plate, 393454R1 & attaching hardware

1шт.

25

370383R1

CLIP

cable harness, On RH water outlet housing mounting bolt

1шт.

26

COIL ASSY, ignition, Refer to Eng-2 parts catalog

1шт.

27

NOT SERVICED SEPARATELY, Refer to Eng-2 parts catalog

1шт.

28

RESISTOR, ignition coil, Refer to Eng-2 parts catalog

1шт.

29

CABLE, coil to distributor primary, Refer to Eng-2 parts catalog

1шт.

30

632106R91

CABLE

ASSY, battery to starting motor

1шт.

31

1100425

GENERATOR

ASSY, For components see list of parts under details of generator

1шт.

32

629029R91

CABLE

ASSY, Serial Range: battery-ground

1шт.

179856

BOLT,Hex, 7/16" - 14 x 3/4", Gr 5

7/16 X 3/4 CAP SCREW

1шт.

10332

WASHER

7/16 LOCK WASHER

1шт.

61252H

WASHER

15/32 X 3/4 X 11 GA WASHER

1шт.

33

365861R91

BATTERY, Prestolite HS11-60, 12 volt

1шт.

34

631760R91

ELECTRICAL WIRE

CABLE ASSY, fuel pump ground, Gasoline engines, special, For use with 631321R92 fuel pump assy, Combine serial no. 2195 & below

1шт.

35

632096R91

CABLE ASSY, fuel pump, Gasoline engines, special, For use with 631321R92 fuel pump assy, Combine serial no. 2195 & below

1шт.

36

PUMP ASSY, fuel, Gasoline engines, Refer to Eng-2 parts catalog

1шт.

37

629826R91

CABLE ASSY, fuel pump, Gasoline engines, For use with 631259R91 fuel pump assy

1шт.

38

PUMP ASSY, fuel, Gasoline engines, Refer to Eng-2 parts catalog

1шт.

39

1107679

MOTOR ASSY, cranking, For components see list of parts under details of cranking motor

1шт.

40

358986R1

CABLE CLIP

CLIP, cable harness, On cranking motor housing upper mounting bolt

1шт.

41

365584R1

CLIP

water temperature sending unit, On center and rear valve outer bolt

2шт.

42

393454R1

PLATE, voltage regulator mounting

1шт.

109084

NUT,1/4"-20, G5

4шт.

179797

BOLT,Hex, 1/4" - 20 x 1", Gr 5

4шт.

103319

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.
