Запчасти Case IH 403 (382) - CRANKING MOTOR, DELCO REMY, FOR D-282 AND D-301 ENGINES (55) - ELECTRICAL SYSTEMS

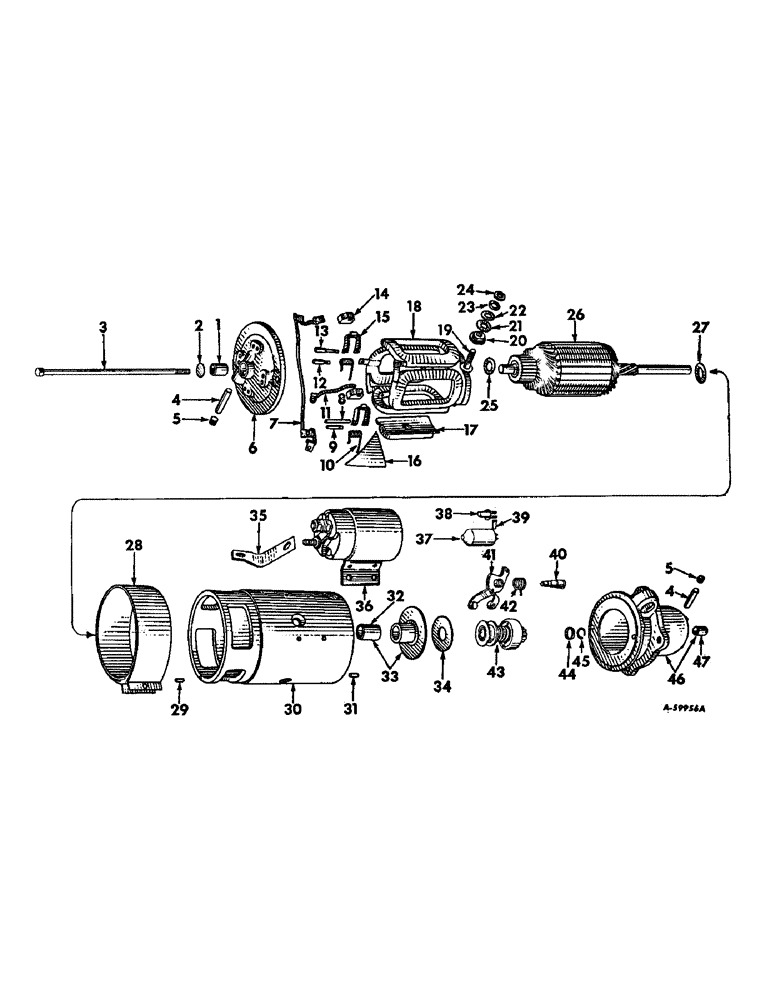

Схема запчастей Case IH 403 - (382) - CRANKING MOTOR, DELCO REMY, FOR D-282 AND D-301 ENGINES (55) - ELECTRICAL SYSTEMS
11
39
6
12
14
45
10
9
7
2
28
42
21
20
26
43
19
34
32
33
46
23
22
3
16
13
38
5
36
37
29
40
41
31
5
27
35
18
15
4
24
47
44
4
1
25
17
30

Артикул

Название

Примечание

Количество

1113098

X

MOTOR ASSY, cranking, 304490R91, Order cranking motor, 1113193

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 X 1-1/8 CAP SCREW

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

1

1872678

BUSHING

commutator end

1шт.

2

810819

PLUG

end

1шт.

3

1931812

BOLT

thru

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

4

R15023

WICK

commutator end and drive end

2шт.

5

103883

PIPE PLUG,Slotted, Headless, 1/8" NPT

1/8 C-Z slt-hdls pipe

2шт.

6

1937181

FRAME ASSY, commutator end, Composed of

1шт.

1872678

BUSHING

1шт.

812015

PIN

2шт.

809062

PIN

1шт.

812016

PIN

1шт.

817313

PIN

1шт.

817314

PIN

1шт.

810819

PLUG

1шт.

125947

STUD

1шт.

R15023

WICK

1шт.

7

1931777

CABLE

LEAD, brush jumper

1шт.

132892

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

10-32 x 1/4 C-Z slt-rd-hd mach

2шт.

120217

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

8

817314

PIN, brush holder stop

2шт.

9

817313

PIN, brush hinge

2шт.

10

1935316

VALVE SPRING

SPRING, brush

4шт.

11

1931771

CONNECTION

LEAD, brush ground

2шт.

490-1108

SCREW,Cross Pan Hd, #10-32 x 1/2"

10-32 x 1/2 C-Z slt-rd-hd mach

2шт.

19298R1

LOCK WASHER

WASHER, no. 10 cd-pltd med lock

2шт.

12

812015

PIN

brush holder stop

2шт.

13

812016

PIN

brush holder hinge

2шт.

14

A45153

BRUSH, COMMUTATOR

4шт.

171734

SHIELD

SCREW, 10-32 x 5/8 C-Z slt-pan-hd tap.

4шт.

15

1931773

BRACKET

HOLDER, brush

4шт.

16

1913534

FOAM INSULATION

INSULATOR, field coil

2шт.

17

1931784

SHOE, pole

4шт.

1843646

SCREW

pole shoe

4шт.

18

1931788

COIL SET, field

1шт.

19

1933879

TERMINAL CONNECTOR

terminal

1шт.

20

1931783

INSULATOR

BUSHING, terminal stud insulating

1шт.

21

1857268

INSULATING WASHER

WASHER, insulating terminal stud

1шт.

22

808790

WASHER, terminal stud, outside

1шт.

23

120381

WASHER

3/8 C-Z light lock, terminal stud

2шт.

24

805258

NUT

terminal stud, 5/32 thick

1шт.

24

120377

NUT,3/8" - 16, Gr 5

Terminal stud, 1/4 thick 3/8"-16, G5

1шт.

25

833602

WASHER

commutator end space

1шт.

26

1931797

ARMATURE

1шт.

27

820155

WASHER, space, Between center bearing and armature

1шт.

28

1880355

BAND W/SCREW, 132926, cover

1шт.

132926

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

10-32 x 1-1/4 C-Z slt-rd-hd mach

1шт.

29

809062

PIN, commutator end dowel

1шт.

30

NOT SERVICED SEPARATELY

1шт.

31

809583

PIN, drive end dowel

1шт.

32

820148

BUSHING

center bearing

1шт.

33

1931808

PLATE

W/BUSHING, 820148, center bearing

1шт.

132892

SCREW,Sl Rnd Hd, #10 - 32 x 1/4"

center bearing attaching

2шт.

1880781

WASHER

center brg attaching screw lock

2шт.

34

NLS

NO LONGER SERVICED

brake, Between center bearing and motor drive

1шт.

35

1935435

CONNECTOR

1шт.

36

1119778

IGNITION SWITCH

SWITCH ASSY, starting solenoid

1шт.

1916529

SCREW

solenoid starting switch attaching

4шт.

37

1932079

PLUNGER

1шт.

38

1927033

LINK, shift lever spacer

1шт.

132119

SCREW

10-32 x 5/8 C-Z slt-rd-hd mach

1шт.

131183

WASHER, no. 10 C-Z light lock

1шт.

39

1853305

PIN, shift lever

1шт.

112726

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

1шт.

40

1931807

SHAFT, shift lever

1шт.

41

1931776

LEVER

shift

1шт.

42

1922876

SPRING, shift lever

1шт.

43

1941157

MOTOR HOUSING

DRIVE ASSY, motor

1шт.

44

1928021

COLLAR

STOP, pinion

1шт.

45

1928022

SNAP RING

RING, pinion stop retainer

1шт.

46

1938409

HOUSING W/BUSHING, 1943628 plug, 125947 and wick, 1909560, drive

1шт.

47

1943628

BUSHING

drive end

1шт.
