Запчасти Case IH 403 (381) - CRANKING MOTOR, DELCO REMY, FOR C-263 ENGINE (55) - ELECTRICAL SYSTEMS

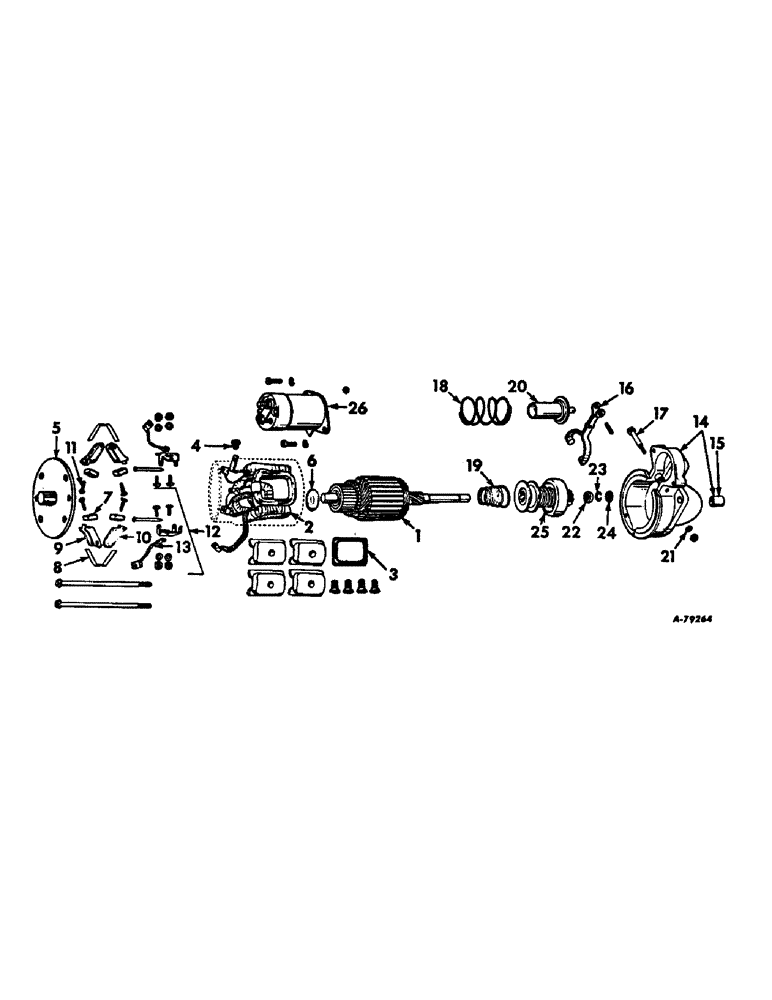

Схема запчастей Case IH 403 - (381) - CRANKING MOTOR, DELCO REMY, FOR C-263 ENGINE (55) - ELECTRICAL SYSTEMS
17
6
7
25
10
24
3
18
2
26
16
13
23
1
4
14
11
8
9
5
21
12
22
15
19
20

Артикул

Название

Примечание

Количество

1107679

MOTOR ASSY, cranking, 165477R91 12 volt

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

1

1932185

ARMATURE ASSY

1шт.

2

1935128

COIL

ASSY, field, 3 coils

1шт.

2

1935131

COIL

field, shunt

1шт.

3

1927853

FOAM INSULATION

INSULATION, field coil

1шт.

4

1935168

GROMMET

in field range

1шт.

5

1928966

FRAME

commutator end

1шт.

6

8189265

WASHER, commutator end spacing

1шт.

7

1906945

COMMUTATOR BRUSH

BRUSH

4шт.

8

1926622

VALVE SPRING

SPRING, brush

2шт.

9

1926617

BRUSH HOLDER

PACKAGE, ground brush holder

2шт.

10

1926618

HOLDER

PACKAGE, insulated brush holder

2шт.

11

1926648

SCREW, brush attaching

4шт.

12

1928015

BRACKET

KIT, brush holder support

2шт.

13

1926605

ELECTRICAL WIRE

LEAD, brush ground

2шт.

14

1955325

HOUSING ASSY, drive end

1шт.

15

1923907

BUSHING

drive end housing

1шт.

16

1932205

LEVER

shift

1шт.

17

1814529

STUD, shift lever

1шт.

18

1958679

SPRING

plunger return

1шт.

19

1932209

SEAL

SPRING, shift lever assisting

1шт.

20

1953041

PLUNGER

solenoid switch

1шт.

21

1953479

WASHER, shift lever stud sealing lock

1шт.

22

1927849

COLLAR

drive end pinion stop

1шт.

23

1927848

RING

drive end pinion stop ret snap

1шт.

24

1927850

COLLAR ASSY.

COLLAR, drive end spacing

1шт.

25

1937975

DRIVE

ASSY, motor

1шт.

26

1114287

SWITCH

ASSY, solenoid

1шт.

120622

NUT,#8-32

2шт.

124829

JAM NUT,Hex, 3/8" - 16, Gr 5

1шт.

121841

LOCK WASHER,#8

WASHER, LOCK, #8

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

1952427

GASKET

between switch and housing

1шт.

Выбрано товаров: 35
