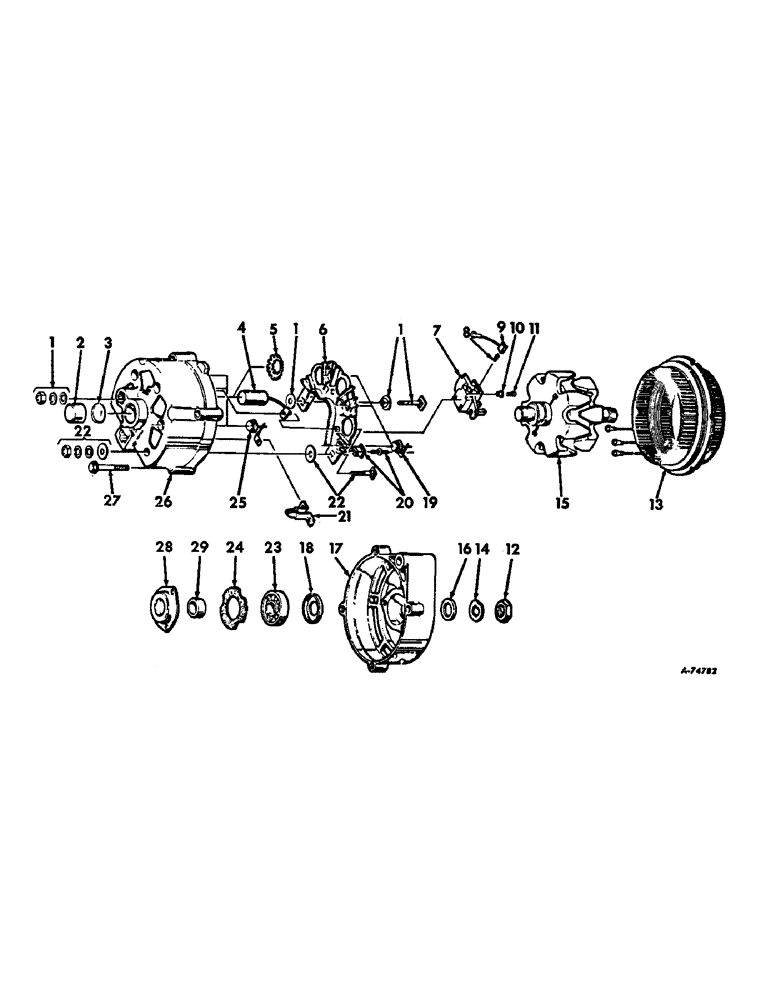

Запчасти Case IH 403 (380) - ALTERNATOR GENERATOR, DELCO REMY, FOR C-263 AND D-301 ENGINES COMBINE SERIAL NO. 9957 AND ABOVE (55) - ELECTRICAL SYSTEMS

1100750

SPARE PART ALTERNATOR GENERATOR ASSY, 393820R91, Consists of all unmarked parts plus those marked unit A

1шт.

1100791

GENERATOR

ALTERNATOR GENERATOR ASSY, 397091R91, Consists of all unmarked parts plus those marked unit B

1шт.

1

103805A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 55 ampere

1шт.

1

103805A1C

CORE-ALTERNATOR

Return Number

1шт.

1

1959833

TERMINAL CONNECTOR

TERMINAL W/NUTS & WASHERS, ground

1шт.

2

741326

BEARING, slip ring end roller

1шт.

1

103806A1R

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt 60 ampere

1шт.

1

103806A1C

CORE-ALTERNATOR

Return Number

1шт.

3

1959790

SEAL

RETAINER W/FELT, slip ring end, Unit A

1шт.

3

1961323

SEAL

RETAINER W/FELT, slip ring end, Unit B

1шт.

4

1959455

CAPACITOR

CAPACITOR

1шт.

1959523

SPARE PART WASHER, capacitor screw insulator

1шт.

5

1959390

SPRING

SPRING, condenser retaining, Unit A

1шт.

5

1960750

VALVE SPRING

SPRING, condenser retaining, Unit B

1шт.

6

1959828

PACKAGE

HEAT SINK ASSY

1шт.

7

1964682

HOLDER

HOLDER ASSY, brush and spring

1шт.

8

NOT SERVICED SEPARATELY, Order holder assy, 1964682

1шт.

9

NOT SERVICED SEPARATELY, Order holder assy, 1964682

1шт.

10

1959389

INSULATOR

INSULATOR, capacitor terminal screw

1шт.

11

1957501

SCREW

SCREW, brush holder attaching

2шт.

12

1911324

NUT

NUT, drive end shaft

1шт.

13

1959381

COIL

STATOR ASSY, Unit A

1шт.

13

1959531

STATOR

STATOR ASSY, Unit B

1шт.

14

1941978

WASHER

WASHER, drive end shaft

1шт.

15

1958565

ROTOR

ROTOR ASSY

1шт.

16

1959991

COLLAR

COLLAR, drive end outside spacer

1шт.

17

1959917

FUNNEL

FRAME, drive end

1шт.

18

1947344

SLINGER

SLINGER, drive end grease, Unit A

1шт.

19

1959829

DIODE

DIODE, positive, Unit A

3шт.

19

1964353

DIODE

DIODE, positive, Unit B

3шт.

20

1959834

TERMINAL STRIP

TERMINAL PACKAGE, diode junction

3шт.

21

NOT USED IN THIS APPLICATION

1шт.

22

1959832

TERMINAL STRIP

TERMINAL PACKAGE, battery

1шт.

23

954378

BALL BEARING

BEARING, drive end ball, Unit A

1шт.

23

904751

BEARING

BEARING, drive end ball, Unit B

1шт.

24

1912008

FELT

GASKET, bearing retainer plate

1шт.

25

1959830

SET

DIODE, negative, Unit A

1шт.

25

1964354

DIODE

DIODE, negative, Unit B

1шт.

26

1959827

FUNNEL

FRAME FRAME W/NEGATIVE DIODE, bearing, retainer & condenser, Unit A

1шт.

26

1969329

FUNNEL

FRAME FRAME W/NEGATIVE DIODE, bearing, retainer & condenser, Unit B

1шт.

27

1956975

BOLT

BOLT, thru

4шт.

28

1955494

PLATE

RETAINER ASSY, drive end bearing

1шт.

1956104

SCREW, attaching

3шт.

29

1963139

COLLAR CLAMP

COLLAR, drive end inside spacer

1шт.
