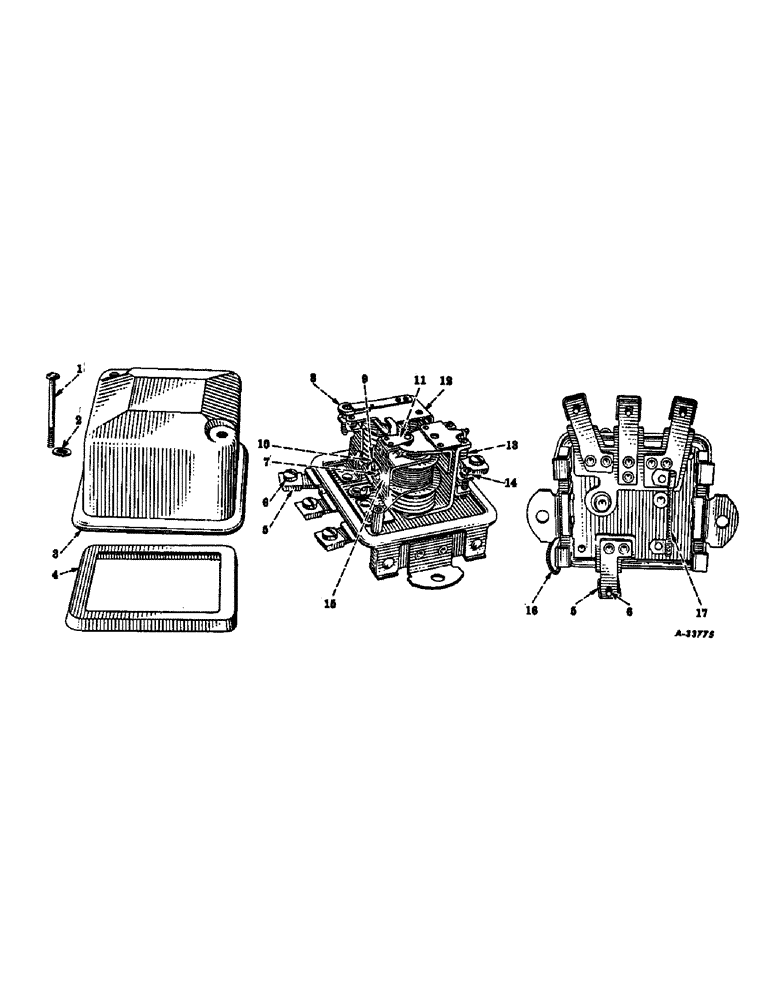

Запчасти Case IH 403 (377) - VOLTAGE REGULATOR, DELCO-REMY, FOR D-282 ENGINE (55) - ELECTRICAL SYSTEMS

1118999

REGULATOR

REGULATOR ASSY, voltage, 12 volt, 376122R91

1шт.

1

1927982

SCREW, cover attaching

2шт.

2

1922996

WASHER, cover attaching screw insulating

2шт.

3

1927980

COVER

1шт.

4

1927981

GASKET, cover

1шт.

5

1868137

CLAMP, terminal

4шт.

6

1864099

SCREW

terminal

4шт.

7

1878516

SCREW

current-voltage regulator contact attaching

2шт.

8

1912159

SCREW, cut-out relay armature adj

1шт.

9

1878507

WASHER, current-voltage regulator contact attaching screw insulating

2шт.

10

1878505

WASHER

current-voltage regulator contact attaching screw lock

1шт.

11

1878517

CONTACT AND SUPPORT, current-voltage regulator

1шт.

12

1878780

ARMATURE, cut-off relay

1шт.

454431

SCREW, cut-out relay armature

2шт.

192-15

LOCK WASHER,Helical Spring, #6, 0.145" ID, CST, ZND

WASHER, cut-out relay armature attaching screw lock

2шт.

13

1912176

SPRING, current-voltage regulator armature

1шт.

14

1922408

SCREW, current-voltage regulator armature adj

1шт.

15

1922599

INSULATOR, current-voltage regulator contact attaching screw

1шт.

16

1927975

LEAD, ground

1шт.

17

1910174

RESISTOR, F, Serial Range: terminal-ground

1шт.
