Запчасти Case IH 403 (374) - GENERATOR, DELCO-REMY, FOR C-263 AND D-301 ENGINES, COMBINE SERIAL NO. 9956 AND BELOW (55) - ELECTRICAL SYSTEMS

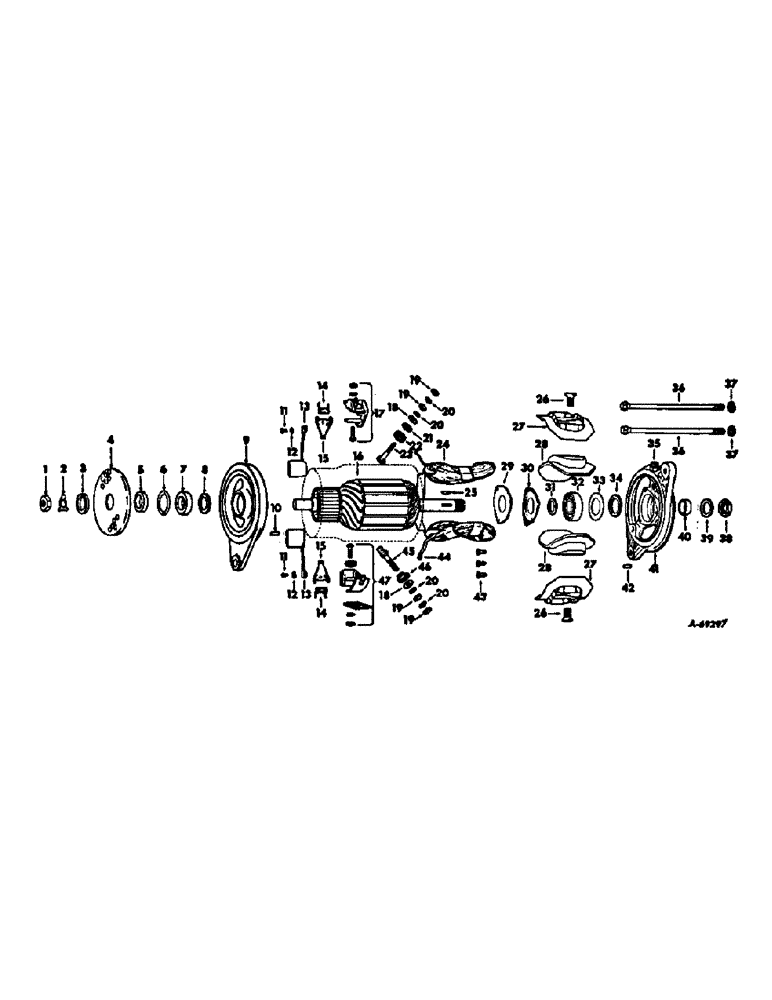

Схема запчастей Case IH 403 - (374) - GENERATOR, DELCO-REMY, FOR C-263 AND D-301 ENGINES, COMBINE SERIAL NO. 9956 AND BELOW (55) - ELECTRICAL SYSTEMS
33
36
31
47
18
39
5
19
23
27
30
21
16
14
28
6
29
11
19
36
34
20
3
37
20
15
25
20
14
2
32
12
28
26
24
44
45
15
40
4
43
13
10
7
18
9
8
35
37
13
38
17
1
20
46
19
19
11
12
22
41
24
27
42

Артикул

Название

Примечание

Количество

1100425

GENERATOR

GENERATOR ASSY, 379391R91 12 volt

1шт.

103815A1R

REMAN-GENERATOR

Generator; For N.A. only

1шт.

103815A1C

CORE-GENERATOR

Return number - For N.A. only

1шт.

1

1911324

NUT

NUT, commutator end shaft

1шт.

2

1913743

WASHER, commutator end shaft nut lock

1шт.

3

1913688

SPACER, commutator end shield

1шт.

4

1958832

SHIELD, commutator end

1шт.

5

1913689

COLLAR, commutator end shield

1шт.

6

1929959

RING, SNAP

SPARE PART CLAMP, commutator end bearing

1шт.

7

900529

PLATE

BEARING, commutator end

1шт.

8

809945

BUSHING

WASHER, commutator end spacing

1шт.

9

1959149

SPARE PART FRAME W/CLAMP AND PIN ASSY, commutator end

1шт.

10

809062

SPARE PART PIN, commutator end dowel

1шт.

11

131880

SPARE PART SCREW, brush lead attaching

2шт.

12

131044

LOCK WASHER

Lock, #6

2шт.

13

1932506

BRUSH, COMMUTATOR

BRUSH BRUSH ASSY

2шт.

14

1916324

VALVE SPRING

SPRING, brush

2шт.

15

1878183

ARM

ARM, brush

2шт.

16

1959147

SPARE PART ARMATURE ASSY

1шт.

17

1922288

HOLDER

HOLDER, ground brush

1шт.

18

1881409

WASHER

WASHER, terminal stud

2шт.

19

225-14112

NUT,#12-24

terminal stud

4шт.

20

1904661

LOCK WASHER

WASHER, terminal stud lock

4шт.

21

1858753

WASHER

WASHER, terminal stud insulating

1шт.

22

1885090

BUSHING

BUSHING, field terminal insulating

1шт.

23

1921860

STUD

STUD, field terminal

1шт.

24

1927700

COIL

COIL ASSY, field

1шт.

25

124545

WOODRUFF KEY,#5, 1/8" x 5/8", HT

WOODRUFF KEY, #5, 1/8" x 5/8", HT

1шт.

26

1843646

SCREW

SCREW, pole shoe

2шт.

27

1914491

INSULATOR, field coil

2шт.

28

1914618

SHOE, pole

2шт.

29

1911263

LARGE PLATE

PLATE, LARGE PLATE, drive end bearing retainer

1шт.

30

1912008

FELT

GASKET, drive end bearing retainer plate

1шт.

31

809945

BUSHING

WASHER, drive end space

1шт.

32

907503

BEARING

BEARING, drive end

1шт.

33

819104

WASHER

PLATE, drive end felt retaining

1шт.

34

809961

FELT

WASHER, drive end felt

1шт.

35

1880641

OILER

OILER ASSY, drive end

1шт.

823551

OILER WICK

1шт.

36

815018

BOLT, thru

2шт.

37

120638

LOCK WASHER

WASHER, thru bolt lock

1шт.

38

1911324

NUT

NUT, drive end shaft

1шт.

39

1888439

WASHER

WASHER, drive end shaft nut lock

1шт.

40

1858603

BUSHING

COLLAR, drive end space

1шт.

41

1871693

SPARE PART FRAME W/OILER AND WICK ASSY, drive end

1шт.

42

809593

PIN

PIN, drive end dowel

1шт.

43

1904370

AXLE

drive end retaining plate

3шт.

44

200382

SPARE PART CLIP, Serial Range: terminal-brush

1шт.

45

1921369

STUD

STUD, armature terminal

1шт.

46

1921362

BUSHING

BUSHING, armature terminal insulating

1шт.

47

1922289

HOLDER

HOLDER, insulated brush

1шт.

Выбрано товаров: 51
