Запчасти Case IH 403 (372) - GENERATOR AND CONNECTIONS, FOR C-263 ENGINE, COMBINE SERIAL NO. 9956 AND BELOW (55) - ELECTRICAL SYSTEMS

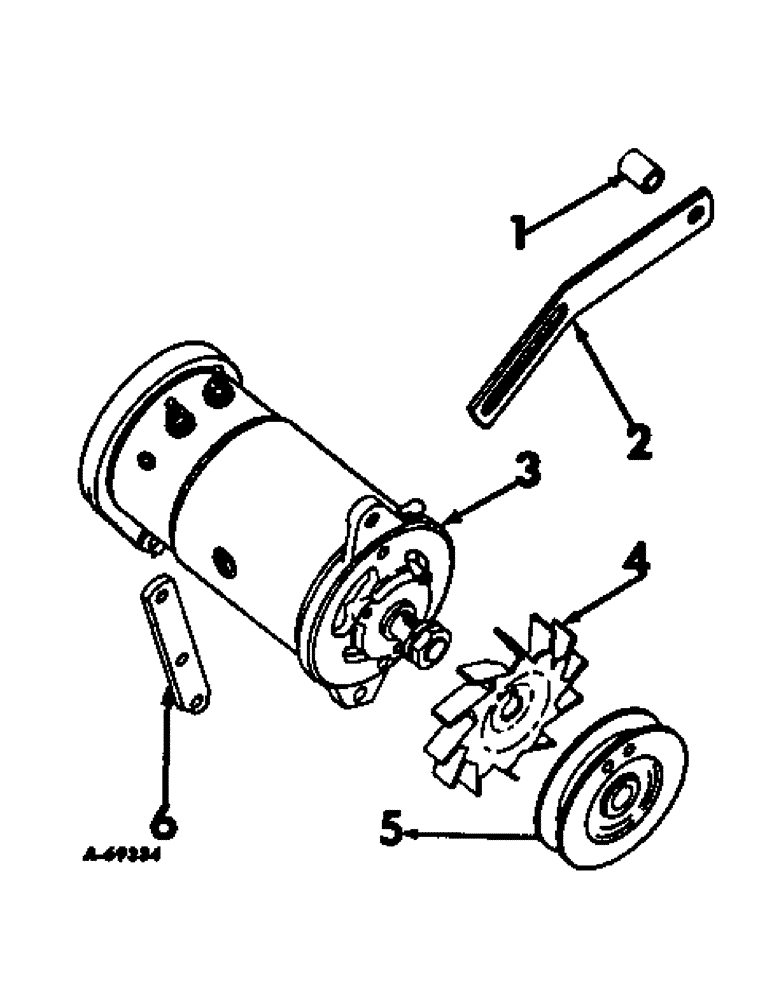

Схема запчастей Case IH 403 - (372) - GENERATOR AND CONNECTIONS, FOR C-263 ENGINE, COMBINE SERIAL NO. 9956 AND BELOW (55) - ELECTRICAL SYSTEMS
2
4
5
6
1
3

Артикул

Название

Примечание

Количество

1

SPACER, generator brace, LP gas, Refer to Eng-2 parts catalog

1шт.

2

BRACE, generator, Refer to Eng-2 parts catalog

1шт.

3

1100425

GENERATOR

ASSY, 379391R91, 12 volt, For components see list of parts under details of generator

1шт.

9635082

NUT,5/16" - 18, Gr 5

5/16 NUT

1шт.

179816

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

179819

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 5

1шт.

179818

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

557264R1

WASHER

GENERATOR BRACE WASHER

2шт.

4

90426H

FAN, generator

1шт.

5

304446R1

PULLEY, generator, Optional with 378349R1

1шт.

5

378349R1

PULLEY

generator, Optional with 304556R1

1шт.

6

BRACKET, generator, Refer to Eng-2 parts catalog

1шт.

Выбрано товаров: 13
